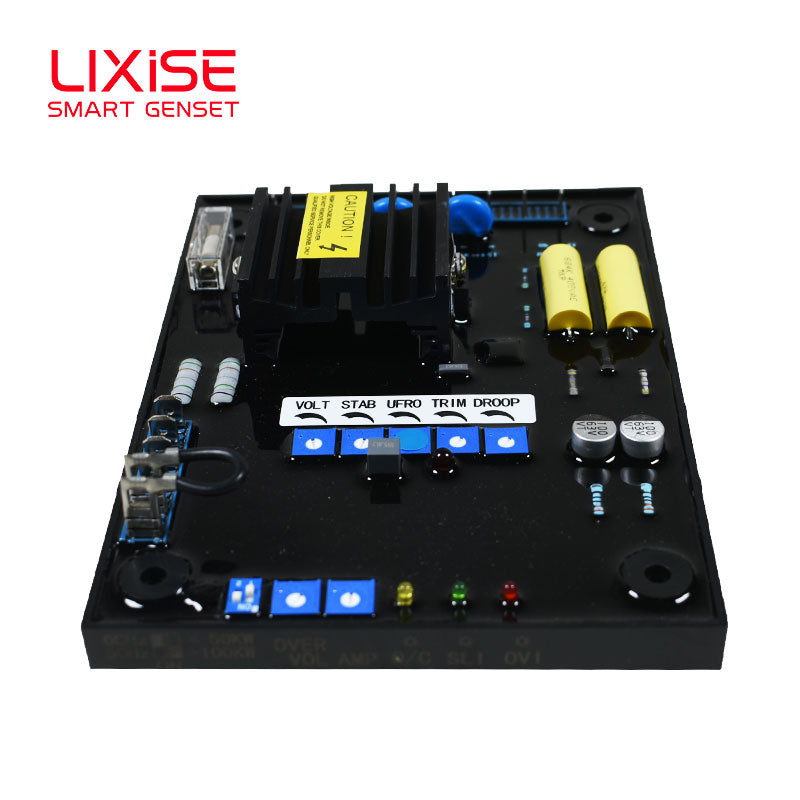

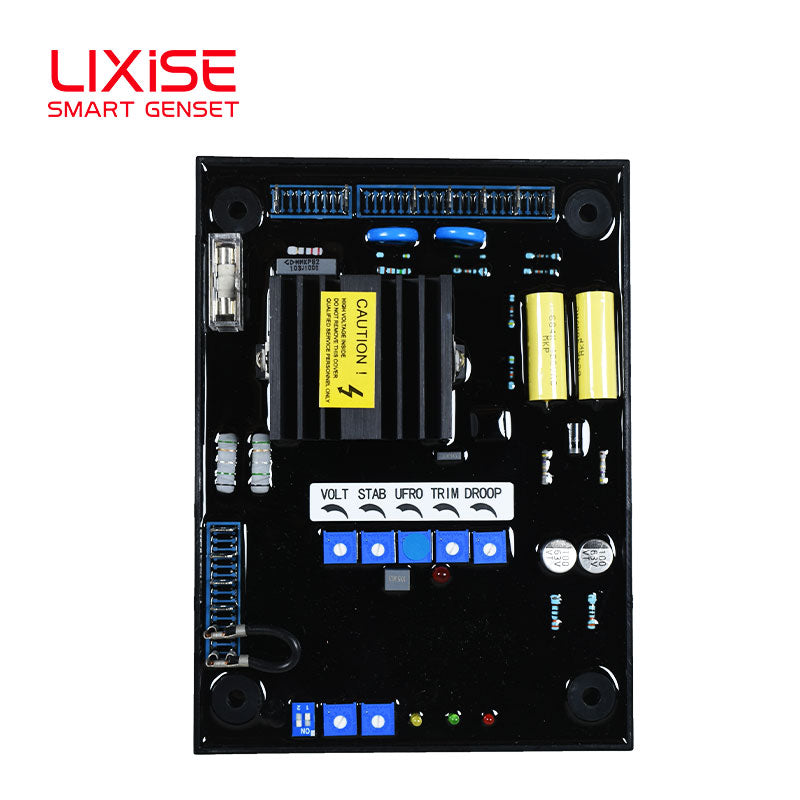

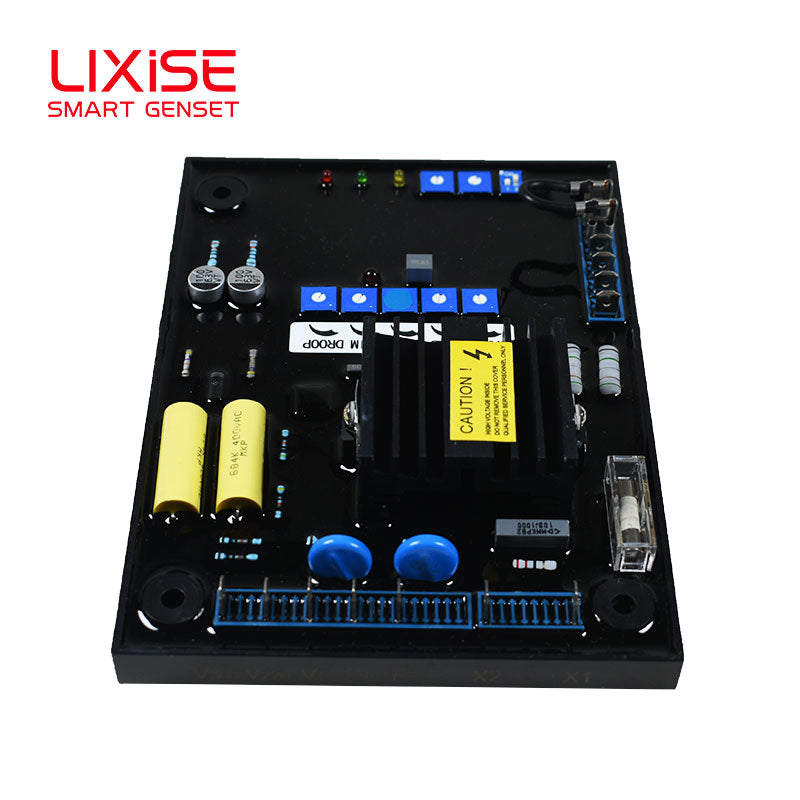

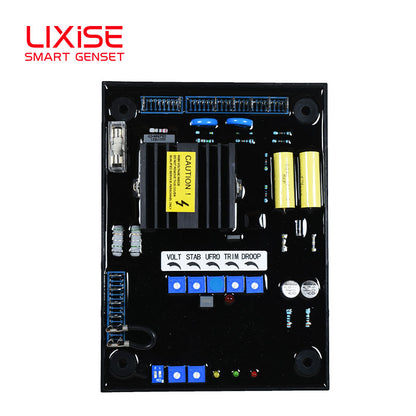

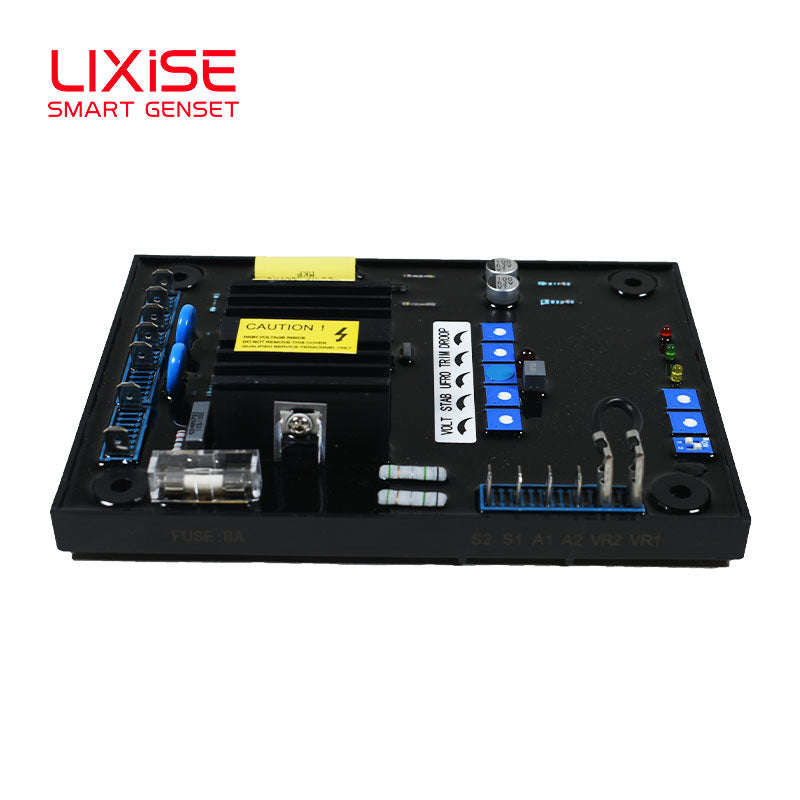

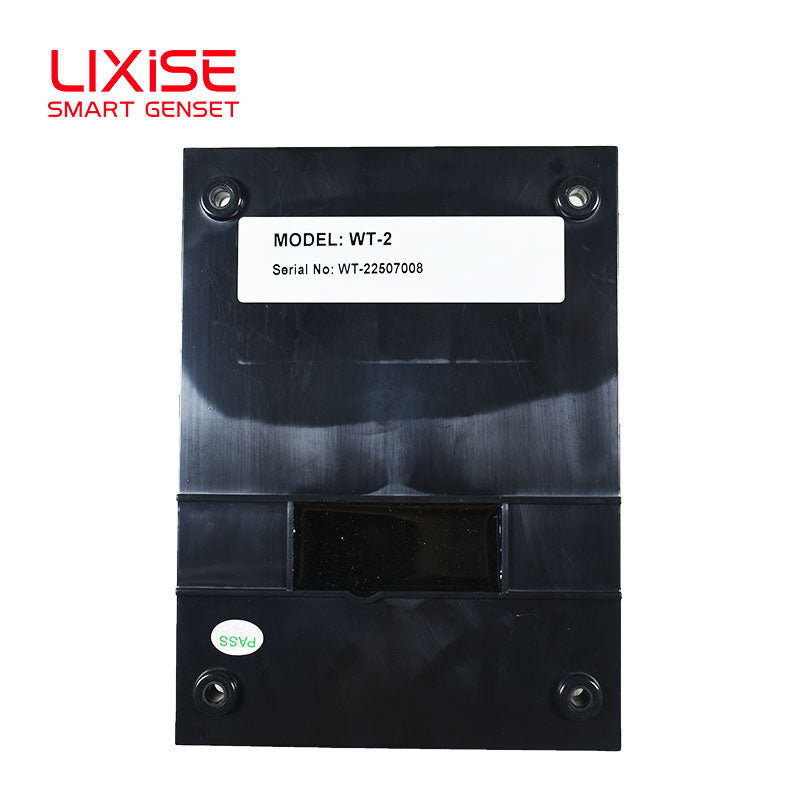

LIXiSE WT-2 Wide Voltage Detection AVR | -30℃~80℃ Shock & Vibration Resistant Alternator Regulator

LIXiSE WT-2 Wide Voltage Detection AVR | -30℃~80℃ Shock & Vibration Resistant Alternator Regulator

$46.60 USD
$46.60 USD
Sale Sold out
Shipping calculated at checkout.

WT-2 | High Precision Industrial Automatic Voltage Regulator

Product Overview

LIXiSE WT-2 is a heavy-duty industrial automatic voltage regulator built for single-phase brushless generator sets. With ultra-precise voltage control, rapid dynamic response, complete parallel operation function and outstanding environmental adaptability, this AVR delivers stable excitation output under severe temperature, vibration and impact conditions, widely adopted for commercial and industrial generator equipment.

Core Electrical Specifications

  1. DC Excitation Output

    Max continuous current: 8A (90 Vdc @220Vac input)

    Max transient current: 10ADC, lasts within 10 seconds

    Minimum resistance of exciter winding: 8Ω
  2. AC Power Input

    Input voltage: 180~250Vac, 50/60Hz

    Max power capacity: 1000VA under 240Vac input

    Power consumption: 5VA (normal), max 40W peak
  3. Voltage Detection & Regulation
  • 220V system: 180~250Vac detection, 180~300Vac adjustable range
  • 400V system: 350~480Vac detection, 350~480Vac adjustable range

    Voltage regulation accuracy: ±1%

    Voltage temperature drift: ＜0.05%/℃

    Response time: 1.5 seconds

    Automatic voltage build-up: Starts at residual magnetism voltage 5Vac, 25Hz

Parallel Operation Function

Equipped with CT interface matching standard 5A current transformer. Droop control adjustable from 0~6% under 0.8 power factor, enabling stable parallel running of multiple generator units.

Excellent Environmental Resistance

  • Working temperature range: -30℃ ~ +80℃
  • Vibration resistance: 12Gs (5~26Hz), 0.036 inch amplitude (27~52Hz), 5.0Gs (53~1000Hz)
  • Shock resistance: 20Gs impact load on three orthogonal planes
  • Net weight: 0.62kg

Core Advantages

  • Ultra-low temperature drift design ensures steady output in high & low temperature environments
  • Fast 1.5s response quickly compensates voltage fluctuation during sudden load changes
  • Dual 220V/400V system compatibility, wide adjustable voltage range for diverse generator models
  • Complete parallel droop control meets multi-unit genset power supply requirements
  • Superior shock and anti-vibration structure adapts mobile, marine and construction power equipment
  • Automatic residual magnetism voltage build-up avoids manual magnetization operation

Application Scenarios

Perfect matching accessory for single-phase brushless generator sets, suitable for industrial standby power, engineering transport vehicles, marine generators, communication power supply equipment and other harsh working condition power systems.
