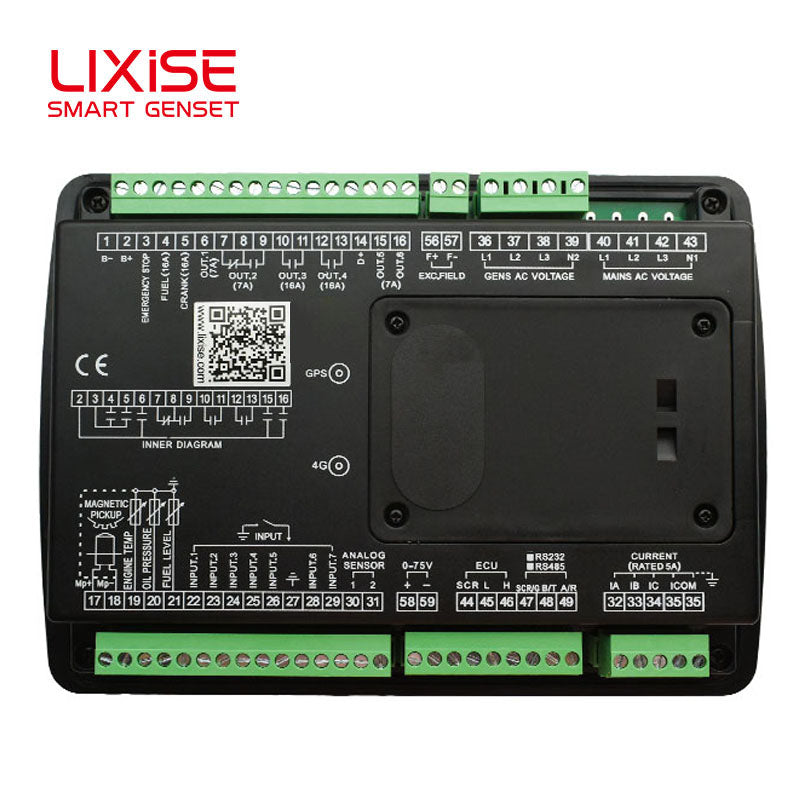

LIXiSE LXC6810 Digital Intelligent Networked Single Engine Remote Monitoring Controller

Product Overview

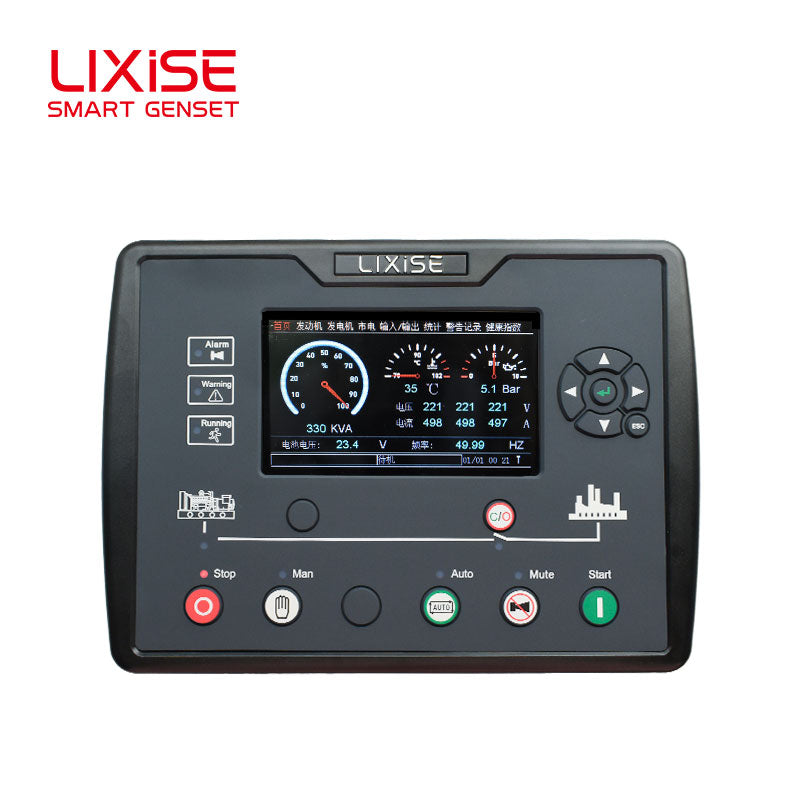

The LXC6810 controller integrates digital, intelligent and network technologies, dedicated to automatic remote monitoring systems for single engines. Fitted with a large TFT color LCD screen and brand-new original pointer-digital hybrid UI, it displays various fault states at the same time and performs effective protective shutdown when the generator set runs abnormally.

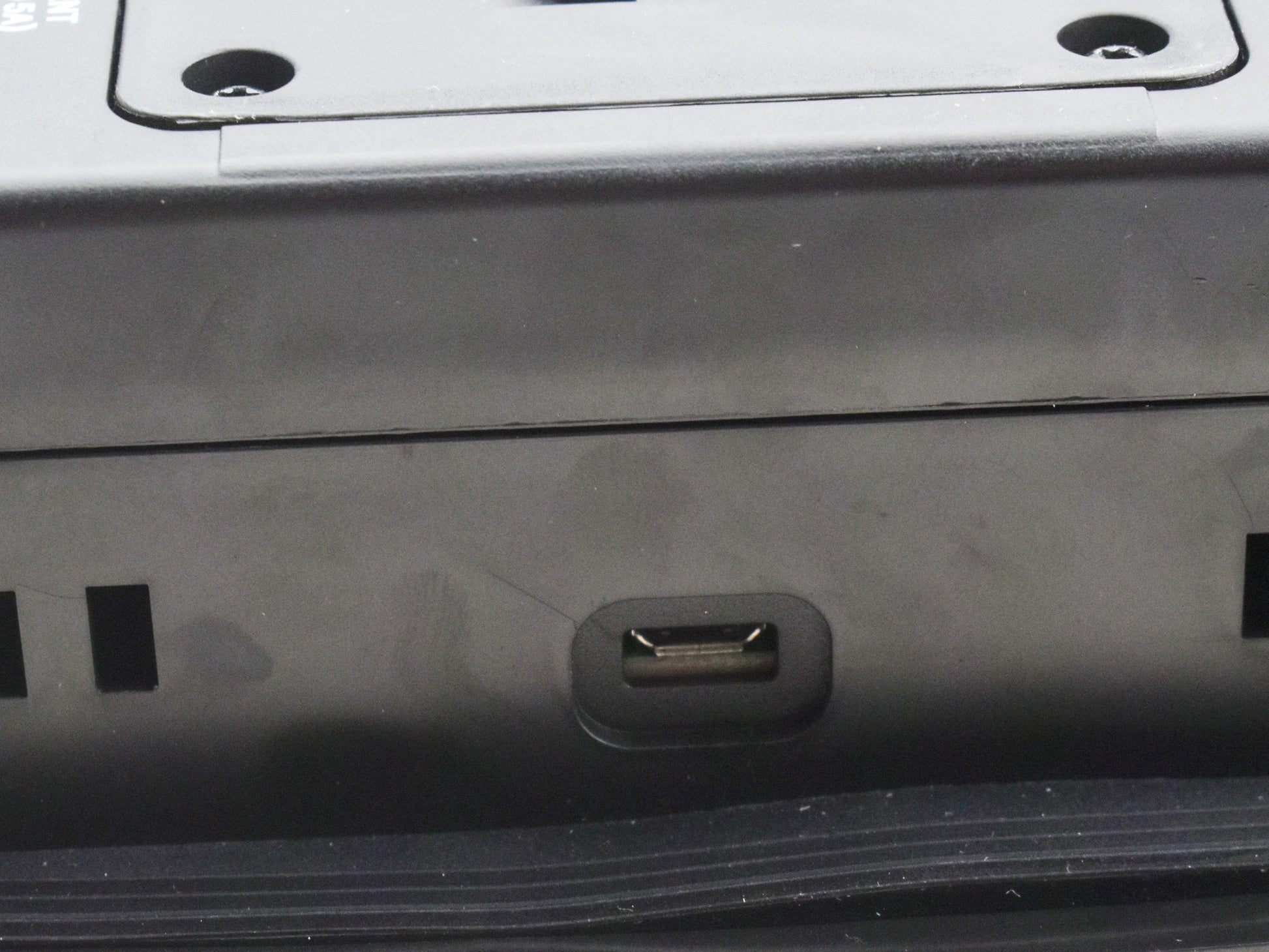

All parameters can be adjusted directly on the controller panel, or remotely set and monitored by PC via USB, RS485 or built-in 4G network. It is widely applicable to automation systems of all types of generator sets, fire water pumps and air compressors. A core highlight is that it supports automatic unit start and stop triggered by remote signals for single-engine unattended operation.

Superior Working & Communication Performance

1. Ultra-wide operating temperature range of -50℃ ~ 80℃, maintaining stable operation in harsh weather and severe environments.
2. Built-in hidden 4G antenna, enabling users to operate gensets remotely via mobile phones and manage multiple units uniformly through cloud platform.

Human-Machine Interaction Highlights

1. Large TFT color LCD screen with built-in Chinese, English, Russian and Spanish; customized language packages can be developed per customer demands.
2. Exclusive original UI combining analog pointer meter and digital readout, integrating dynamic visual effect and accurate data display.
3. Multi-level classified setting menus for fast and convenient parameter configuration.
4. Customizable manufacturer logo displayed on the power-on boot screen.
5. Clear real-time status display of input & output ports for quick troubleshooting.

Powerful Practical Functional Modules

1. 200 records of startup and shutdown logs, storing accurate time points of each unit start and stop.
2. Built-in real-time clock, supporting 3 groups of scheduled maintenance reminders.
3. Advanced black box fault recorder, which records full operating data 1 minute before fault shutdown to quickly locate failure causes, including oil pressure, coolant temperature, voltage, current, power and other key parameters.
4. Installment payment management function to solve the industry pain point of equipment payment arrears. Users can preset payment cycles via supporting software; the controller will lock the unit automatically when overdue. After full payment, an unlock code will be generated to restore normal operation, and remote lock/unlock via 4G cloud is also available.

All-in-One IoT Cloud Management Solution

This complete cloud service solves enterprise troubles including payment arrears, high operating costs, liability disputes and out-of-control distributed gensets. The solution consists of genset controller, wireless transmission module, cloud server and multi-terminal access devices (mobile APP, PC client, large display screen). It connects to the Internet via 2G/4G wireless signal, realizing whole-lifecycle centralized asset management of generator sets based on IoT technology.

Mechanical Dimensions

• Overall Size: 210mm × 152mm × 48mm
• Panel Cutout Size: 186mm × 141mm
