LIXiSE LXC6610BC Diesel Generator Controller USB RS485 Remote Monitoring Genset Control Unit
LIXiSE LXC6610BC Diesel Generator Controller USB RS485 Remote Monitoring Genset Control Unit
Regular price
$123.30 USD
Regular price
Sale price
$123.30 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
Overview
The LXC6610BC power plant automatic controller is a high-reliability monitoring solution designed for single diesel and gas generator set automation systems. Powered by a 32-bit ARM microprocessor, it delivers precise parameter measurement, automatic genset start/stop, full alarm protection, and complete three-remote (remote measurement, remote signaling, remote control) functions. Featuring a 240*128 backlit LCD display, multi-language support, flexible parameter adjustment, and industrial-grade protection, this controller offers stable performance, compact structure, and simple wiring. It is widely used for generator sets and fire water pump automation systems worldwide.
Core Features
-
Average Load Rate Monitoring: Real-time load rate calculation continuously tracks genset operating load and effectively prevents overload operation to protect the engine and alternator.
-
Customizable Boot Interface: Users can customize the startup screen with company logo, brand name, contact information, and slogans for personalized branding and project customization.
-
Installment Password Management: Dual-level password authority system supports equipment installment lock and standardized genset management for rental and sales scenarios.
-
Multi-Group Maintenance Reminder: Automatically accumulates total running hours and supports 3 independent maintenance cycles. Users can set warning or shutdown actions when maintenance deadlines are reached.
-

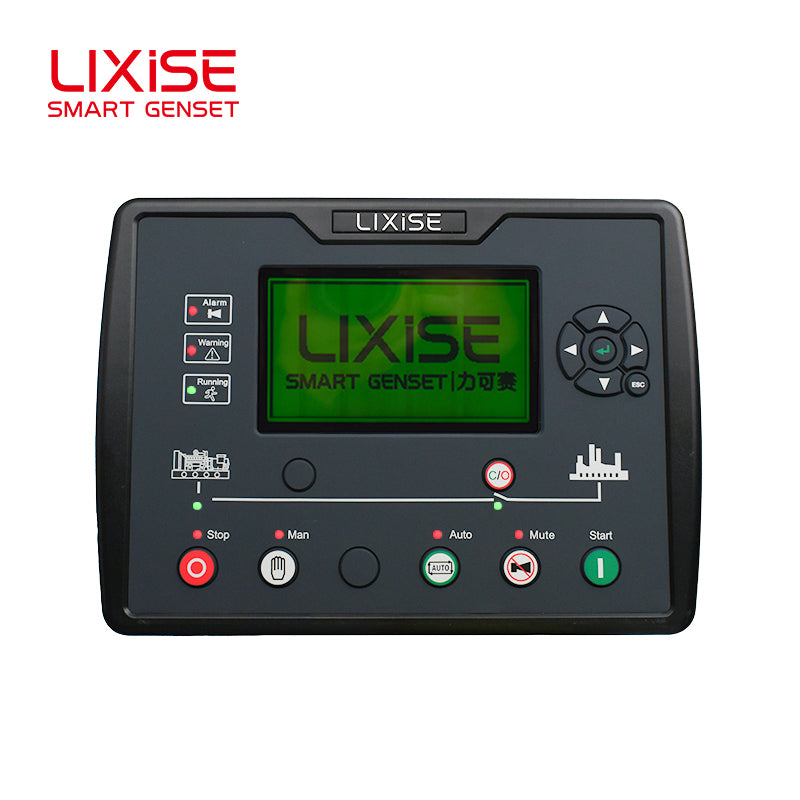

240*128 Single-Page LCD Display: High-definition backlit LCD shows almost all operating data on one single page, eliminating frequent page switching and improving on-site inspection efficiency.
-
Multi-Language Support: Built-in Chinese, English, Russian, and Spanish language packages to adapt to global operation requirements.
-

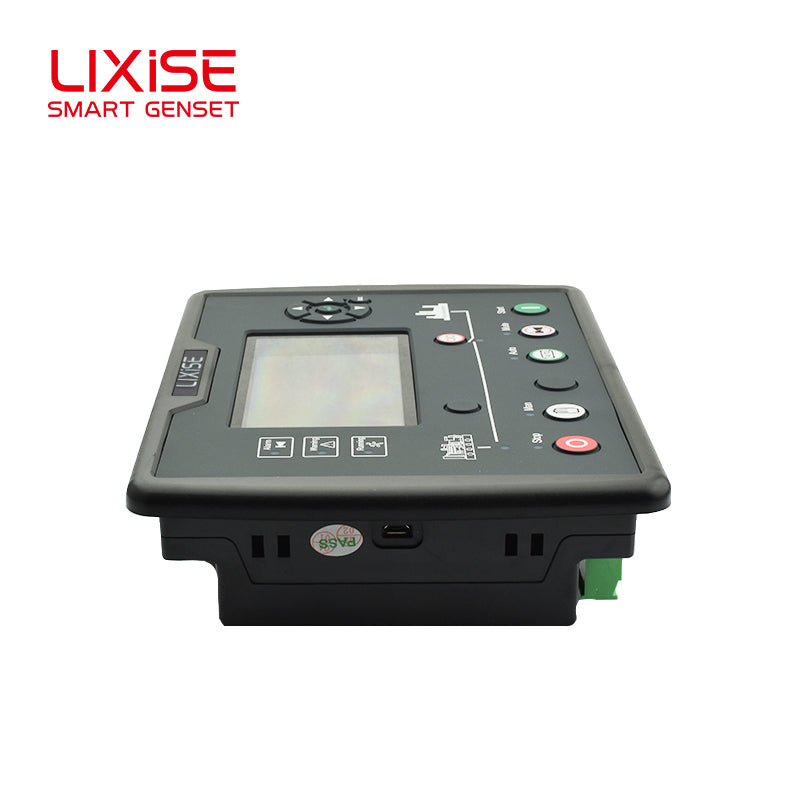

Plug-and-Play USB Debugging: Standard USB interface allows fast connection with PC for parameter modification, program upgrade, and data export with zero complicated configuration.
-
200 Fault History Records: Stores up to 200 fault logs and records real-time oil pressure, water temperature, voltage, current, power and other key data of 25 fault moments for accurate failure analysis and quick maintenance.
-
Programmable Timed Exercise Run: Built-in real-time clock supports 2 groups of customizable automatic timing run schedules to keep standby gensets in good condition.
-
Complete Mains Abnormality Alarm: Detects and alarms mains overvoltage, undervoltage, overfrequency, underfrequency, phase loss, and reverse phase sequence to avoid abnormal grid damage.
-
Two-Level User Permission: Separates administrator and operator authority to prevent unauthorized parameter modification and misoperation.
Hardware & Performance Advantages
Adopting advanced 32-bit ARM single-chip architecture, the LXC6610BC features highly integrated hardware, strong anti-interference ability, and extremely stable operation in harsh industrial environments. 99% of operational parameters can be directly set via the front panel, while full parameter calibration is available through USB, RS232, and optional RS485 interfaces. All settings are permanently saved in internal FLASH and EEPROM memory without data loss after power failure.

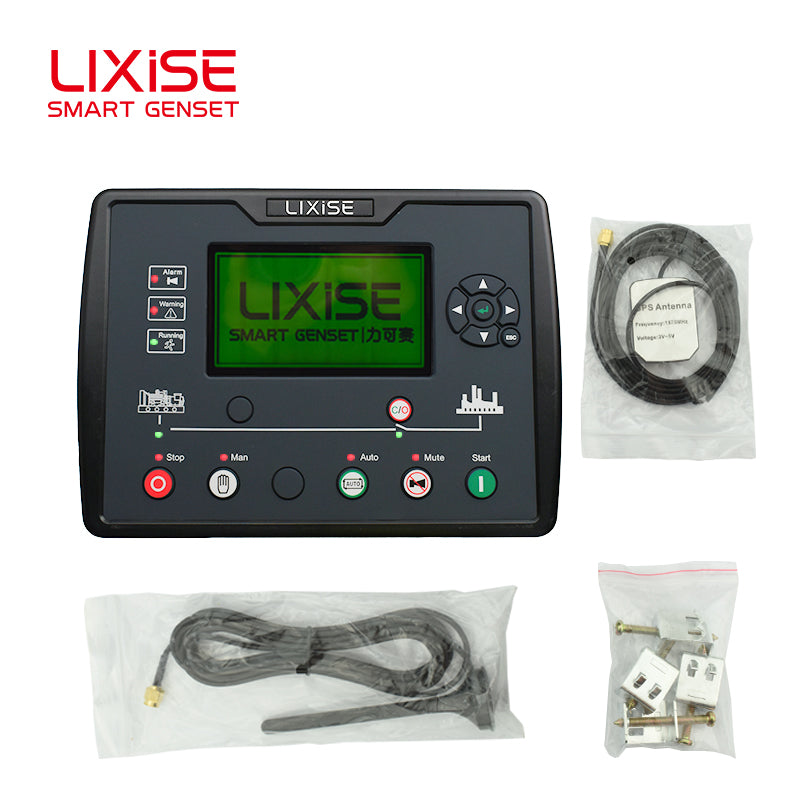

Based on standard MODBUS protocol, the controller realizes professional three-remote functions. It supports intelligent SMS alarm, automatically sending fault notifications to up to 5 preset mobile numbers. Users can remotely query genset status and control start/stop via SMS. With external LXI680 GPRS module and WIFI connection, it supports cloud IoT remote monitoring, enabling global network-based device management and fault analysis.
Wide System Compatibility

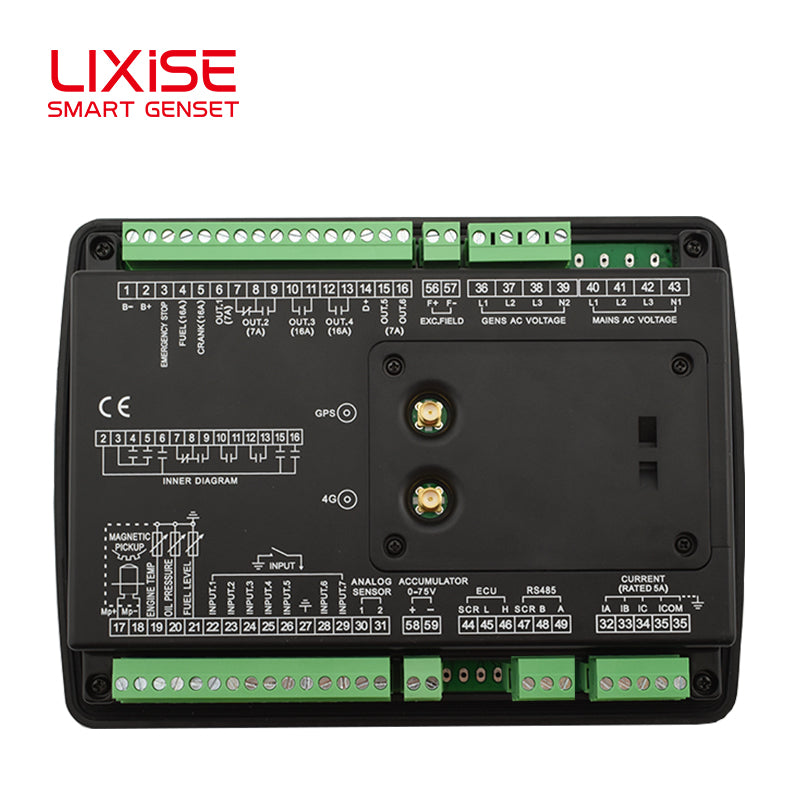

The controller is compatible with global 50Hz/60Hz power systems, supporting 3-phase 4-wire, 3-phase 3-wire, 1-phase 2-wire, and 2-phase 3-wire (120/240V) power modes. It fully collects and displays mains and generator three-phase voltage, current, phase sequence, frequency, active/reactive power, power factor, total energy, and all engine sensor data.
It provides layered protection logic: mains abnormalities trigger warning only; generator overvoltage, undervoltage, overfrequency, underfrequency, overcurrent, phase loss, and reverse phase sequence trigger both warning and automatic shutdown protection. It reserves 3 analog sensor ports for temperature, oil pressure and liquid level, with multiple default sensor curves and fully customizable curve parameters.
Control & Output Configuration
The LXC6610BC supports automatic start/stop and ATS switch control for diesel and gas generator sets. When multiple alarms occur, the screen automatically displays warning information in rotation for easy troubleshooting. All outputs are relay-driven; main outputs adopt 16A high-power relays, with 3 additional passive relay outputs to meet complex engineering control demands.

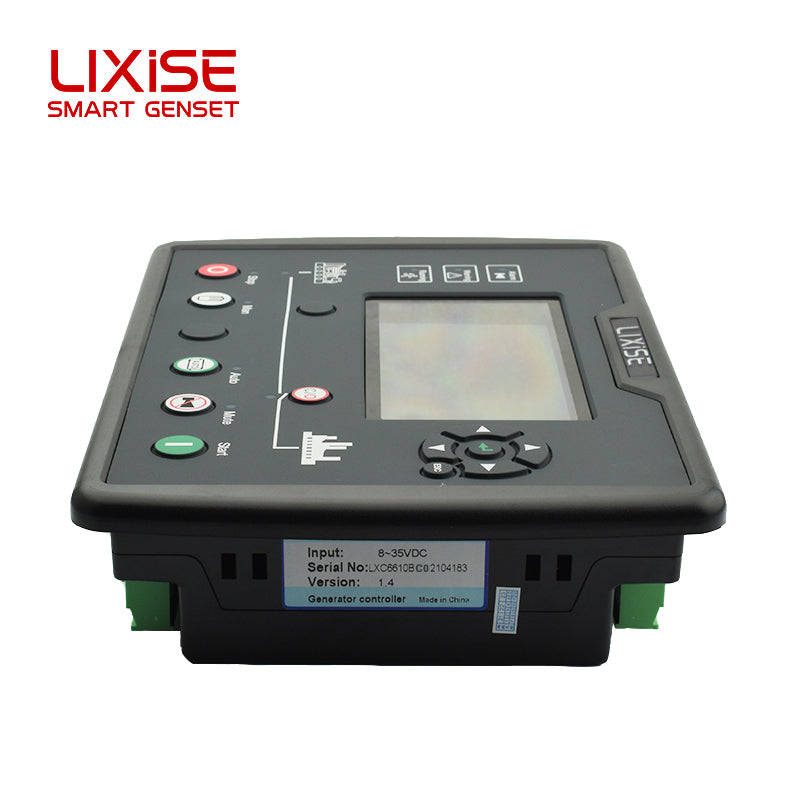

It supports multiple startup conditions including speed signal, oil pressure, generator voltage, and charger voltage, adapting to various special working scenarios. The ultra-wide DC 8~35V power supply ensures stable operation for 3 seconds under instantaneous ultra-low cranking voltage during engine startup.
The controller supports dual usage modes: full automatic genset control or pure indicator mode with only alarm display and no relay action, suitable for fire pump units and general power monitoring equipment.
Advanced Intelligent Technology
-
Multi-Mode Remote Monitoring: Supports SMS, WIFI, and GPRS cloud remote management, breaking geographical limitations for real-time data transmission and remote device diagnosis.
-
Patented Black Box Recording: Second-level full data playback before and after faults, supporting accurate remote fault location and rapid on-site maintenance.
-
Intelligent Early Warning System: Built-in 230+ fault models and intelligent fuzzy reasoning algorithm realize deep health monitoring and complex fault prediction beyond traditional basic alarms.
-
Visual Remote Monitoring Support: Compatible with remote display terminal to realize real-time video monitoring of genset operating status.
Industrial-Grade Structure & IP55 Protection

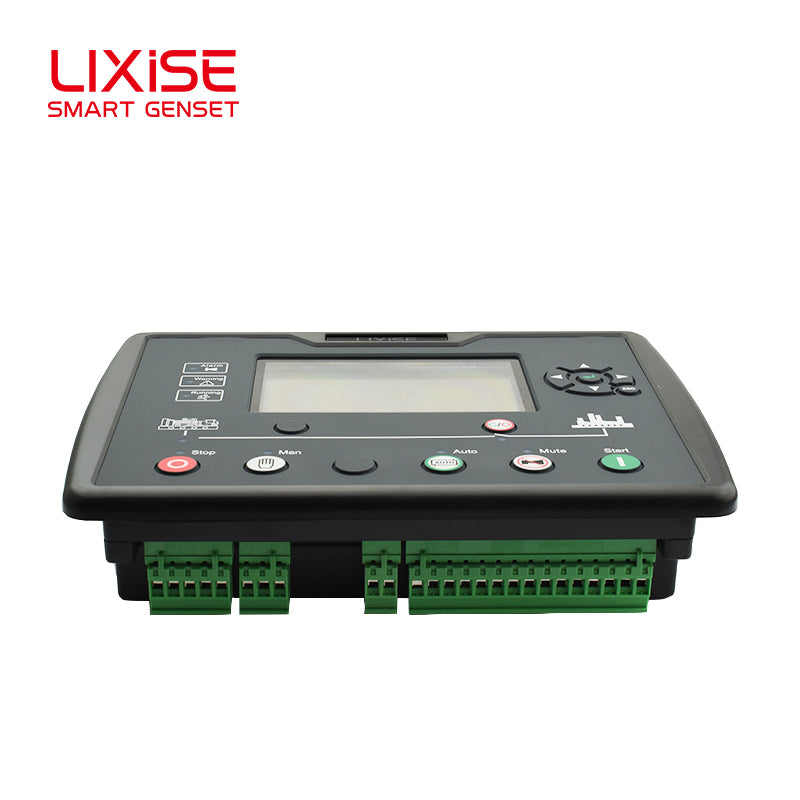

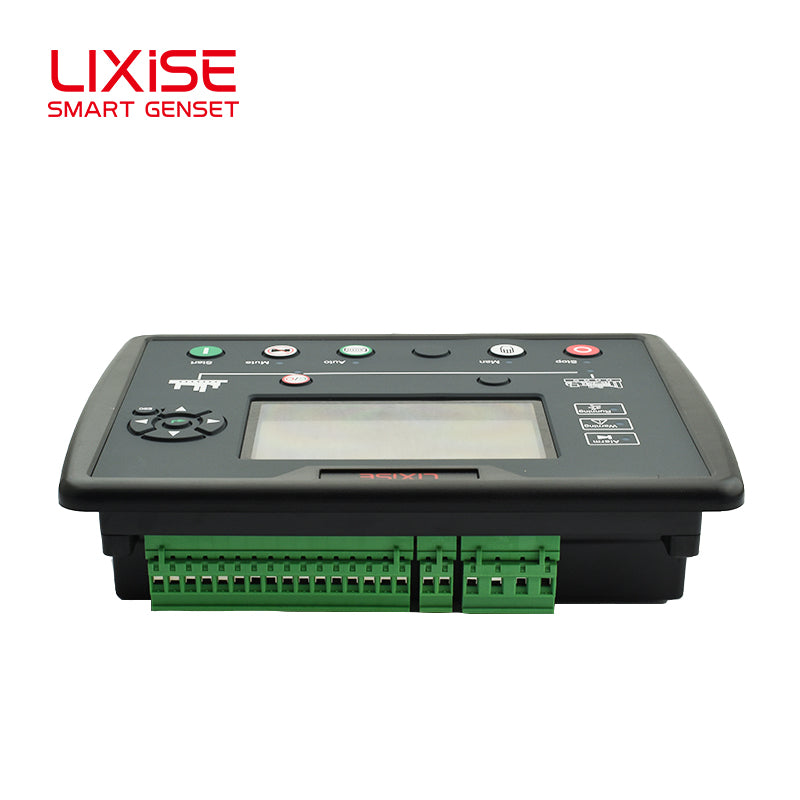

Equipped with rubber sealing structure between panel and housing, the LXC6610BC reaches IP55 waterproof and dustproof grade. The screen adopts hard acrylic material for excellent scratch and wear resistance. The silicone buttons feature strong high and low temperature resistance and waterproof performance. The flame-retardant ABS modular housing with pluggable terminals and embedded installation design ensures compact structure, simple wiring, and convenient installation for long-term outdoor and industrial applications.
