LIXiSE LXC6610BCAN-4G Built-in Genset Controller | Isolated CAN J1939 Auto Control Panel for Medium & Large Rental Gensets

Product Overview

LXC6110CAN is an intelligent automation controller specially designed for single diesel & gas generator sets. Adopting high-performance 32-bit ARM microprocessor and standard CAN bus communication technology, it realizes automatic start/stop of gensets, high-precision electrical and engine parameter measurement, comprehensive fault alarm protection as well as remote three-remote functions (remote measuring, remote signaling, remote control).

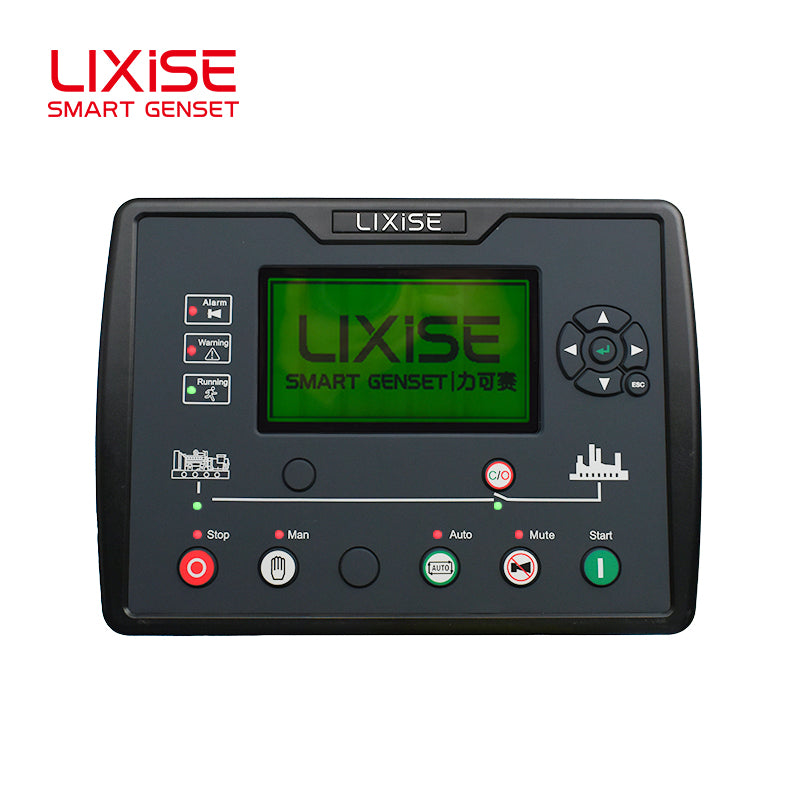

Equipped with a 240*128 backlit LCD graphic display, the unit supports multi-language operation including Chinese, English, Russian and Spanish. Most core operating data can be displayed on a single screen without frequent page switching for easy viewing. All configurable parameters can be adjusted directly on the front panel, or calibrated remotely via USB, RS485 and CAN bus by PC. Featuring compact modular structure, pluggable terminals and high operational stability, this controller is widely applied to generator sets, fire water pump units and industrial power equipment.

Core Features

1. Real-time Average Load Calculation Monitors real-time genset load rate to prevent long-term overload operation and extend unit service life.
2. Customizable Startup Interface Supports custom upload of company logo, enterprise name, contact information and brand slogans for brand personalized display.
3. Installment Password Management Function Built-in password authorization system to realize installment lock and management of generator equipment.
4. Multi-cycle Maintenance Reminder Automatically accumulates total running hours, supports 3 groups of maintenance cycle settings, and triggers reminder alarm or shutdown when maintenance period expires.
5. 240*128 Large Backlit LCD Screen Single-screen integrated display of all critical operating data, eliminating frequent page flipping for intuitive observation.
6. Multi-language Optional Interface Supports Chinese, English, Russian, Spanish and other mainstream global languages.
7. Plug-and-Play USB Debugging Port Fast connection with computer for on-site parameter calibration, program upgrade and data export.
8. 200 Historical Fault Records with Black Box Function Stores up to 200 fault logs, capturing real-time voltage, current, oil pressure, water temperature and power data at the moment of failure to facilitate quick troubleshooting.
9. Real-time Clock & Scheduled Auto-test Run Programmable 2 groups of automatic weekly/monthly test operation cycles to keep standby gensets in good condition.
10. Complete Mains & Generator Fault Protection Detects mains overvoltage, undervoltage, overfrequency, underfrequency, phase loss and phase reversal with early warning; provides genset shutdown protection against overcurrent, abnormal voltage/frequency, phase loss and reversed phase sequence.
11. Dual-level User Permission Management Two independent access identities to distinguish operator and administrator authorities for parameter modification authority control.

Hardware & Communication Advantages

• 32-bit ARM MCU with highly integrated hardware circuit, greatly improving overall stability and anti-interference capacity.
• All parameters stored in internal FLASH & EEPROM, no data loss after power failure. 99% parameters adjustable directly on front panel for convenient field debugging.
• Standard communication interfaces: USB & RS232 as standard, RS485 and CAN bus as optional; supports Modbus protocol to realize full three-remote control.
• Built-in SMS alarm module function: automatically sends fault alerts to 5 preset mobile numbers; supports remote genset status query & unit start/stop via SMS.

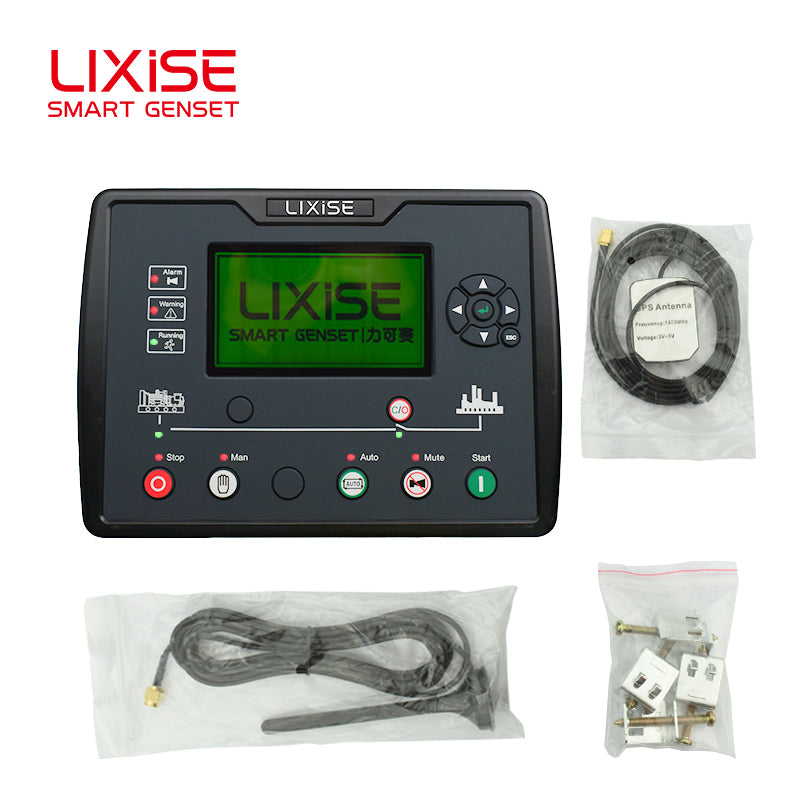

• Compatible with optional LXI680 GPRS module for IoT cloud remote monitoring, realizing global real-time data access under network coverage.

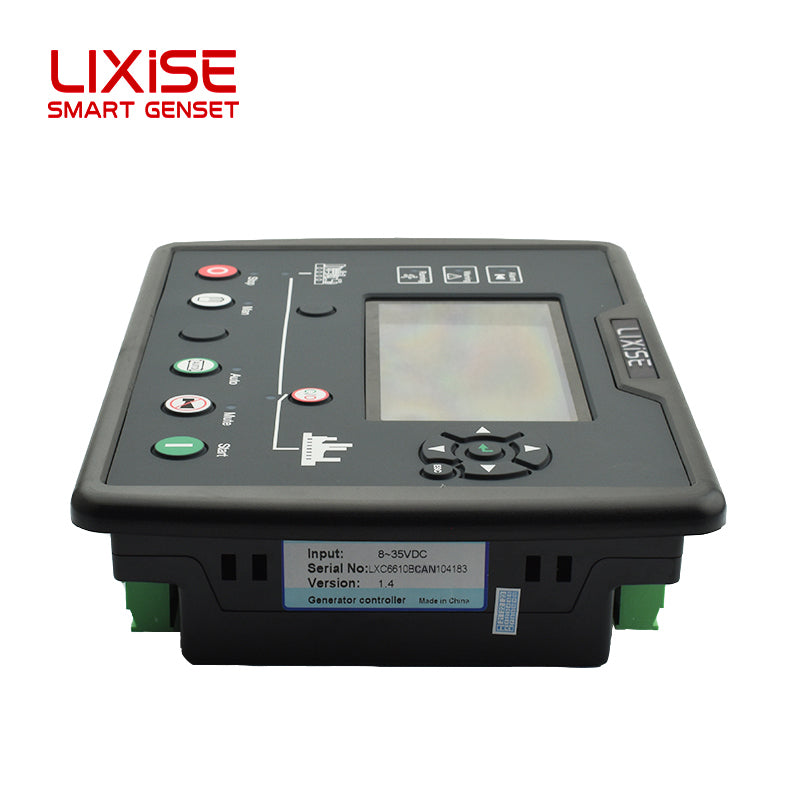

• Wide power supply range: DC 8~35V, keeps stable operation for 3 seconds under instantaneous ultra-low voltage during cranking.
• Wide voltage system compatibility: fits 3P4W, 3P3W, 1P2W, 2P3W (120/240V), 50/60Hz power systems.

Measurement & Sensor Functions

Collects and displays complete electrical data: 3-phase voltage, 3-phase current, phase sequence, frequency, active/reactive power, power factor and cumulative electric energy. Supports 3 standard analog sensors (coolant temperature, oil pressure, liquid level); multiple standard sensor curves pre-stored, free to customize sensor characteristic curves.

Control & Output Specifications

• Supports automatic start/stop of diesel & gas gensets, ATS automatic switching & breaker closing/opening control. Multiple startup trigger conditions available: speed sensor, oil pressure, charging voltage and generator voltage.
• All outputs are relay outputs; main control relays adopt 16A high-current relays, plus 3 passive relay outputs to meet complex engineering matching demands.
• Multi-warning simultaneous display: multiple fault alarms circulate on screen for easy fault sorting.

Mechanical & Environmental Design

• IP55 waterproof housing with built-in rubber sealing ring between panel and main body.
• Wear-resistant acrylic hard screen protector, scratch-resistant and durable.
• Silicone keypad panel, outstanding high & low temperature resistance and water resistance.

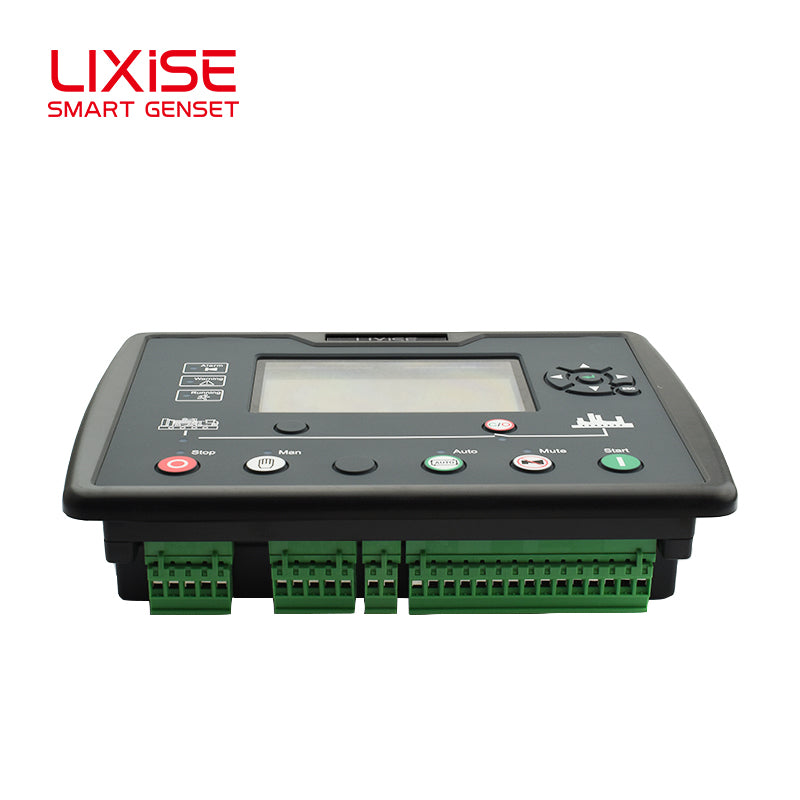

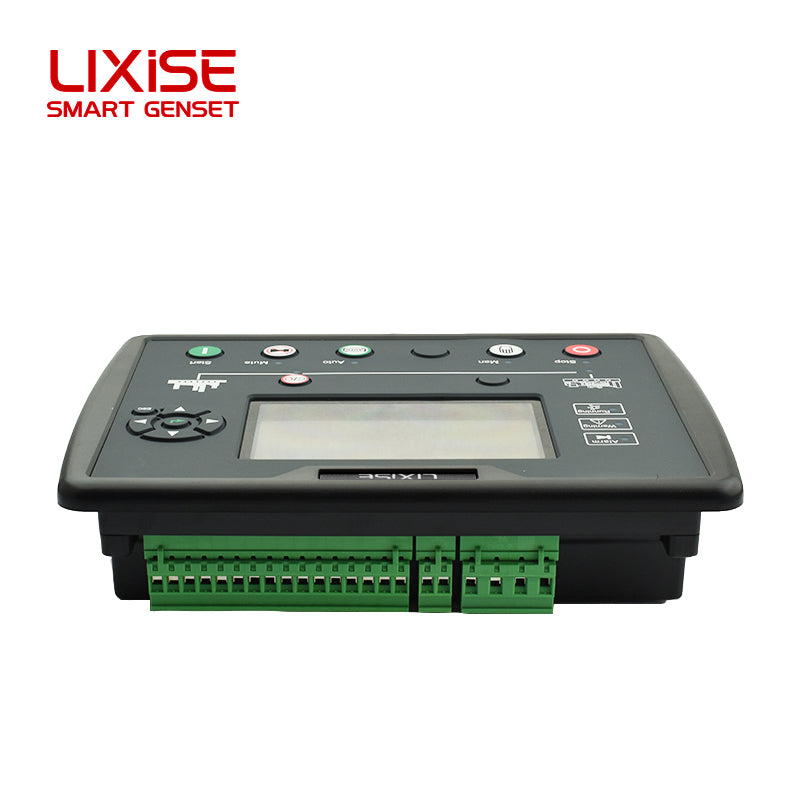

• Flame-retardant ABS modular housing, pluggable wiring terminals, embedded installation, compact size and easy mounting.

Optional Extended Intelligent Functions

1. Global Remote Monitoring
2. WIFI Cloud Connection: Unlimited cross-regional data transmission to cloud platform for intelligent fault analysis
3. Proprietary Black Box Technology: Second-level fault data playback to realize remote fast fault diagnosis
4. Early Fault Prediction System: Built-in 230+ fault models & intelligent fuzzy algorithm for unit health monitoring and complex fault pre-warning
5. Mobile Real-time Video Monitoring Display (Matching supporting modules)
