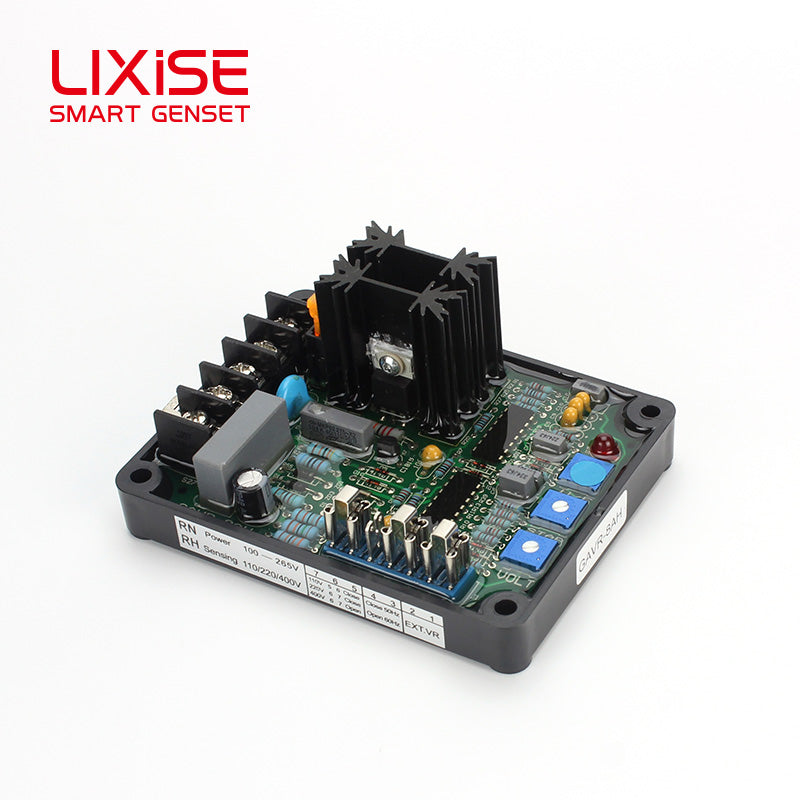

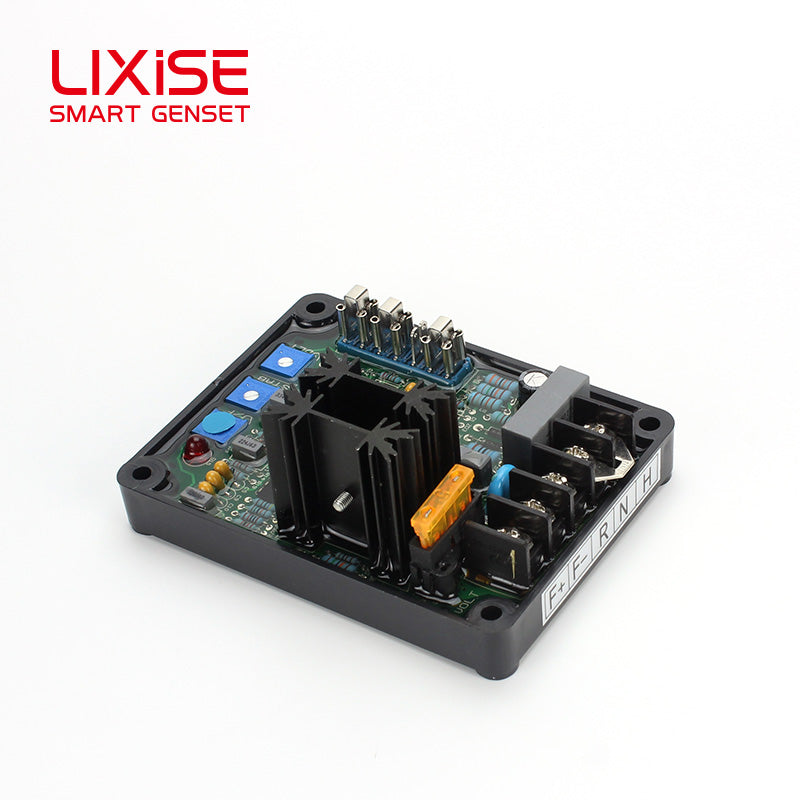

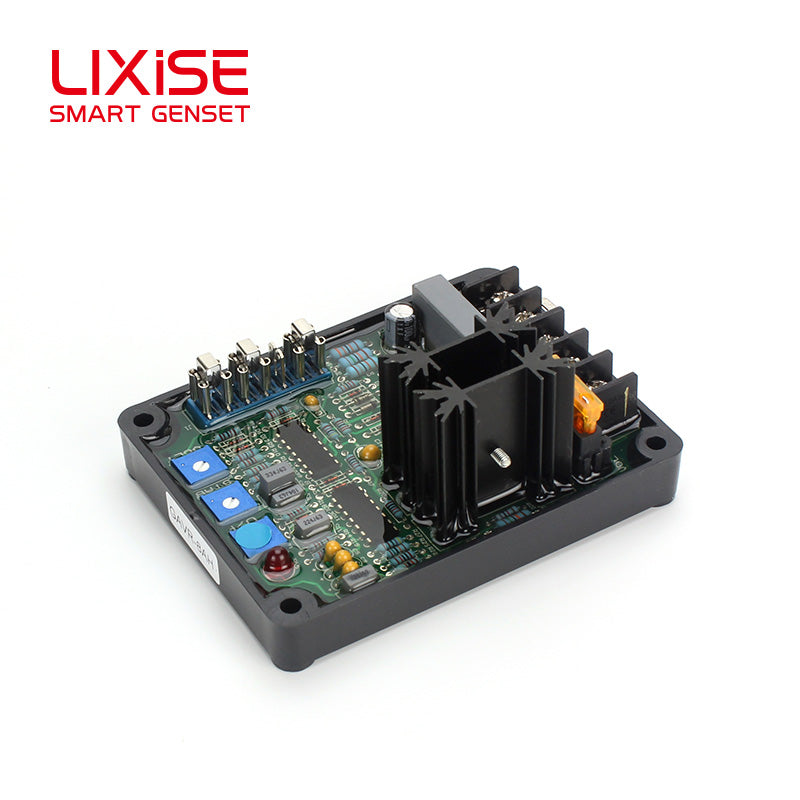

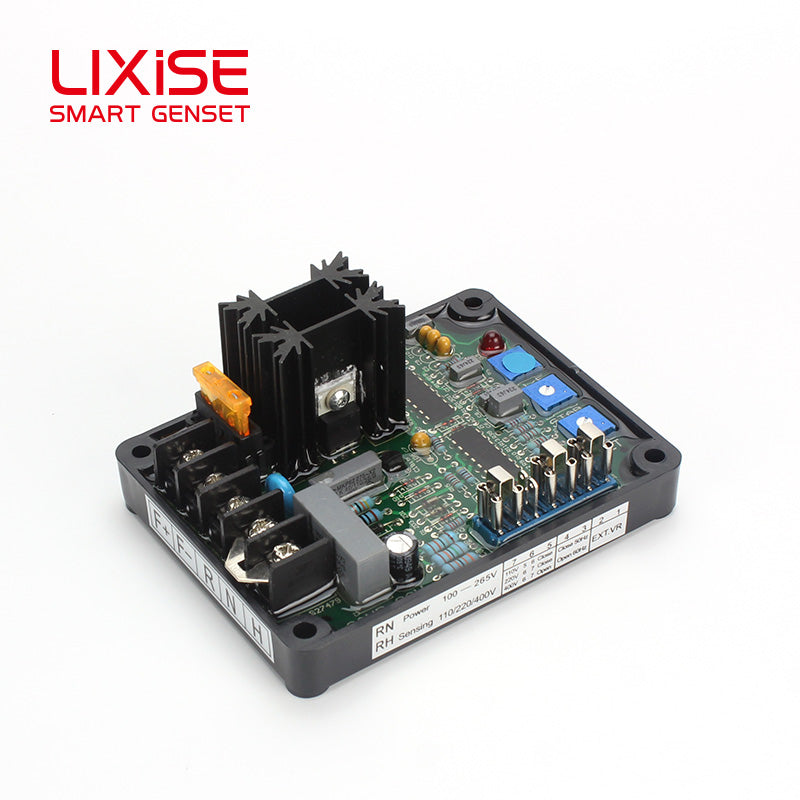

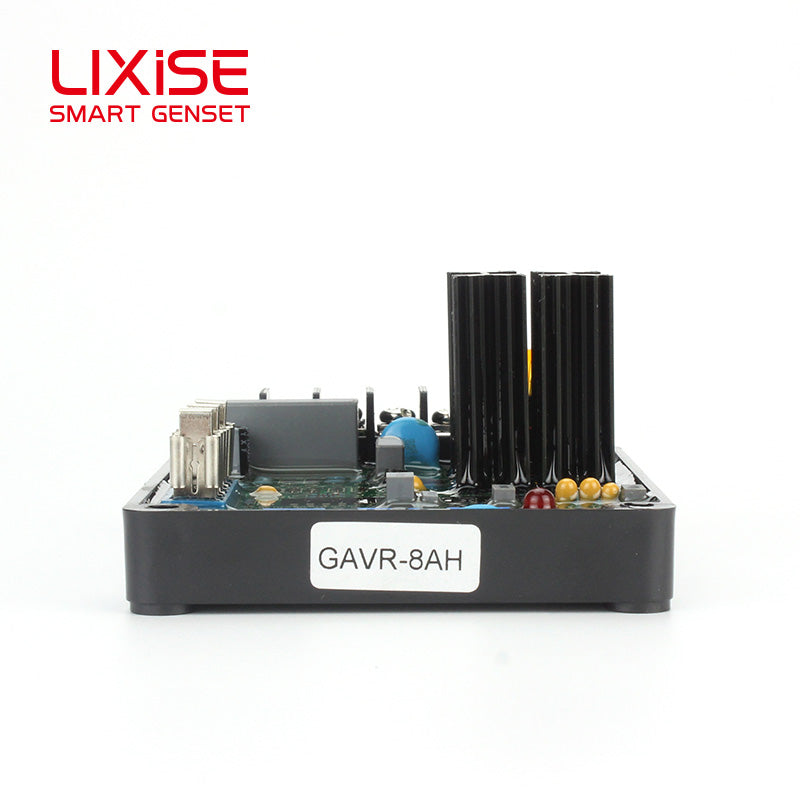

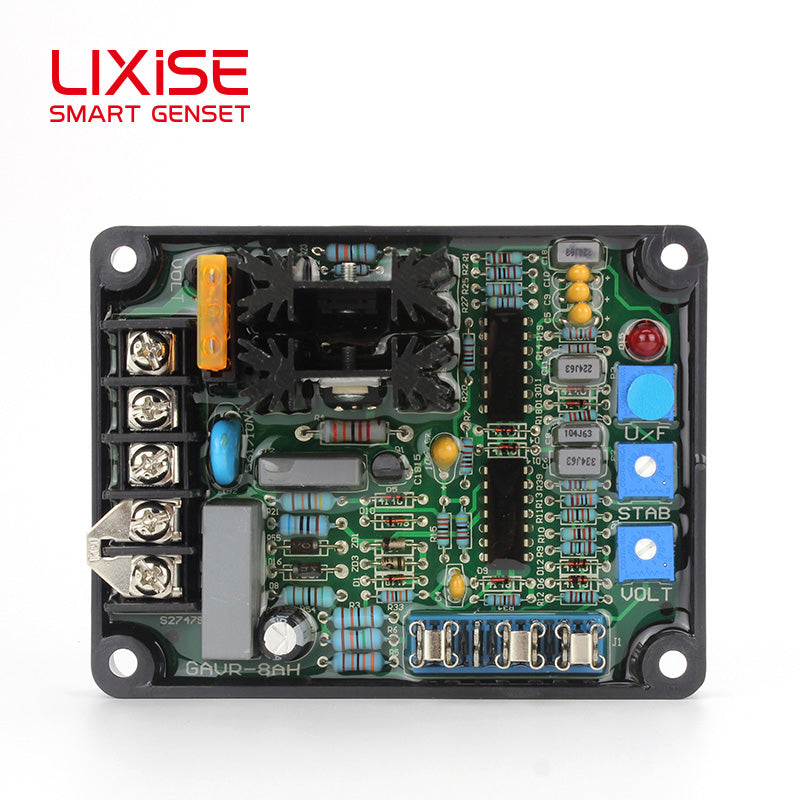

LIXiSE GAVR‑8AH is an electronic voltage stabilizer device for generators. It stabilizes the output voltage of brushless generators by dynamically adjusting generator excitation current for steady power supply.
Electrical Parameters
Sensing Input Voltage: 220/400VAC, 1‑phase 2‑wire
Power Input Voltage: 180~240VAC, 1‑phase 2‑wire
Max Output Voltage: 90VDC @240VAC input
Continuous Output Current: 6A
Intermittent Current(10SEC): 6A
Exciter Resistance Range: Min.10Ω, Max.100Ω
Residual Volts for Voltage Build‑up: >5VAC at AVR terminals
External Voltage Adjustment: ±7% with 1KΩ 1W trimmer
Max Unit Power Consumption: 8Watt
Frequency Protection Function
Frequency protection threshold is factory preset.
60Hz system: trip point at 57Hz
50Hz system: trip point at 47Hz
Application
Specially designed for brushless generator sets, widely used for genset maintenance and spare‑parts replacement in various industrial power generation scenarios.
