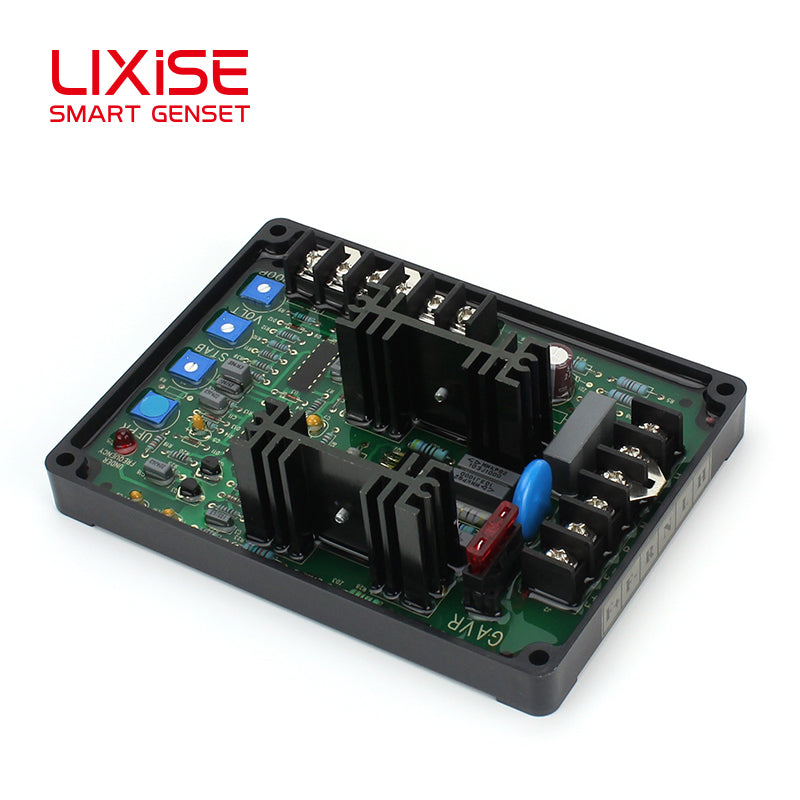

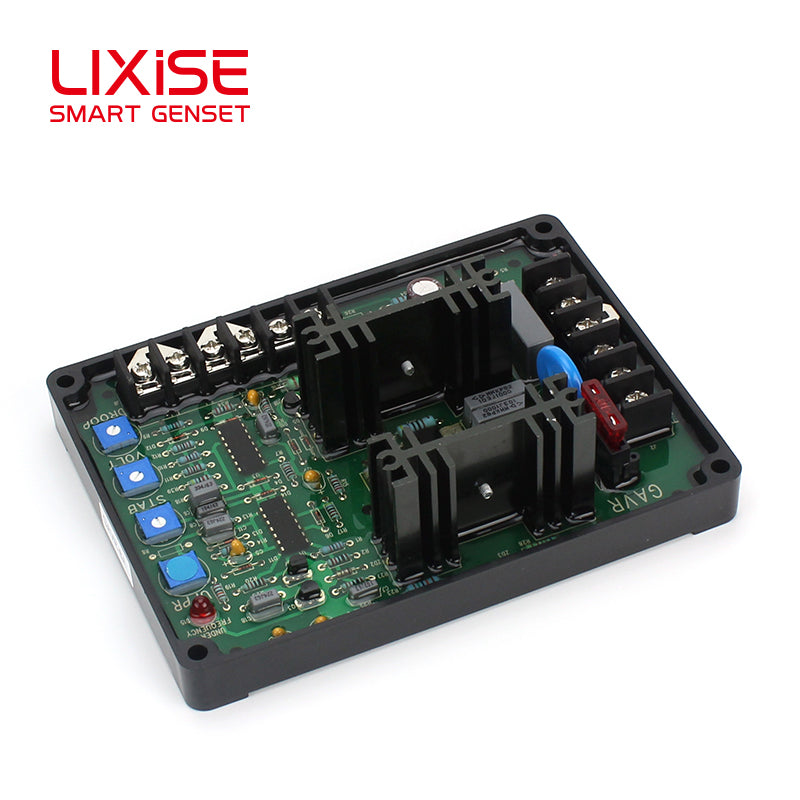

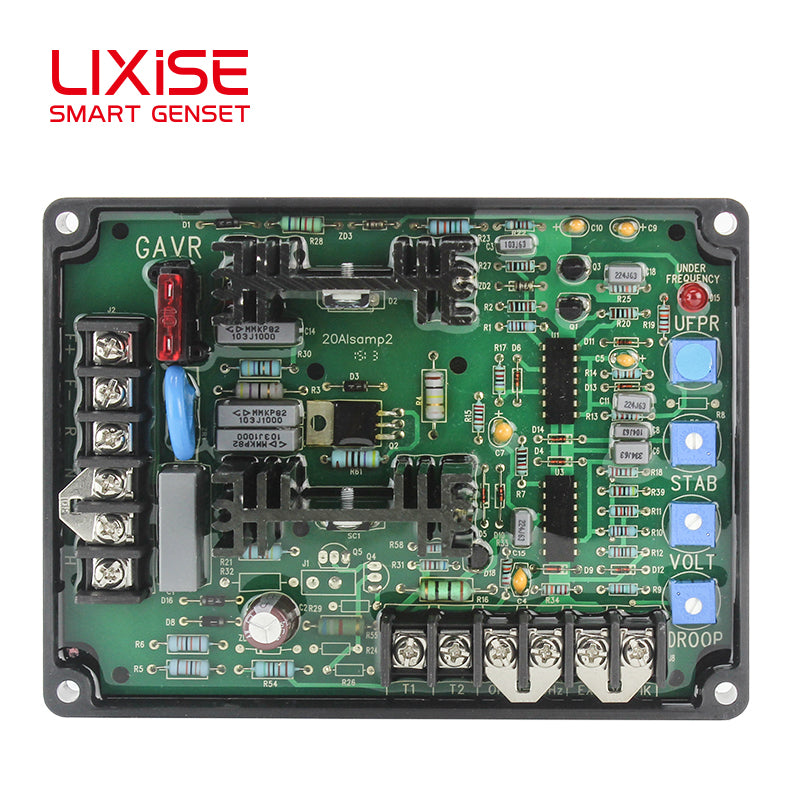

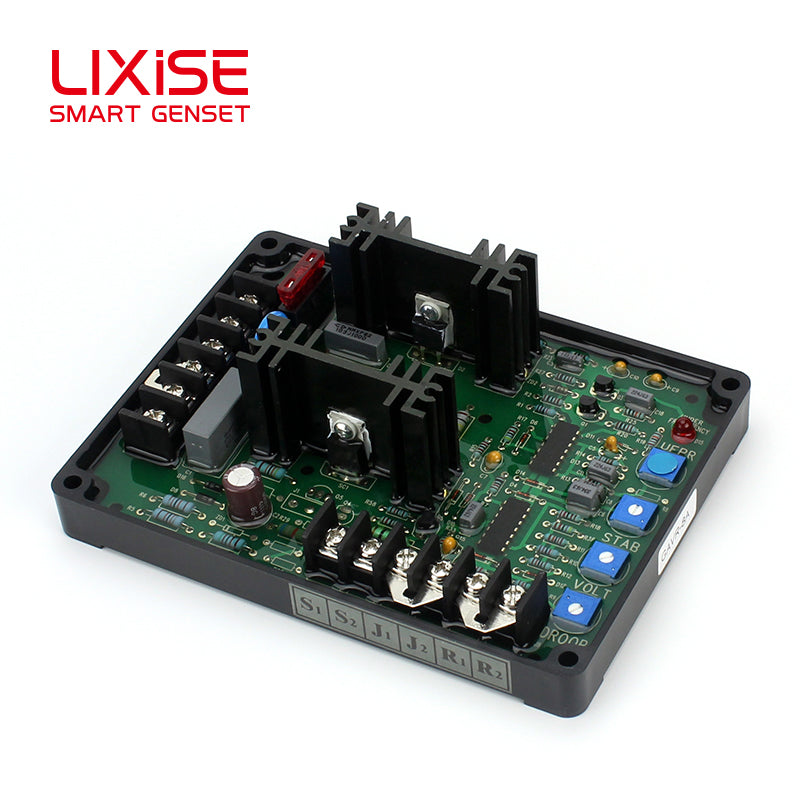

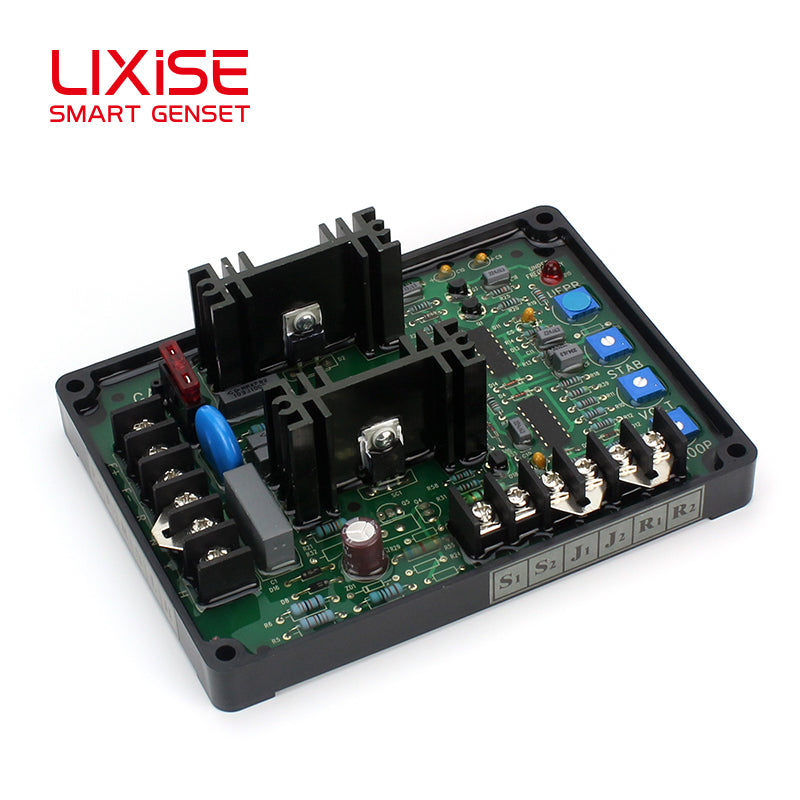

LIXiSE GAVR‑8A is an electronic voltage stabilizer for generators. It stabilizes output voltage of brushless generators by dynamically adjusting excitation current to deliver consistent power quality.
Electrical Parameters
Sensing Input Voltage: 220/400VAC, 1‑phase 2‑wire
Power Input Voltage: 180~240VAC, 1‑phase 2‑wire
Max Output Voltage: 90VDC @240VAC input
Continuous Output Current: 6A
Intermittent Current(10SEC): 6A
Exciter Resistance Range: Min.10Ω, Max.100Ω
Residual Volts for Voltage Build‑up: >5VAC at AVR terminals
External Voltage Adjustment: ±7% with 1KΩ 1W trimmer
Max Unit Power Consumption: 8Watt
Frequency Protection Function
Factory‑preset frequency protection threshold:
60Hz system: trip point at 57Hz
50Hz system: trip point at 47Hz
Application
Tailored for brushless generator sets, widely applied in industrial power generation, genset repair and spare‑parts replacement scenarios.
