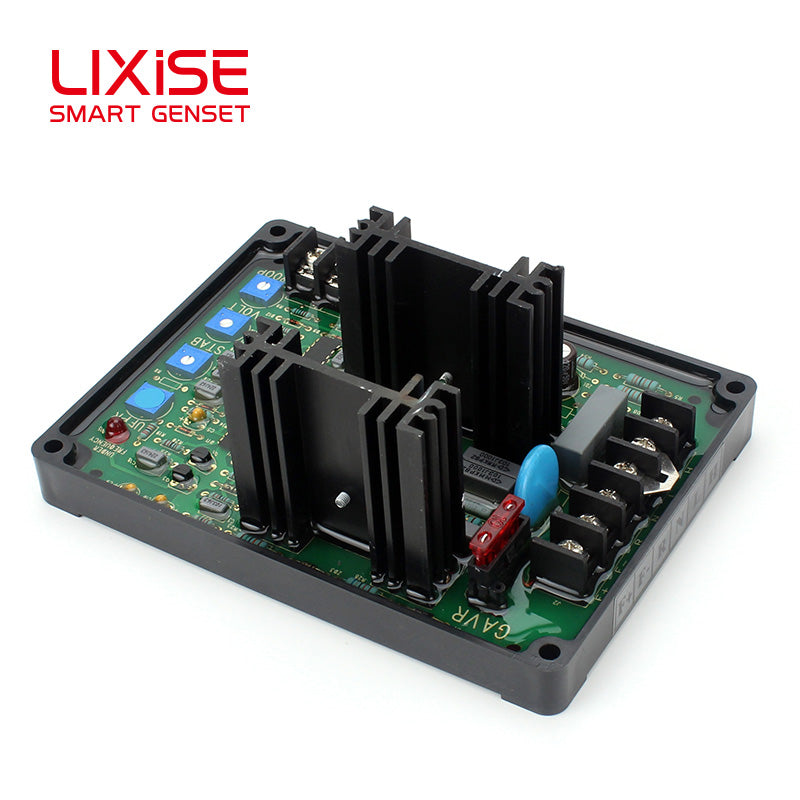

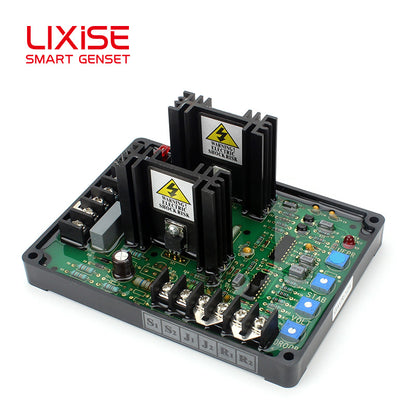

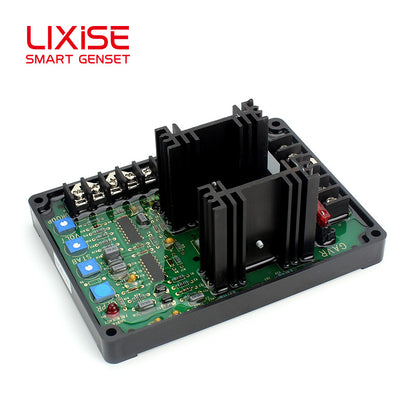

LIXiSE GAVR-12A Manufacturer | Generator Excitation Stabilizer | 50/60Hz Adjustable Voltage Regulator

Product Overview

Core Technical Specifications

Input Parameter

• Power Supply Voltage: AC 160~260V, 50/60Hz nominal
• Dual voltage jumper selection: 95-132V AC or 190-264V AC
• Voltage Build-up: Automatically establish voltage when residual magnetism exceeds 4V at 25Hz

Output Parameter

• Max DC Output: 95VDC @ 240V AC input, 90VDC @ 207V AC input
• Continuous DC Current: 2A
• Intermittent DC Current: 5A, sustainable for 10 seconds
• Minimum Matching Exciter Resistance: 20Ω

Regulation Performance

• Voltage Regulation Accuracy: ±1%
• Built-in under-frequency protection circuit for frequency fault protection

Key Advantages

1. Universal Global Standard Model


   Widely adopted matching part for all types of brushless generators, easy replacement and universal compatibility.
2. Precise Stable Voltage Control


   ±1% ultra-precise voltage regulation effectively suppress voltage fluctuation, fully protect sensitive electrical equipment.
3. Dual Voltage Selectable Input


   Voltage jumper design supports two sensing voltage ranges, adaptable to most single-phase generator systems worldwide.
4. Reliable Under-Frequency Protection


   Internal low-speed protection circuit cuts off excitation output when generator speed drops abnormally to prevent equipment damage.
5. Stable Residual Voltage Build-up


   Can automatically build voltage with weak residual magnetism above 4V, no manual excitation required for startup.
