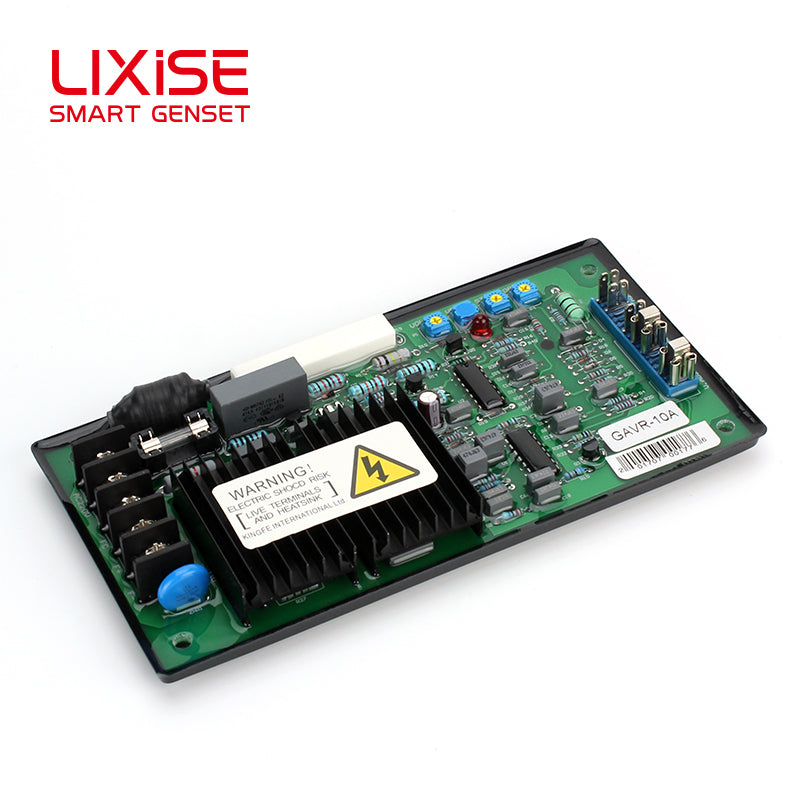

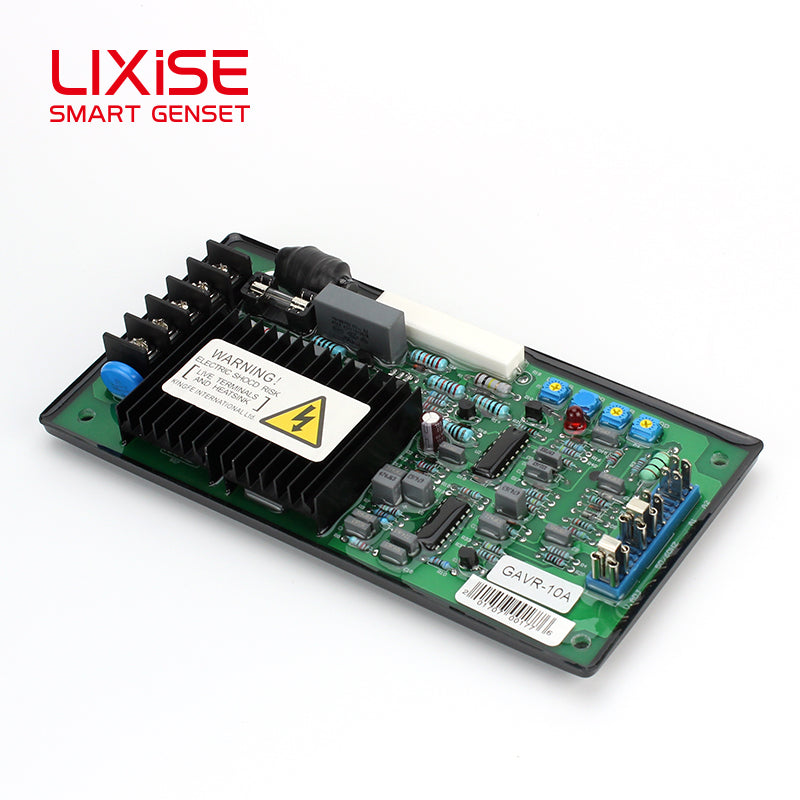

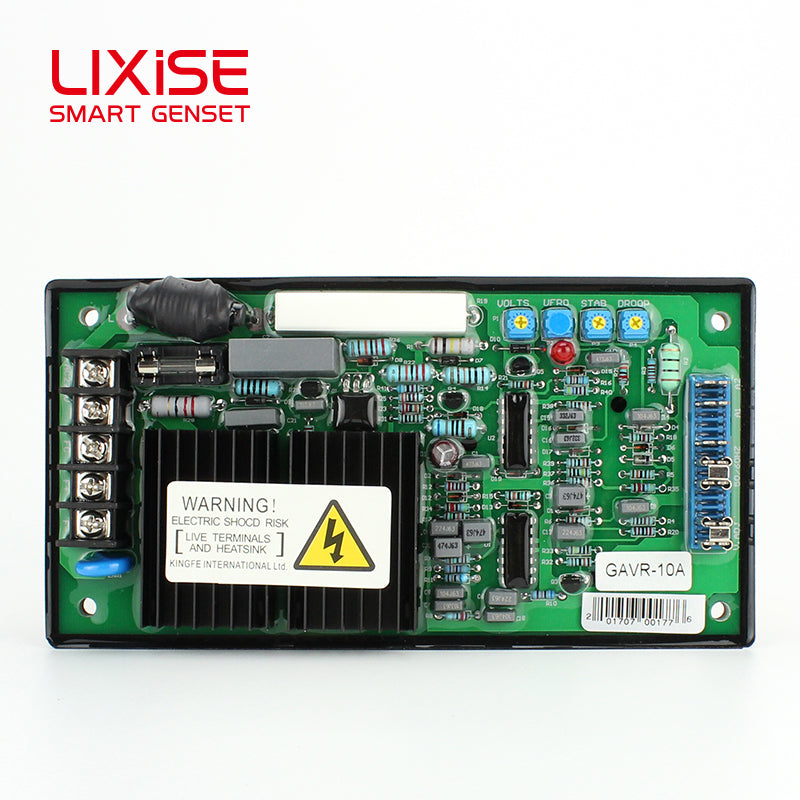

GAVR-10A is a universal 10 Amp half-wave self-excited programmable automatic voltage regulator equipped with DIP toggle switches, specially designed for brushless generators. It stabilizes generator output voltage reliably for various genset applications.
Technical Specifications
Sensing Input: 220/400VAC, 1-phase 2-wire
Power Input: 180~240VAC, 1-phase 2-wire
Max Output Voltage: 90VDC at 240VAC input
Excitation Current: 6A continuous, 6A intermittent for 10 seconds
Rotor Resistance Range: 10Ω ~ 100Ω
Build-up Residual Voltage: Over 5VAC on AVR terminals
External Voltage Adjustment: ±7% via 1KΩ 1W trimmer potentiometer
