Product Introduction

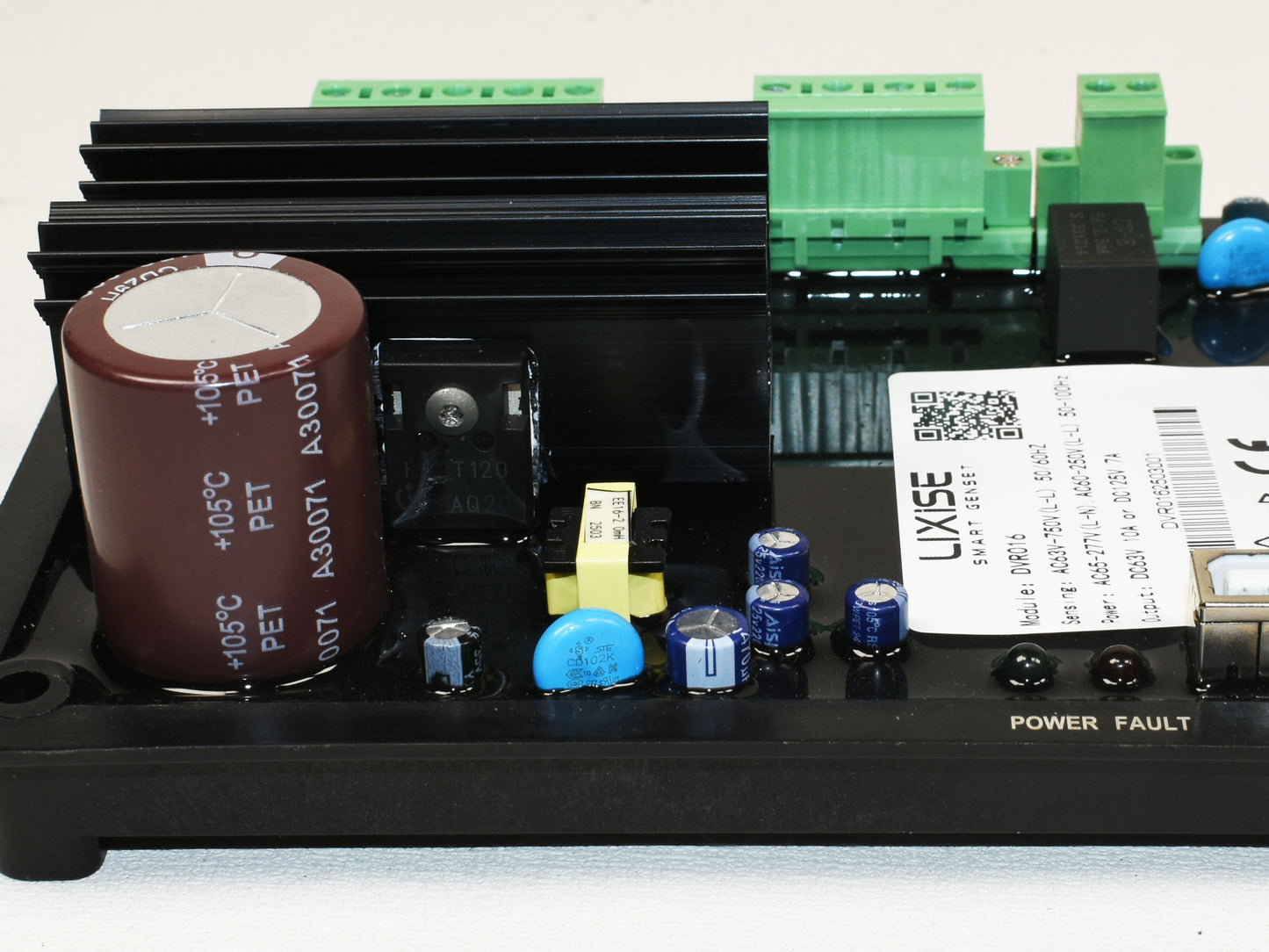

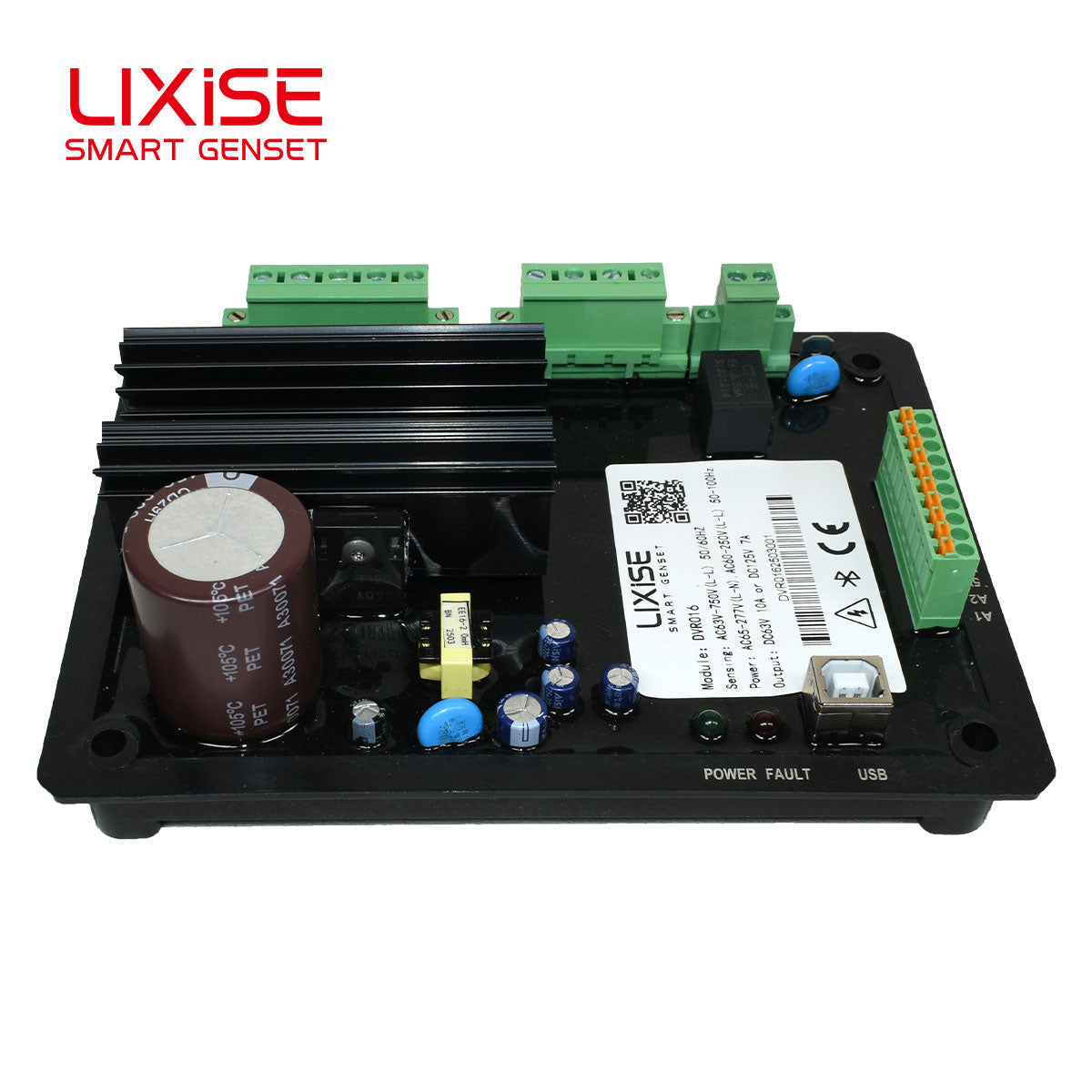

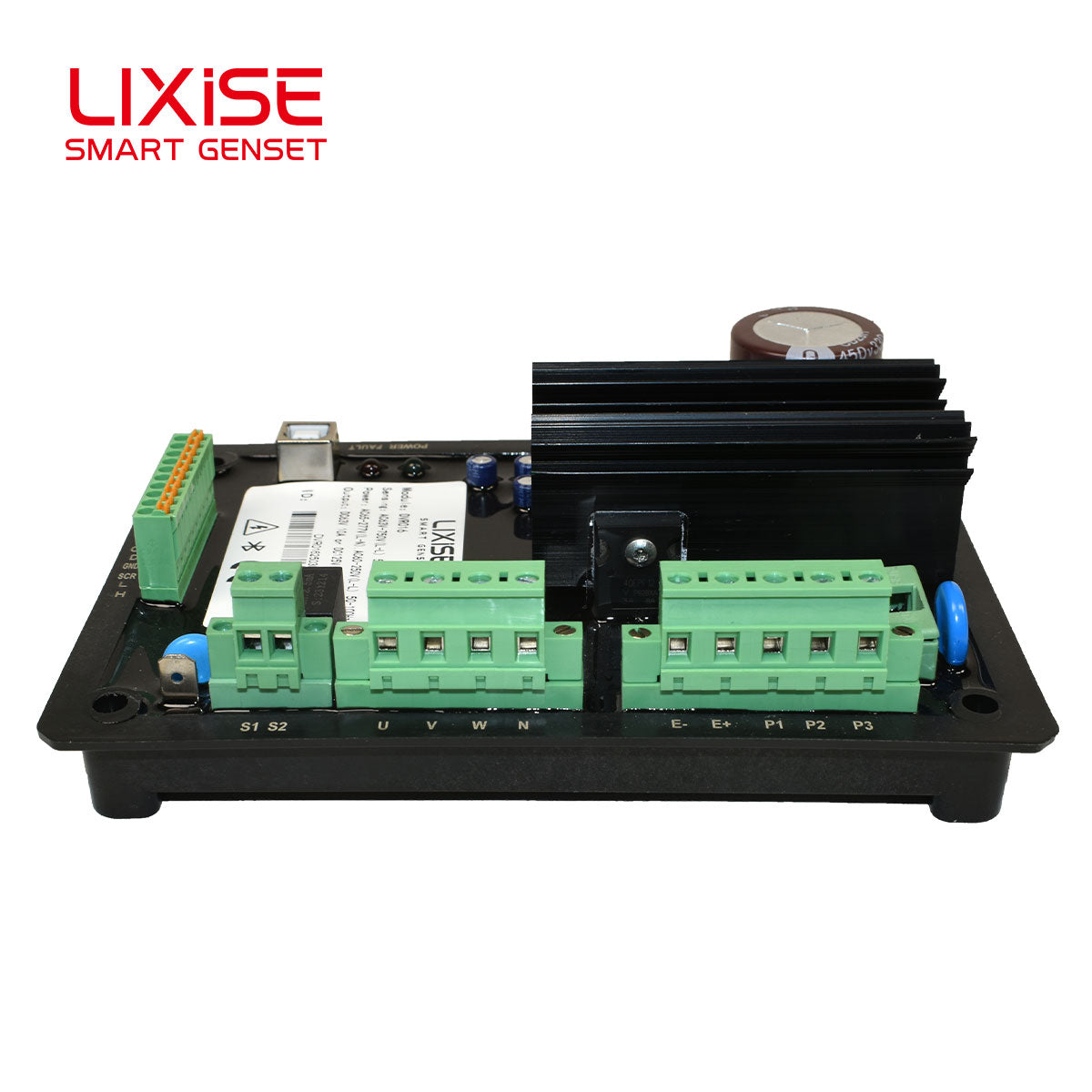

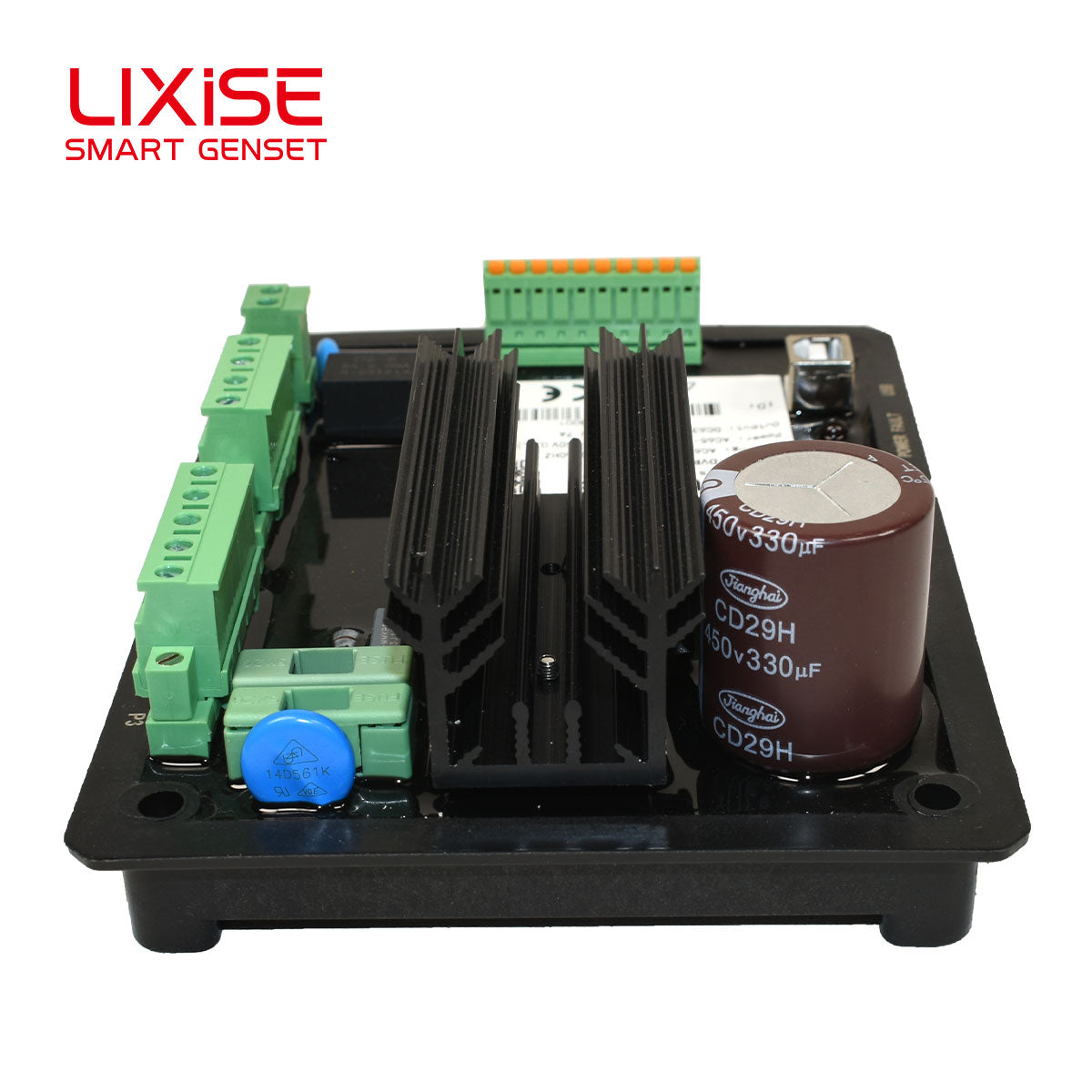

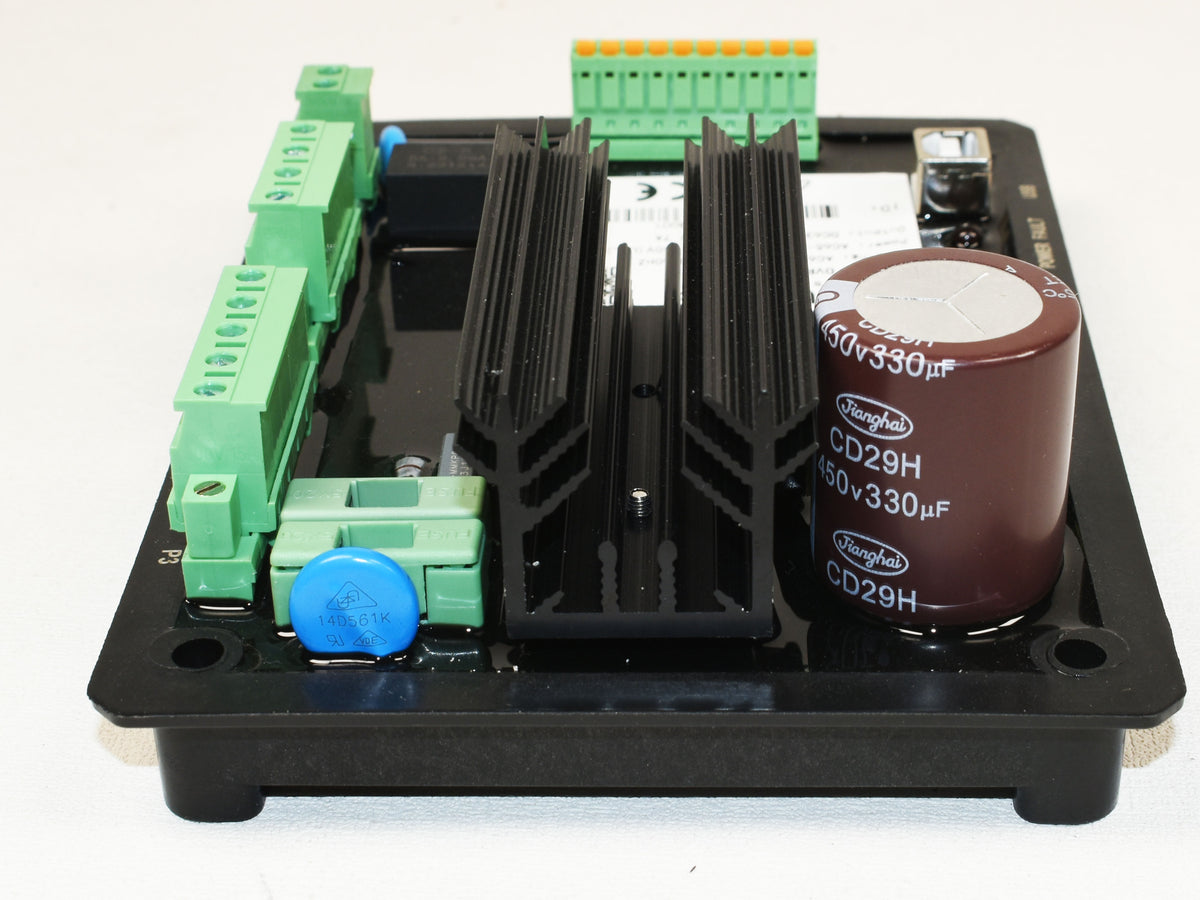

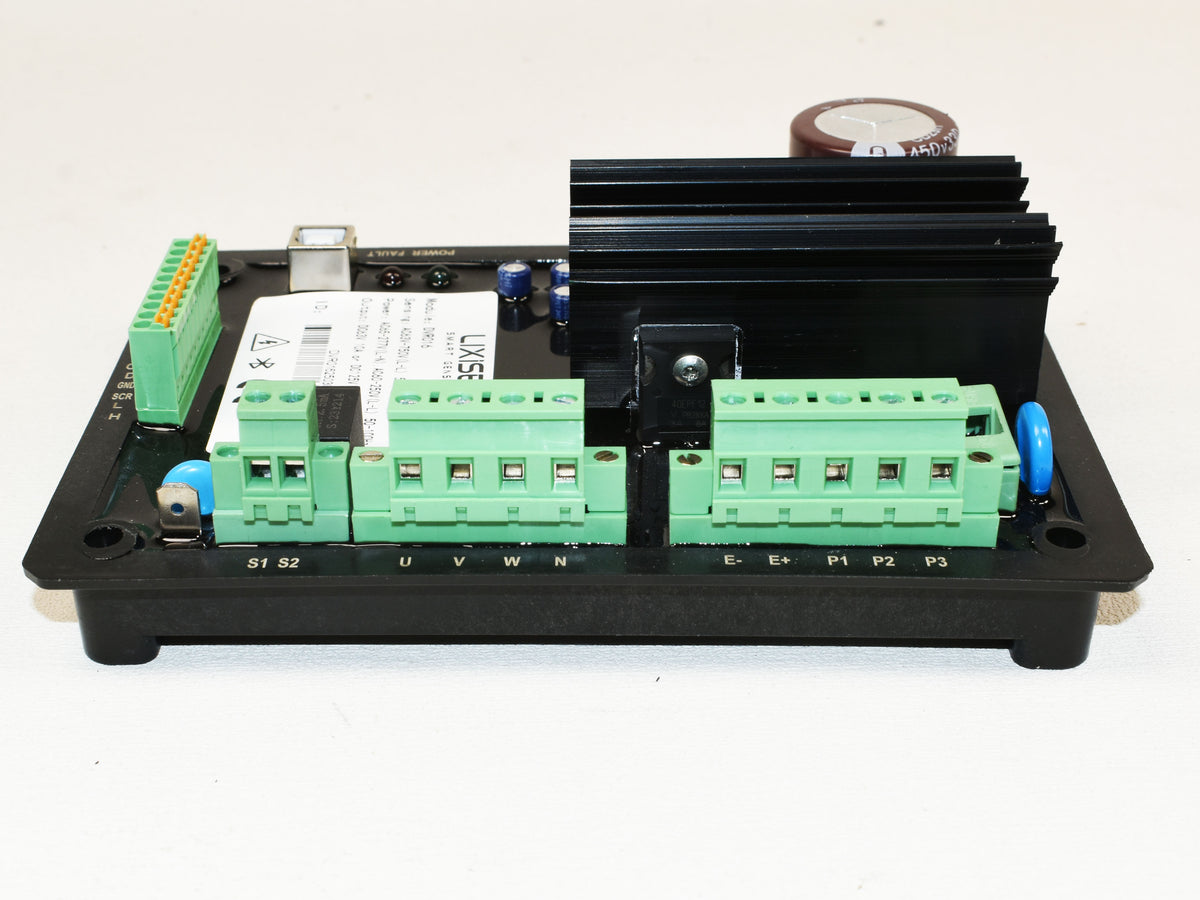

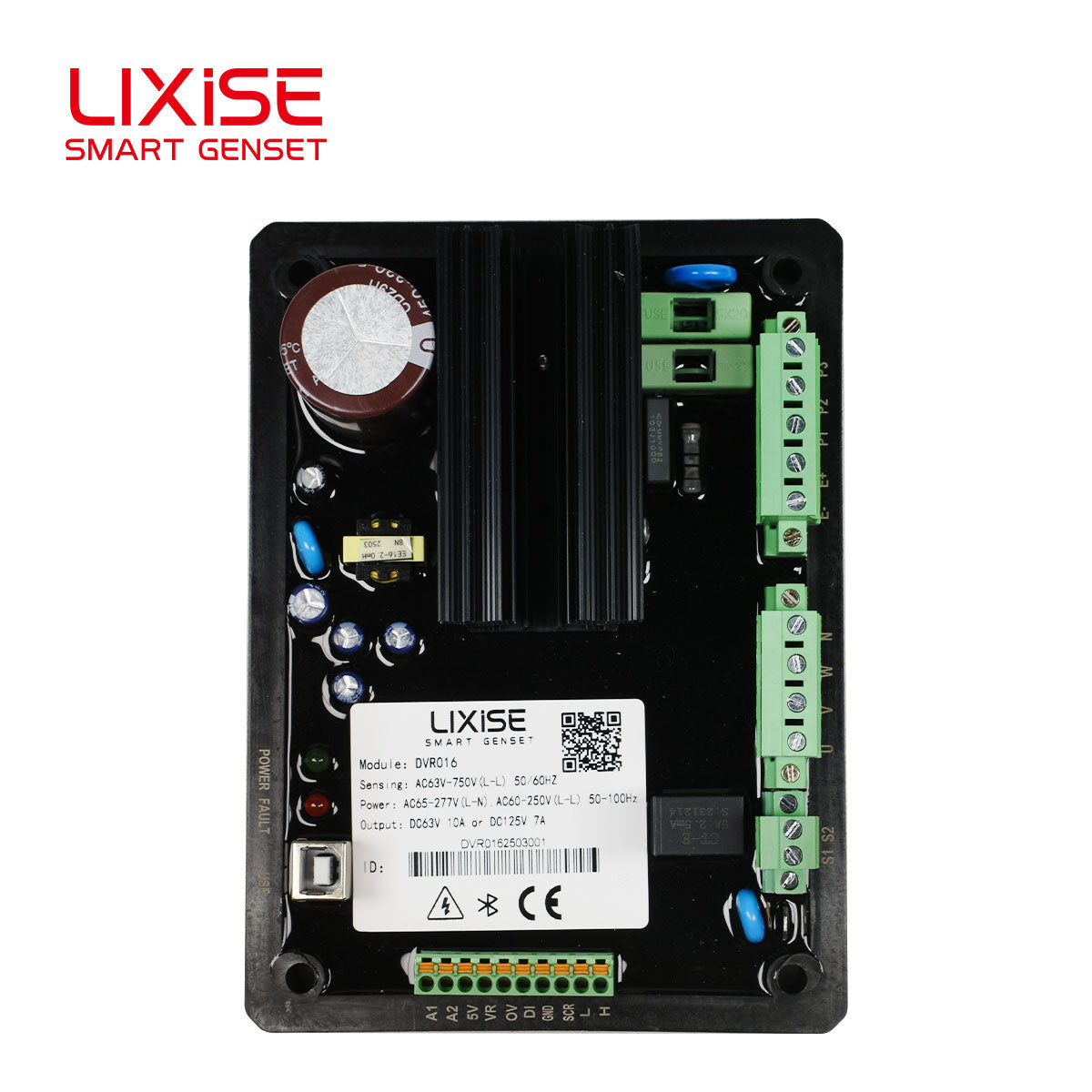

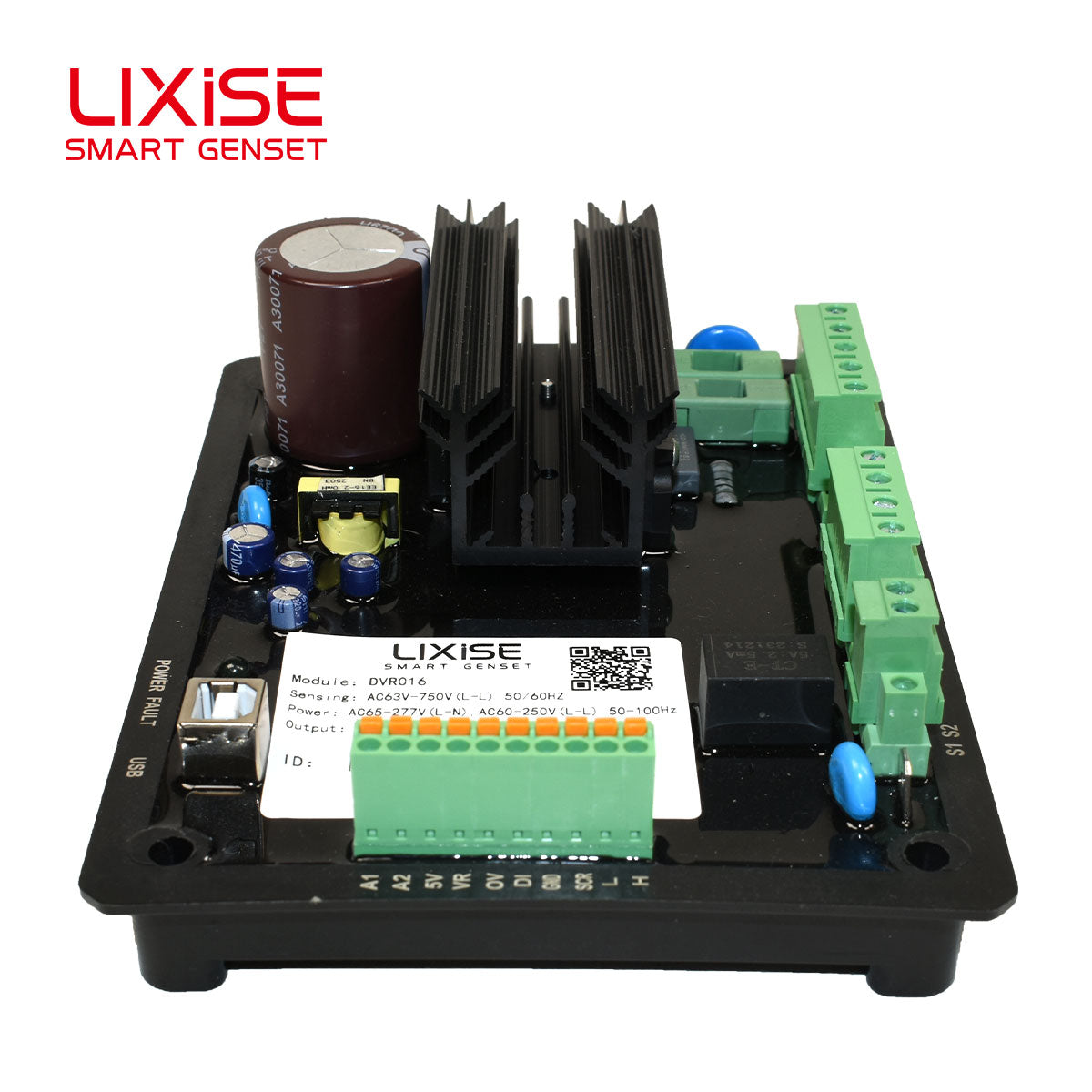

LIXiSE DVR016 is an intelligent digital automatic voltage regulator developed for multi-scenario brushless generators. It adopts automotive-grade reference chip and True RMS detection technology to eliminate voltage drift caused by temperature changes and nonlinear loads.
Equipped with Bluetooth wireless debugging and isolated CAN communication, it supports genset parallel operation and grid-connected power supply. As a professional factory & manufacturer, every DVR016 undergoes rigorous high-low temperature aging test to guarantee stable performance in complex industrial, marine and construction environments.
Core Technical Parameters
- Voltage Reference Source: Automotive-grade chip, temperature drift less than 15ppm
- Dynamic Load Performance: 2ms rapid load response, built-in negative sequence excitation & automatic PID tuning
- Excitation Current Specification: 10A continuous current at 63V/70°C; 7A continuous current at 125V/55°C; 15A transient current lasting 10 seconds
- Sensing Input Voltage: Rated range 100~800V, maximum withstand voltage up to 1000V
- Frequency Detection: Support 50Hz / 60Hz power frequency & 400Hz intermediate frequency
- Excitation Power Supply Options: PMG permanent magnet generator, AREP auxiliary winding, SHUNT self-excitation
- Adjustable Control Modes: Voltage Mode, Power Factor Mode, Reactive Power Mode, Constant Current Mode
- Communication Interface: Built-in Bluetooth module; Isolated CAN bus compliant with SAE J1939-75 protocol
Multi Compensation & Full-Range Protection Functions
- Comprehensive compensation features: Negative sequence excitation, soft start, soft loading, droop compensation, Vbus compensation
- Multi-layer protection: Complete excitation limit circuits and fault protection against abnormal operating conditions
- Parallel & grid connection support: Droop compensation and analog input ports for multi-generator parallel and grid-tie projects
High Precision Data Acquisition & On-site Debugging System
- Full parameter collection: Excitation voltage, excitation current, generator three-phase voltage, three-phase current, frequency, active power, power factor
- Bluetooth mobile APP function: Free parameter configuration and real-time waveform display, greatly simplifying field debugging work
- Intelligent CAN linkage: Remotely adjust generator target voltage via matched genset controller to realize full-set intelligent control
Core Advantages
- True RMS real effective value detection, stable output under all loads especially distorted nonlinear loads
- Ultra-wide sensing voltage range, no extra step-down transformer needed, compatible with low/medium/high voltage alternators
- Four customizable excitation control modes to match diversified power generation demands
- Dual communication design realizes visual debugging and automatic unit linkage control
- Ultra-low temperature drift design ensures consistent voltage stability under extreme temperature differences
