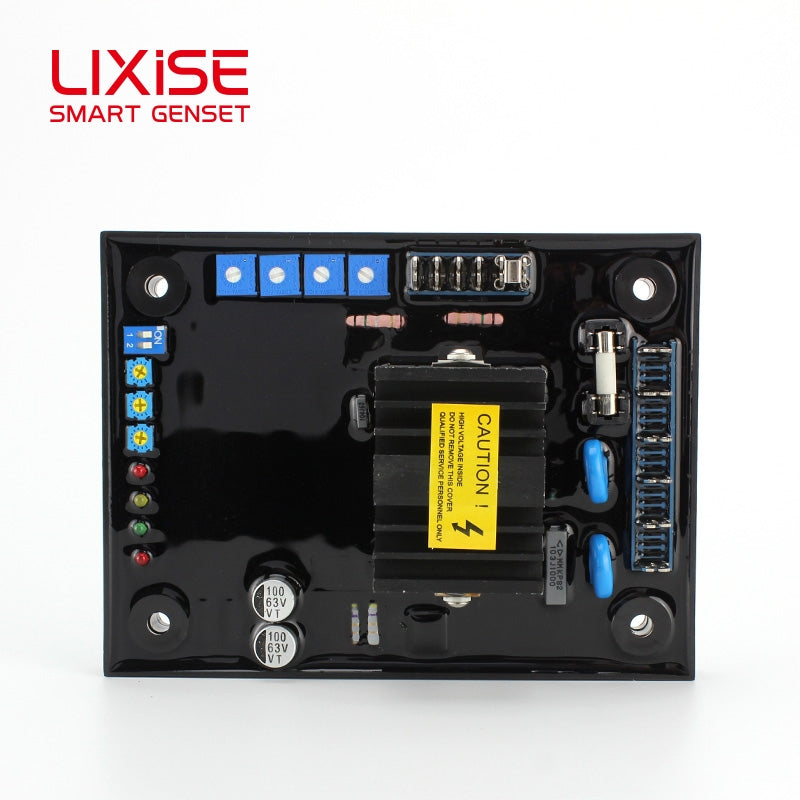

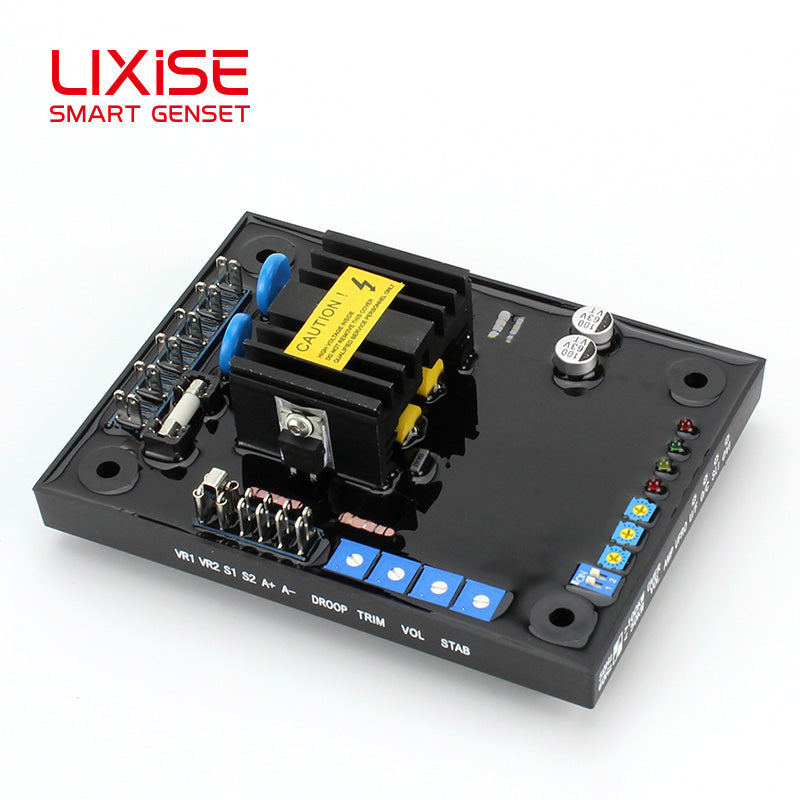

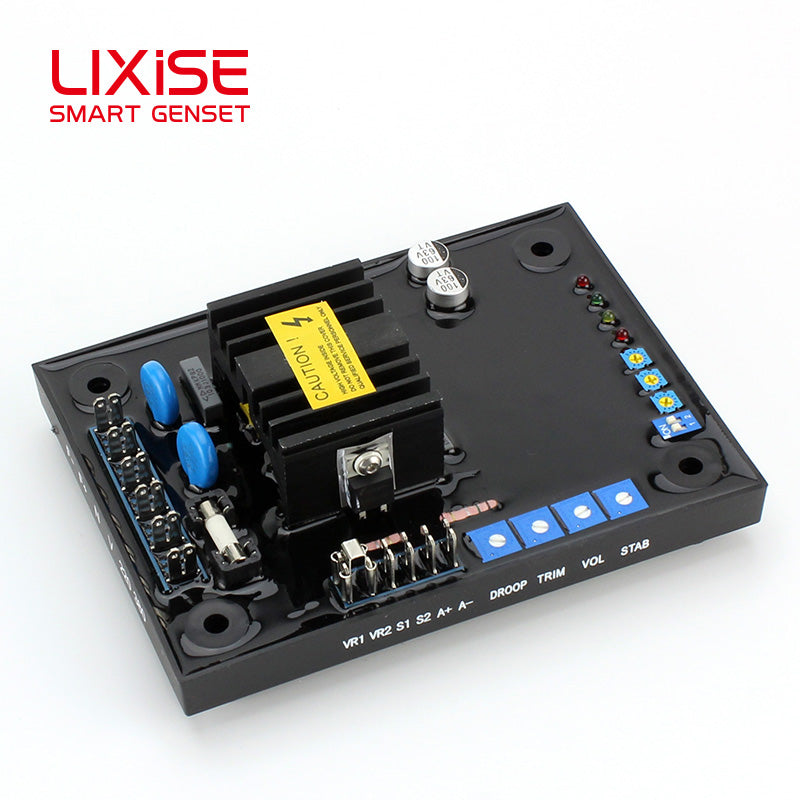

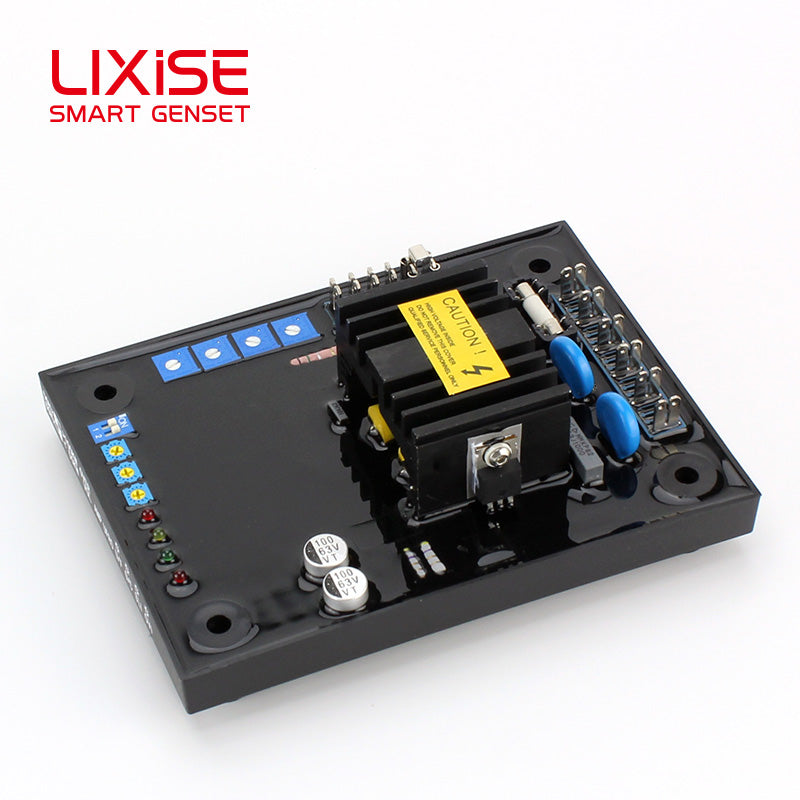

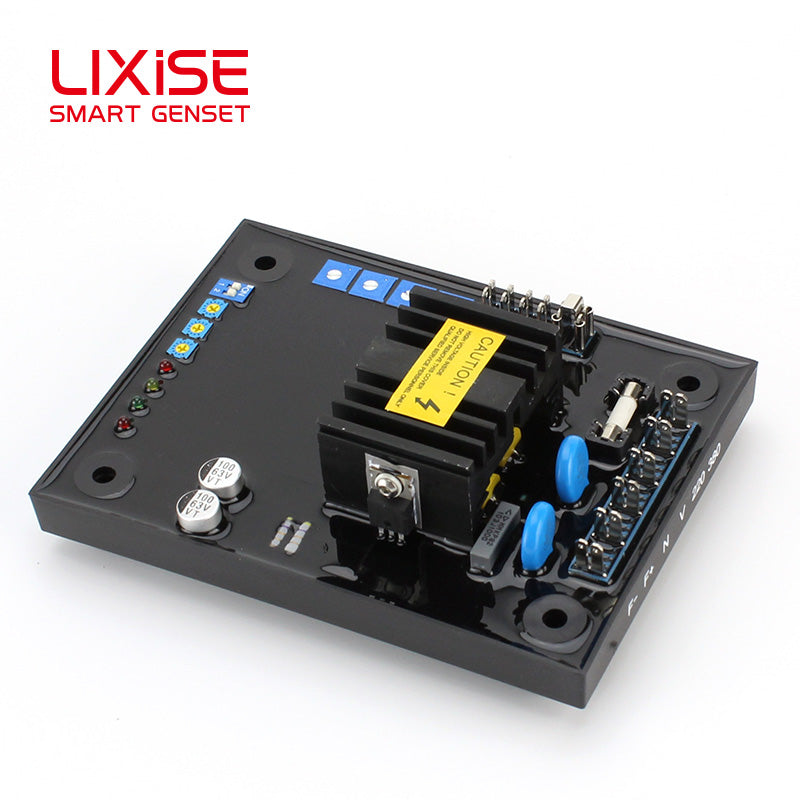

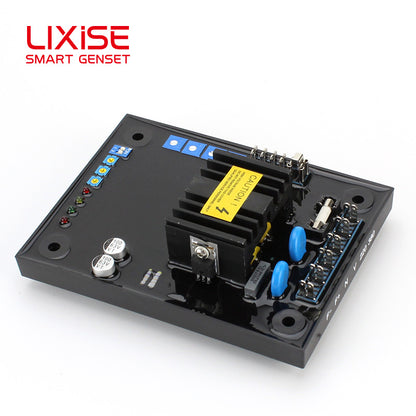

LIXiSE EVR106 is a generator automatic voltage regulator based on half‑wave phase‑controlled rectification excitation principle. It stabilizes AC generator output voltage by adjusting excitation current. It is applicable to generators adopting auxiliary winding or phase power as excitation power source, with advantages of high stability, fast response and convenient installation & maintenance.
STAB Stability Adjustment
Built‑in stability adjustment circuit for wide‑range application scenarios. Users can set excitation winding response characteristics via the STAB potentiometer on the regulator. It matches features of different driving engines such as diesel engines and water turbines to achieve optimal voltage response performance.
UFRO Under‑Frequency Protection
Factory default setting will reduce excitation current when generator speed drops below 95% of rated speed. Users can adjust the protection trigger speed through the UFRO potentiometer.
50Hz rated system: protection point at 47Hz
60Hz rated system: protection point at 57Hz
The UFRO indicator light will light up once protection is activated.
Application
Suitable for various brushless generator sets, widely used for genset maintenance and spare‑parts replacement in industrial power‑generation projects.
