LIXiSE BoNeng BN460 | Reliable Genset Parts Factory,Half-Wave Thyristor AVR Supports Stable Operation Above 200℃,Built-In Military-Grade Chip & Under-Speed Protection.
LIXiSE BoNeng BN460 | Reliable Genset Parts Factory,Half-Wave Thyristor AVR Supports Stable Operation Above 200℃,Built-In Military-Grade Chip & Under-Speed Protection.
Regular price
$28.70 USD
Regular price
Sale price
$28.70 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
Product Introduction

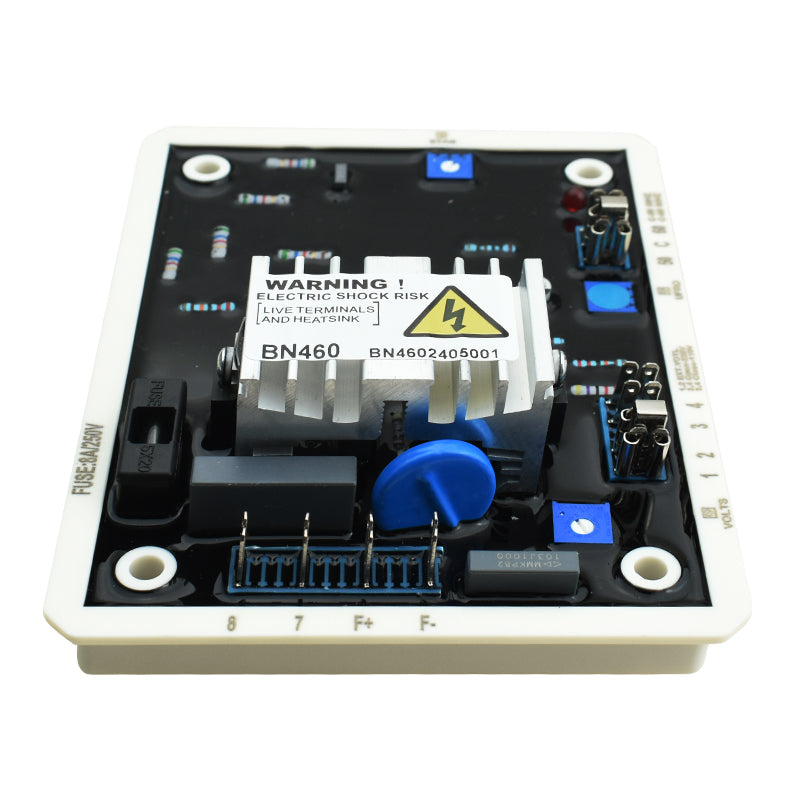

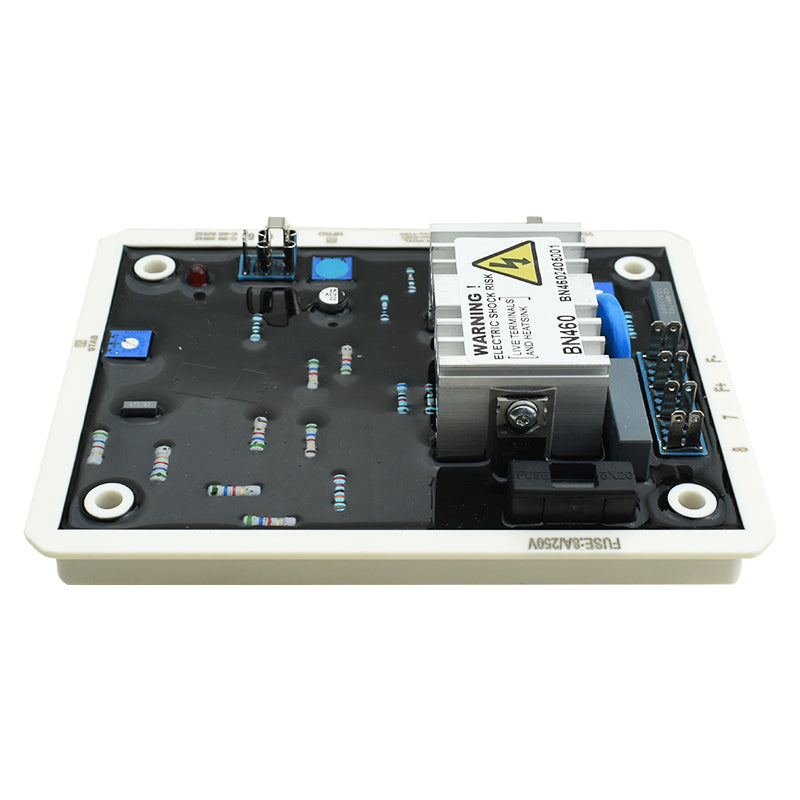

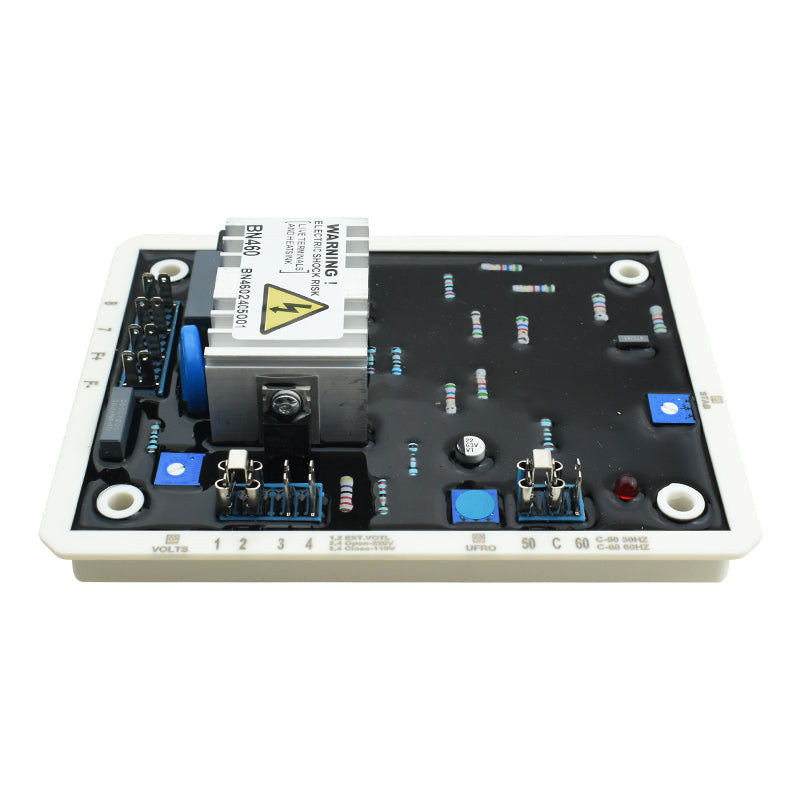

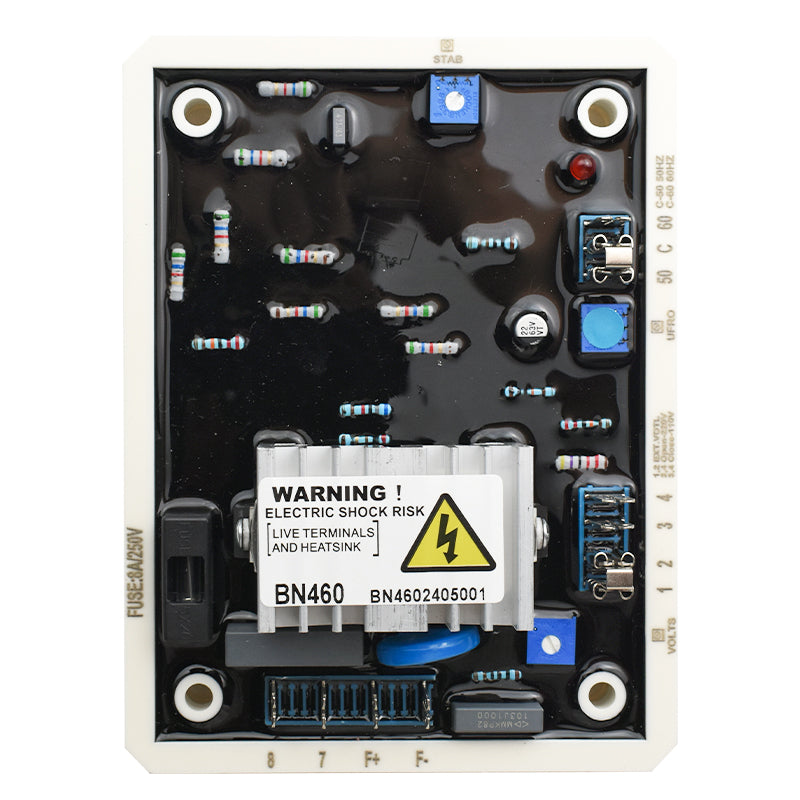

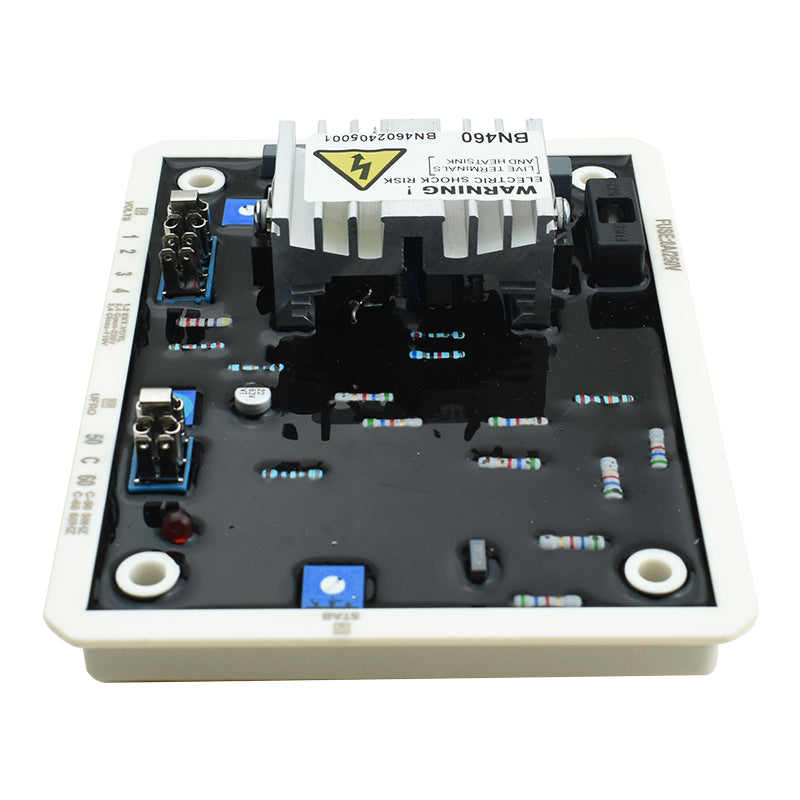

LIXiSE BoNeng BN460 is a half-wave phase-controlled thyristor automatic voltage regulator (AVR), an essential component of brushless generator excitation systems. Beyond generator voltage regulation, its built-in circuit integrates under-speed and loss-of-sensing protection functions. The excitation power is directly supplied from generator terminals. As a professional Factory & Manufacturer, we strictly implement 24-hour rated current aging and over 20 simulation test procedures for every unit to deliver highly stable and reliable products.
Core Technical Parameters
- Control Type: Half-Wave Phase Control Thyristor AVR
- Core Chip: Military-Grade Chip, Wide Working Temperature Range, Low Failure Rate
- Excitation Output: 90V Excitation Voltage, 4A Continuous Current, 10A Transient Current Within 10 Seconds
- Voltage Sensing: Direct Detection For 200V / 400V Generator Voltage
- Extra Function: Built-In Frequency Compensation For Welding Machine & Inverter Loads
- Operating Temperature: Stable Operation Above 200℃ High Temperature
- Protection Mechanism: Under-Speed Protection & Loss Of Sensing Protection
Core Advantages
- Extreme High Temperature Resistance: Normal stable operation under temperature over 200℃
- Ultra-Fast Response: Fast Voltage Build-Up Speed And Constant Voltage Output
- Strict Reliability Test: 24-Hour Rated Current Online Aging, More Than 20 Production Simulation Testing Processes
- Premium Sealing Material: Imported Waterproof & Moisture-Proof AB Glue For Comprehensive Circuit Protection
- Strong Load Adaptability: Equipped With Frequency Compensation For Special Loads Like Welders And Inverters
- Wide Compatibility: Universal electronic regulating spare part for all brushless generator sets
Application Scenarios
Widely applied in mobile communication base stations, communication equipment, transport vehicles, marine vessels, industrial instruments and other power generation equipment.
