LIXiSE AIG6220 Upgraded Genset Controller | 240\*128 Graphic LCD With Bluetooth Offline Query, Black Box Fault Record & Battery Aging Detection

Product Overview

The AIG6220 power station automation controller is designed for the automatic monitoring system of single diesel generator sets. Adopting 32-bit microprocessor technology, it supports automatic start and stop of gensets, precise measurement of multiple operating parameters, alarm protection and three-remote control functions.

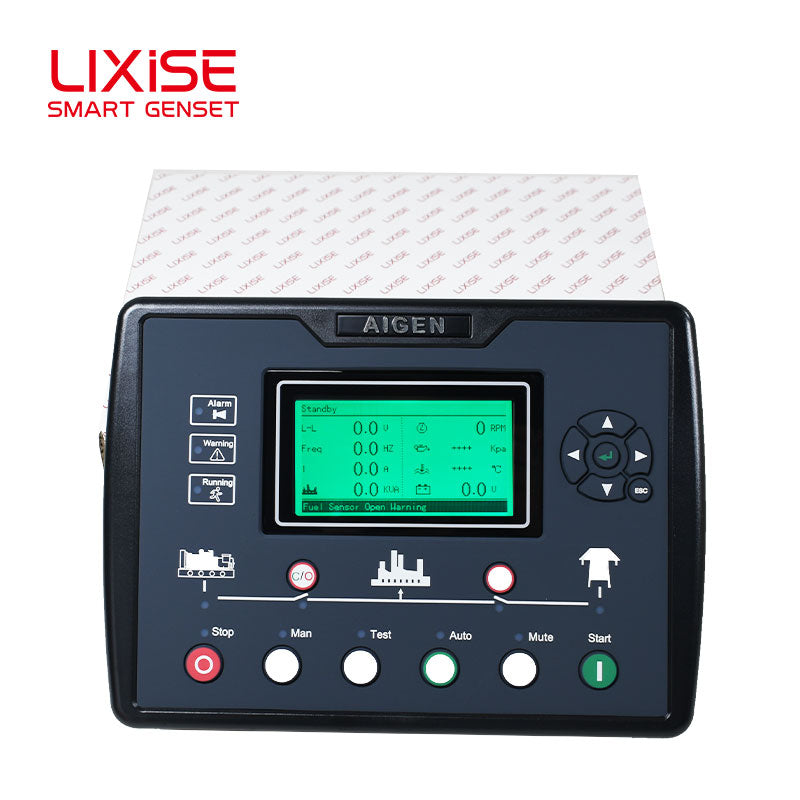

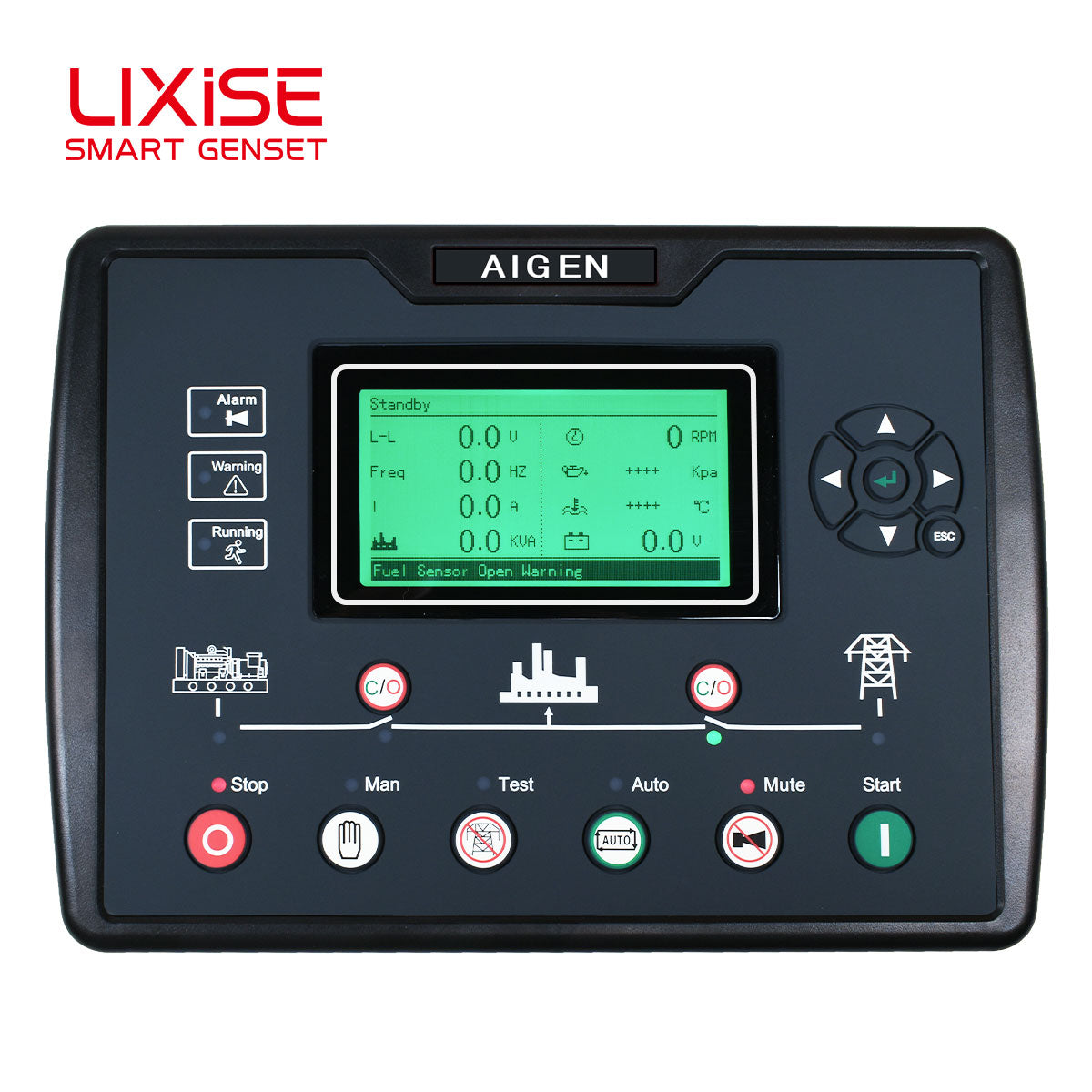

It is equipped with a 240*128 graphic LCD display, compatible with Chinese, English and other customizable multi-language interfaces. All parameters can be adjusted directly via the front panel, or remotely set and monitored by PC via USB, RS485 and built-in Bluetooth. This base model does not integrate 4G or WIFI modules; cloud remote monitoring requires an external communication collector. With compact layout, simple wiring and outstanding stability, it can be widely matched with all kinds of generator automatic control equipment.

Core Competitive Features

1. Patented Black Box Technology It continuously records complete operating data before faults trigger protection shutdown, allowing maintenance staff to quickly locate failure root causes and cut troubleshooting time.
2. Bluetooth Local Wireless Connection Direct wireless pairing with the controller; users can check full black box fault records offline without SIM card or cellular data traffic.
3. Built-in Fault Feedback Module One-click fault submission realizes fast technical support response, effectively solving after-sales maintenance difficulties.
4. Storage Battery Aging Detection Real-time battery health monitoring prevents startup failure caused by aging batteries and greatly improves genset startup success rate.
5. Ultra-high Manufacturing Reliability Optimized hardware design and strict production quality control ensure the annual failure rate is controlled below 0.1%.
