LIXiSE 702AS Engine Control Module | Anti-Tamper LCD Hour Counter, USB PC Calibration, Multi Relay Outputs, Full Engine Fault Protection

LIXiSE 702AS Engine Control Module | Anti-Tamper LCD Hour Counter, USB PC Calibration, Multi Relay Outputs, Full Engine Fault Protection

$22.80 USD
$22.80 USD
Sale Sold out
Shipping calculated at checkout.

Product Overview

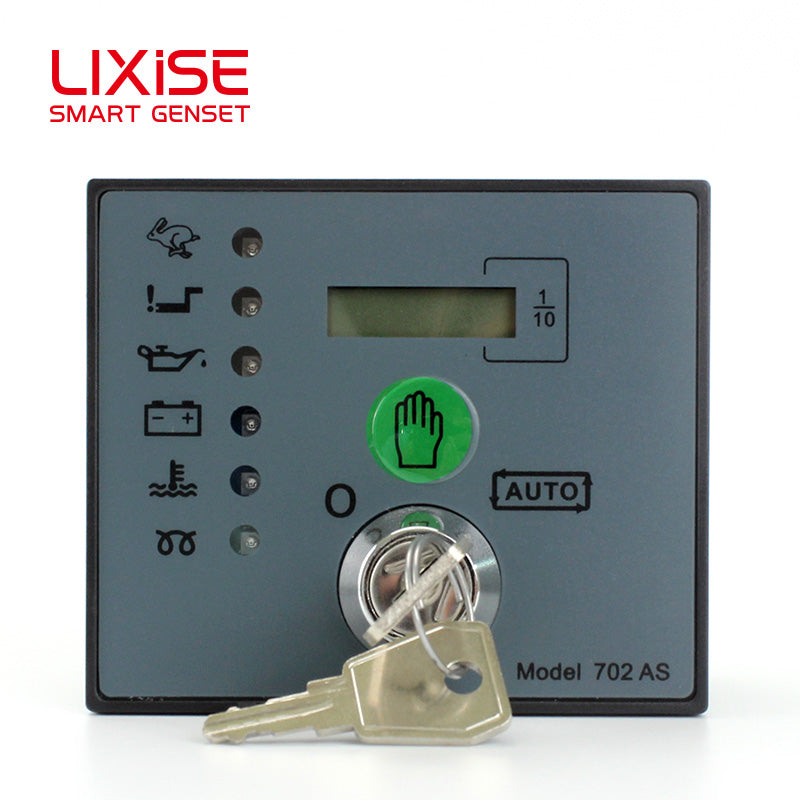

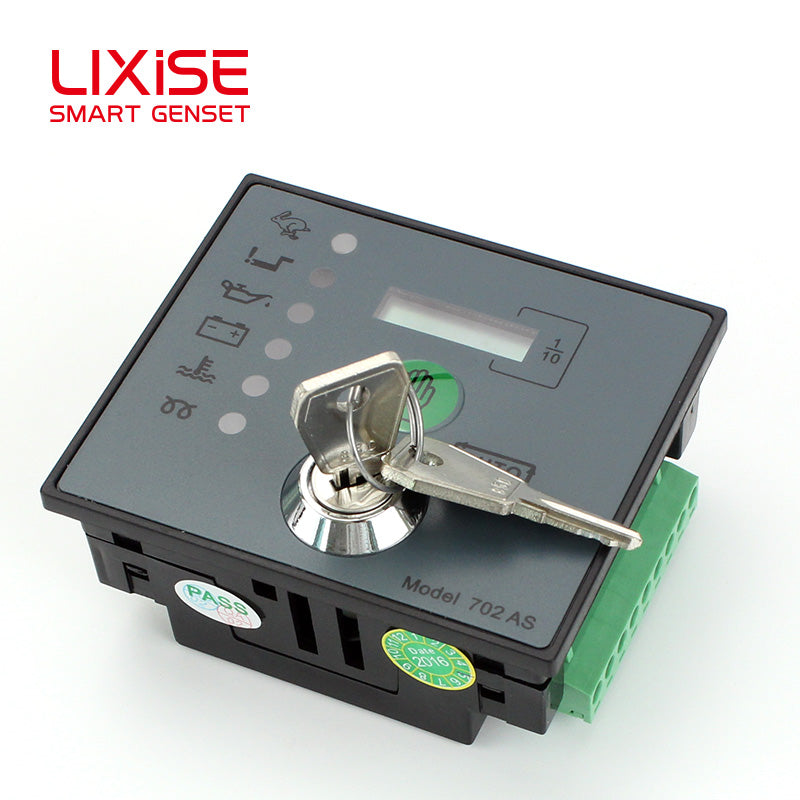

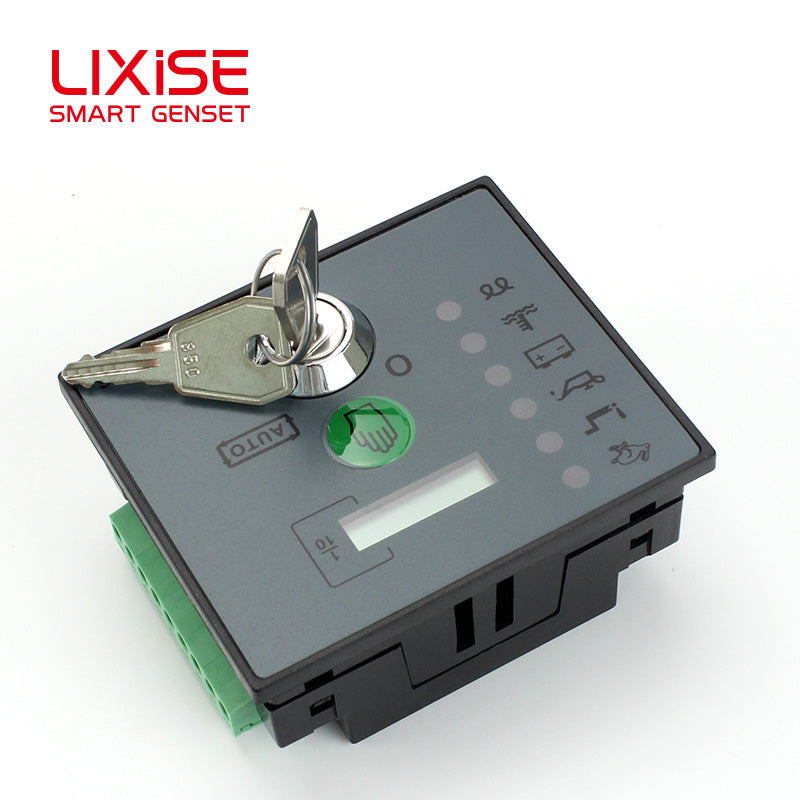

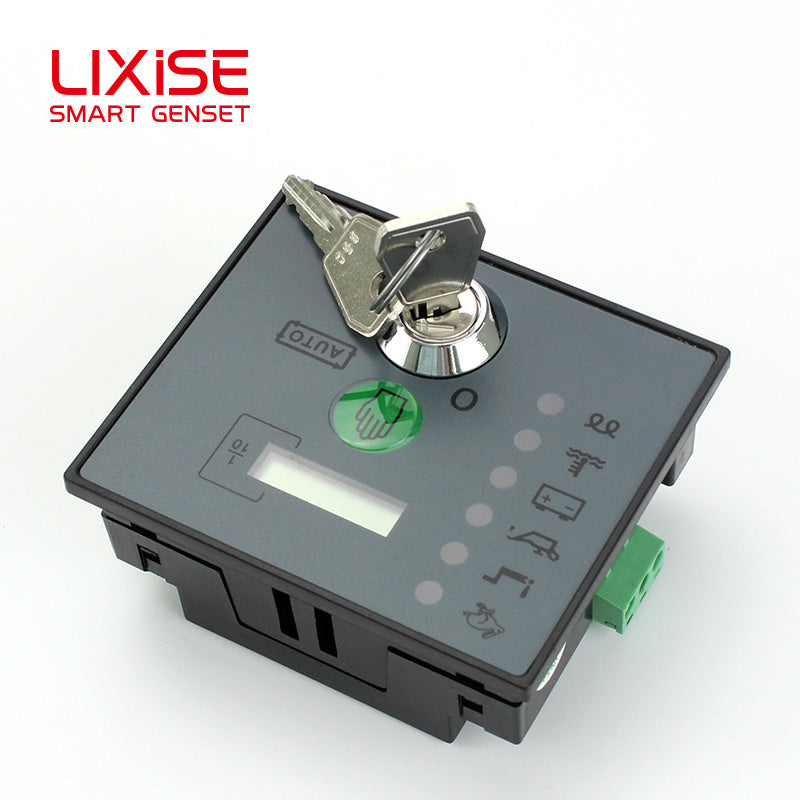

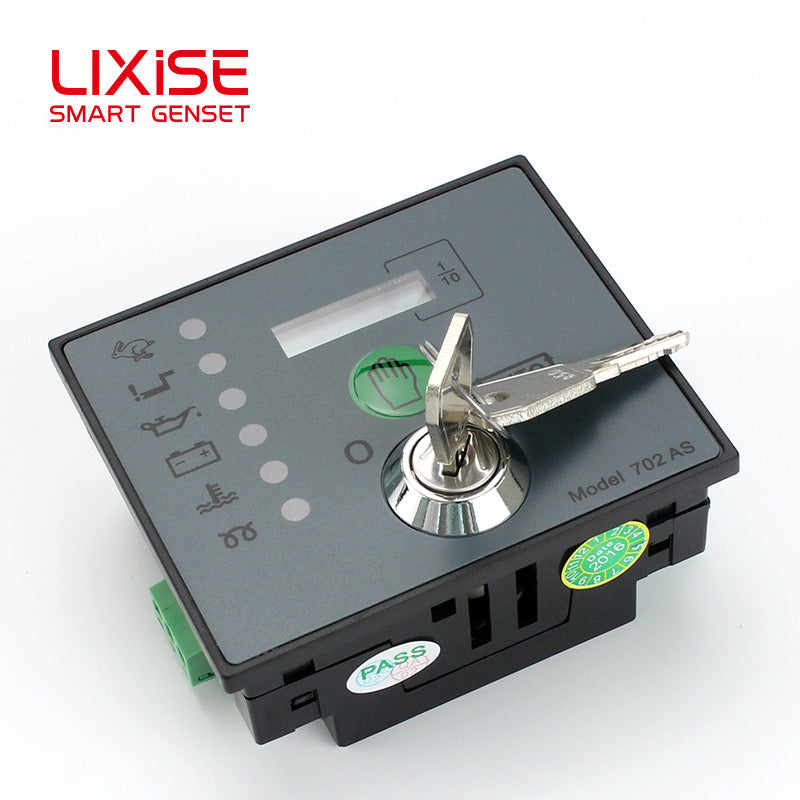

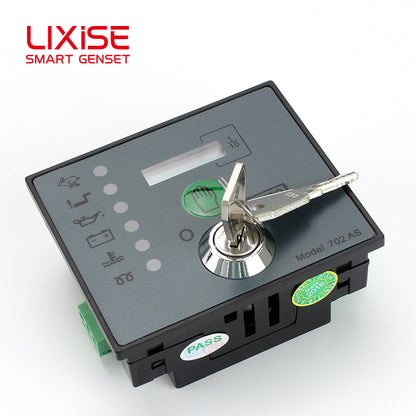

LIXiSE 702AS is a professional engine control module designed to operate diesel engines via front panel key switch and physical buttons. It executes engine start/stop logic, monitors all running parameters, and triggers automatic engine shutdown once faults occur. Built-in LED indicators pinpoint the exact fault source to deliver accurate first-up fault alerts.
The auto-start variant of 702AS supports remote switch input to launch full automatic startup sequences without manual operation. Equipped with a tamper-proof LCD hour meter, it permanently records total engine running time for maintenance tracking.
This controller adopts wide 8~35VDC power supply design, perfectly compatible with various genset battery voltage environments. Powered by a 32-bit ARM microcontroller with hardware watchdog, it eliminates crash risks and guarantees stable program operation. Standard 67*67mm cutout for embedded installation, with flame-retardant ABS plastic housing for industrial durability.

Core Functions & Protection

  1. Full Fault Protection & LED Alarm Indication

    Built-in protection for low oil pressure, high water/cylinder temperature, overspeed, emergency stop, start failure; front panel LED lights display all running and alarm status clearly.
  2. Complete Engine Control Logic
    • Alternator excitation charging function
    • Idle speed control + power-off shutdown function
    • Speed signal collected from generator output frequency

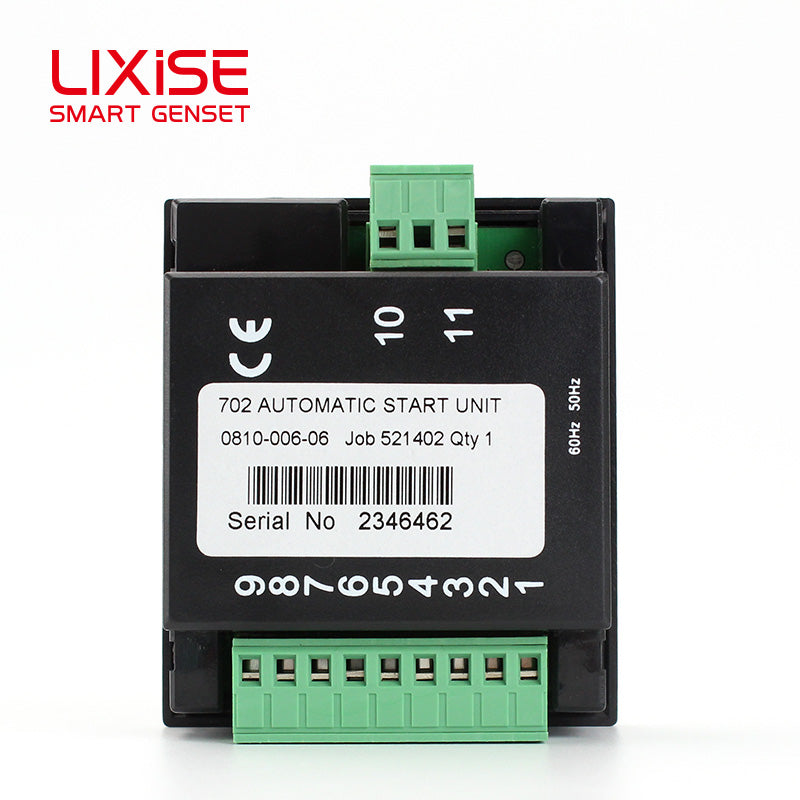

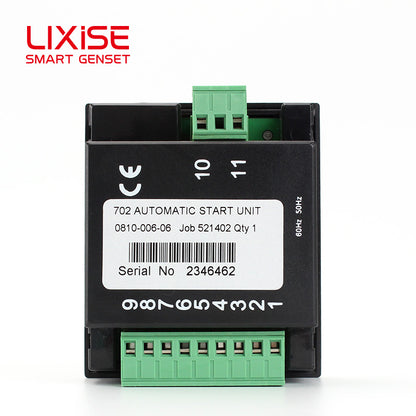

  3. Multi-Channel Output Ports
    • 2 fixed relay outputs: fuel output, starter motor output
    • 3 programmable relay outputs, configurable as common alarm output, preheating output, idle control, shutdown output and more
  4. USB PC Parameter Configuration

    Standard USB communication port allows direct connection to computer, all adjustable parameters can be set and calibrated via PC software.
  5. Anti-Tamper LCD Hour Counter

    Non-modifiable running hour meter to record total engine runtime, prevent data tampering.
  6. Wide Voltage & Stable Hardware

    DC 8~35V wide working voltage; hardware watchdog design to avoid system crash; 32-bit ARM chip for high-speed data processing.

Technical Specifications

  • Model: 702AS
  • Operating Voltage: DC 8V ~ 35V
  • Processor: 32-bit ARM single-chip microcomputer
  • Housing Material: Flame-retardant ABS plastic
  • Cutout Size: 67mm × 67mm
  • Output Ports: 2 fixed relay outputs + 3 programmable relay outputs
  • Communication Interface: USB (PC parameter setting)
  • Speed Sampling: Generator frequency signal
  • Display: LED status indicators + tamper-proof LCD hour counter
  • Working Temperature: -25℃ ~ +70℃
  • Application: Single diesel generator set, backup power unit, pump engine

Application Scenarios

Suitable for all types of single diesel gensets, standby power generators, diesel water pump units, widely used in factories, construction sites, residential backup power, hospitals, communication base stations and other industrial power supply equipment.

Product Advantages

  1. Dual operation modes: manual key operation & remote auto start for flexible on-site use
  2. Comprehensive multi-layer engine safety protection to avoid equipment damage caused by abnormal conditions
  3. USB one-click parameter adjustment, convenient batch configuration for engineering projects
  4. Anti-tamper hour meter for standardized equipment maintenance management
  5. Standard embedded cutout size, universal replacement for most 702 series controllers
  6. Flame-retardant shell + wide voltage design, stable operation in harsh industrial environments
