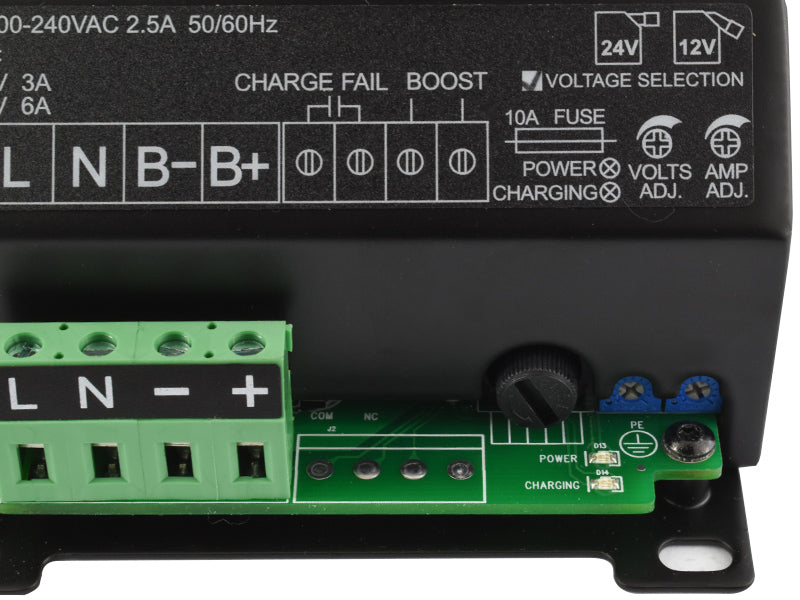

12V / 24V voltage selection, the use of imported high quality DIP makes it more reliable and stable, easily toggle switch to select.
Take Switch Power Structure, wide range of AC input voltage, small volume, light weight, high efficience.
Using Multistage Charging Method (constant voltage, constant current, trickle float, full stop) automatic charging, fully charged according to the battery charging characteristics to prevent lead-acid battery overcharge, can maximize battery life.
With the flow, short circuit, reverse polarity protection.
Charging voltage and current values can be adjusted at the scene by the potentiometer.
Suitable for 24V battery pack, rated charging current is 3A.
Suitable for 12V battery pack, rated charging current is 6A.
Charging status LED indication: Power Indication (green), Charging Indication (red), filled with lights off.
