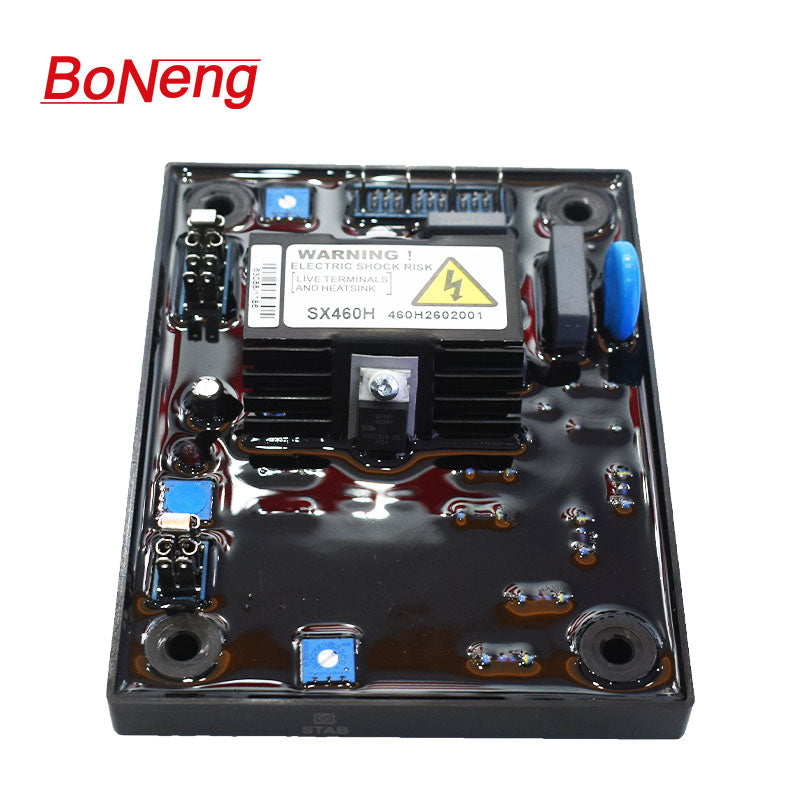

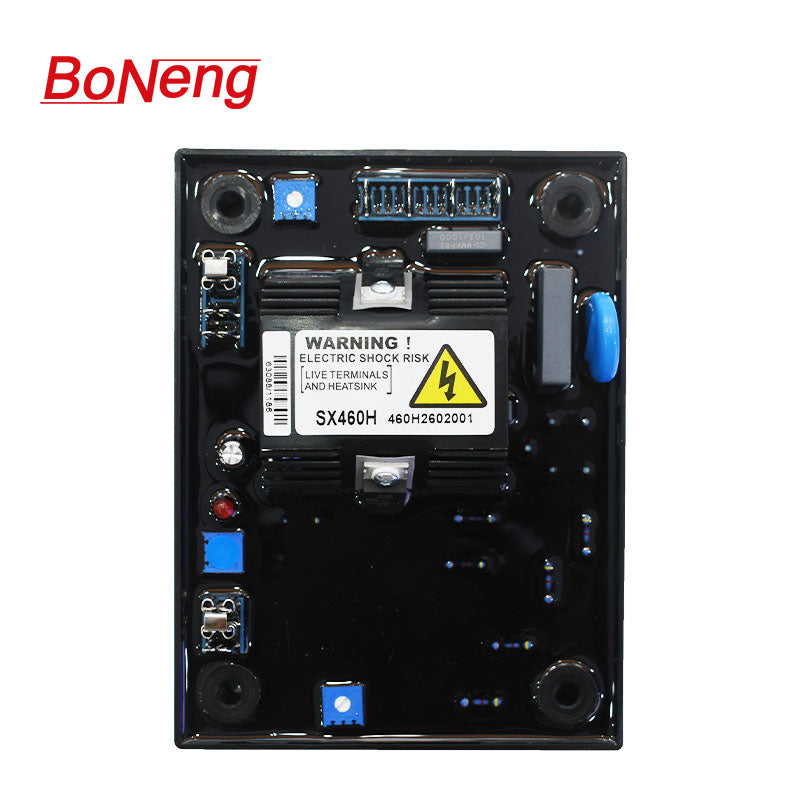

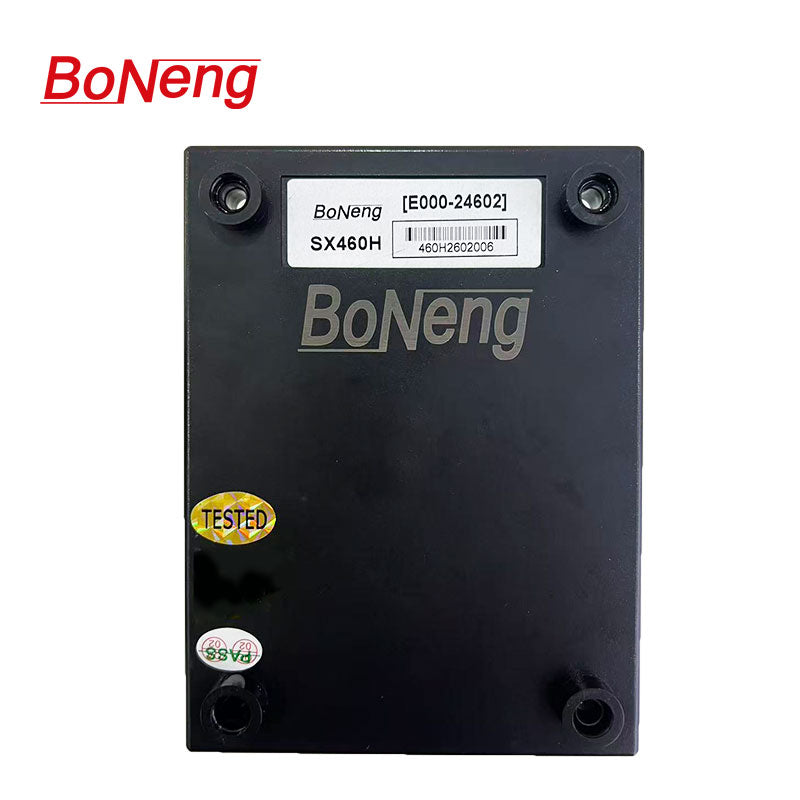

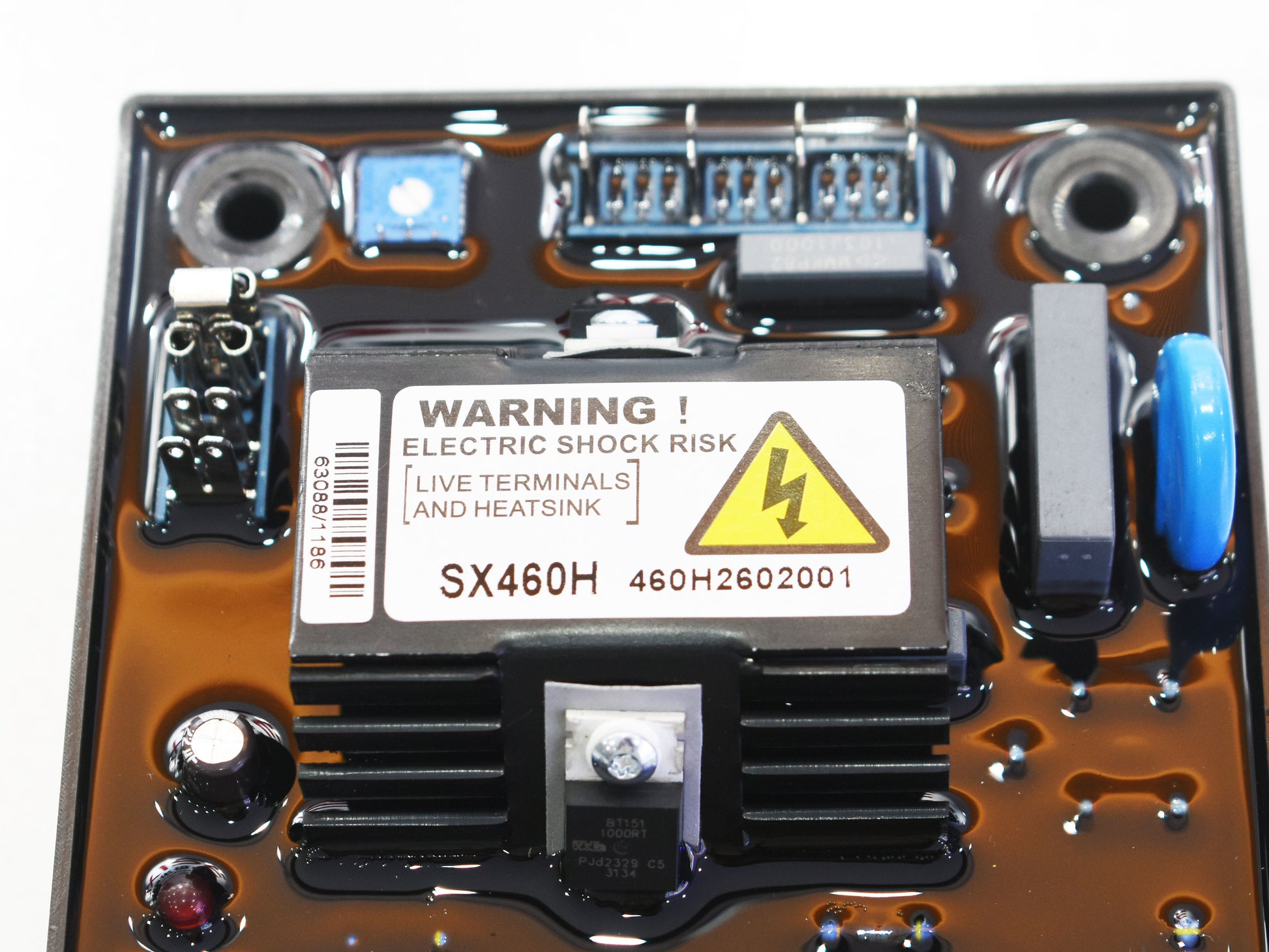

BoNeng SX460H AVR Generator Parts

Project

Parameter content

Sensing and power input

Voltage 95-132 VAC or 190-264 VAC

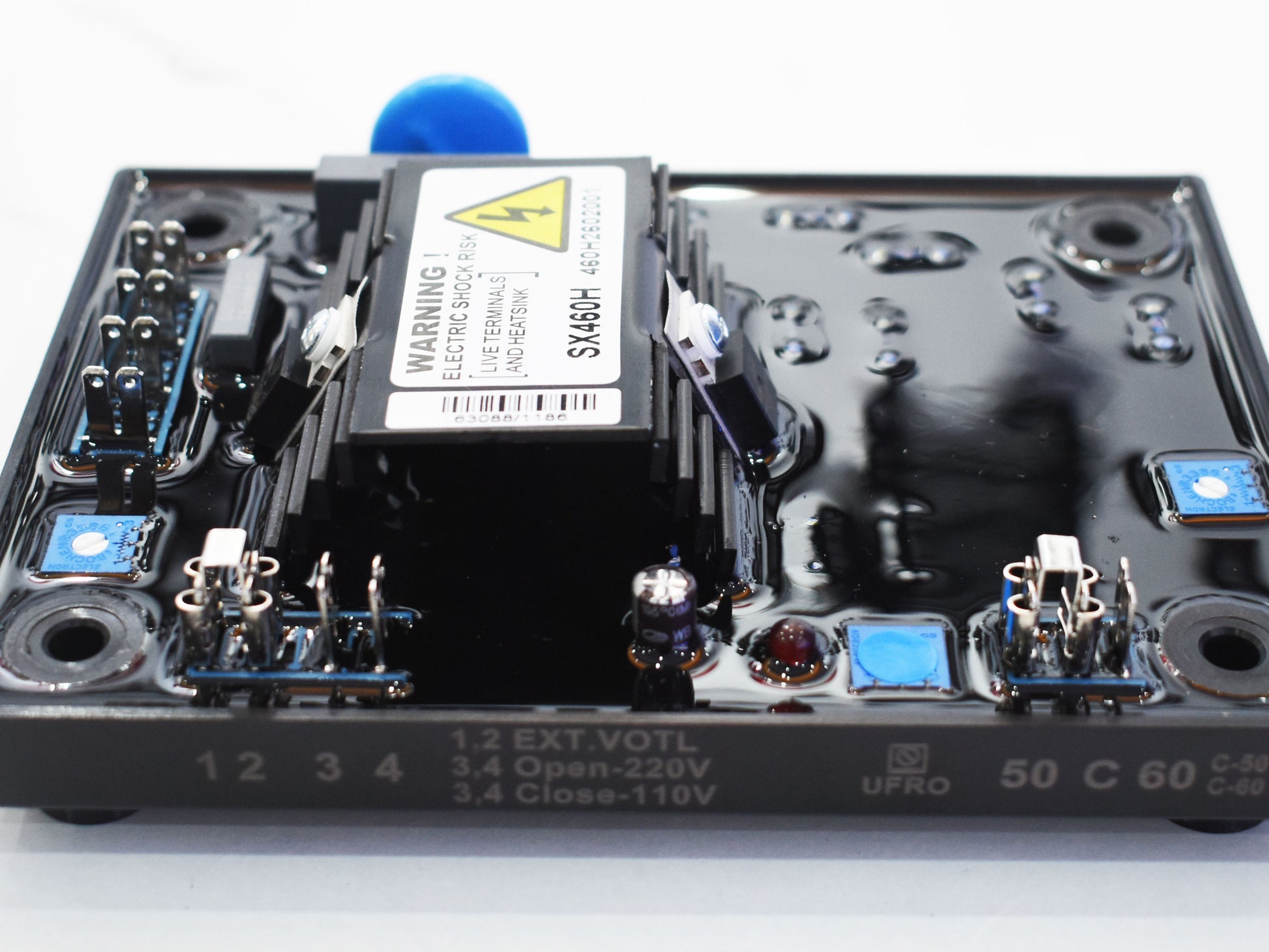

Single phase setting with jumper copper

Frequency 50/60 Hz is set by jumper copper

Output

90 VDC maximum at 207 VAC input

Electric current：continuity 4A，Intermittent 6A for 10 secs

Output impedance：15ohms minimum

External voltage regulation

±7% with 1 k ohm 1 watt trimmer

Slow voltage build up time

2S

Voltage regulation rate

<± 1.5% (engine speed variation within 4%)

Minimum build up voltage

Residual magnetic voltage above 5 VAC is required at AVR input terminal

Temperature stability

0.05% voltage drift per ℃ change

Power consumption

10 Watt maximum

Low frequency protection

Inflection point value: 95% Hz

Slope: 170% at 30 Hz

size

135mm L*100mm W

Weight

0.45KG ± 2%
