Product Overview

The LXC9320 series automation controller is designed for automatic control and monitoring systems of single diesel generator sets. Adopting 32-bit microprocessor technology, it realizes automatic start/stop of gensets, high-precision measurement of multiple parameters, alarm & protection, as well as three-remote functions (remote measurement, remote signaling, remote control).

Equipped with a large 240*128 graphical LCD display, it shows all critical parameters on a single page with page saving function. Multi-language interfaces including Chinese, English, Russian and Spanish are supported. All parameters can be adjusted directly via the front panel, fine-tuned by PC through USB port, or remotely monitored & adjusted via RS485 or GPRS.

Featuring compact layout, simple wiring and superior reliability, this automation controller is widely applicable to various generator sets and fire water pump units.

Core Functions & Technical Advantages

Load Rate Calculation & Monitoring

Calculates average load rate to track genset operating status and prevent overload operation.
Customizable Startup Screen

Users can customize the boot interface with company name, contact information, logo and brand slogans.
Intelligent Maintenance Reminder

Automatically accumulates total running hours and sends timely maintenance alerts; supports 3 groups of maintenance cycles with configurable post-expiry actions (warning or alarm shutdown).

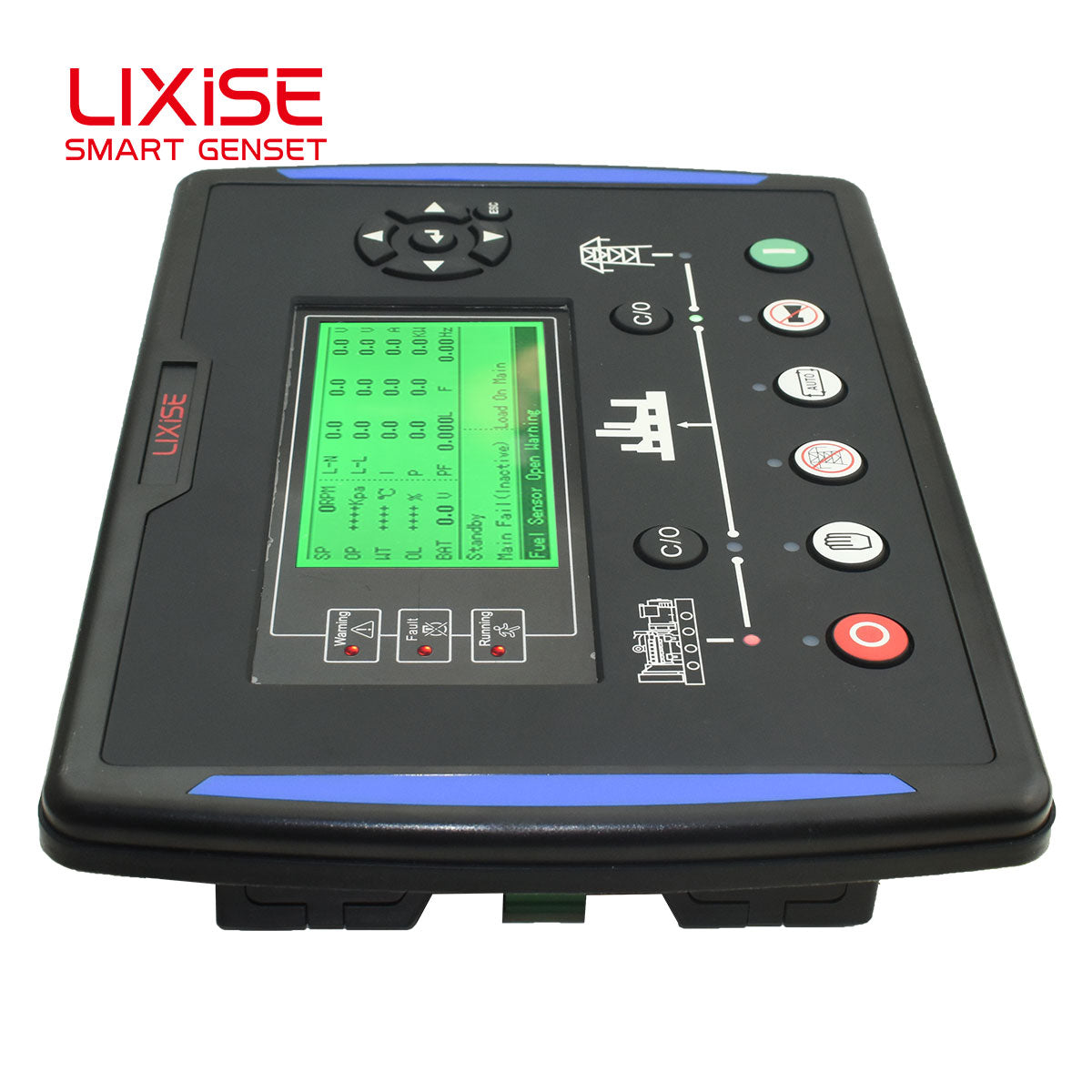

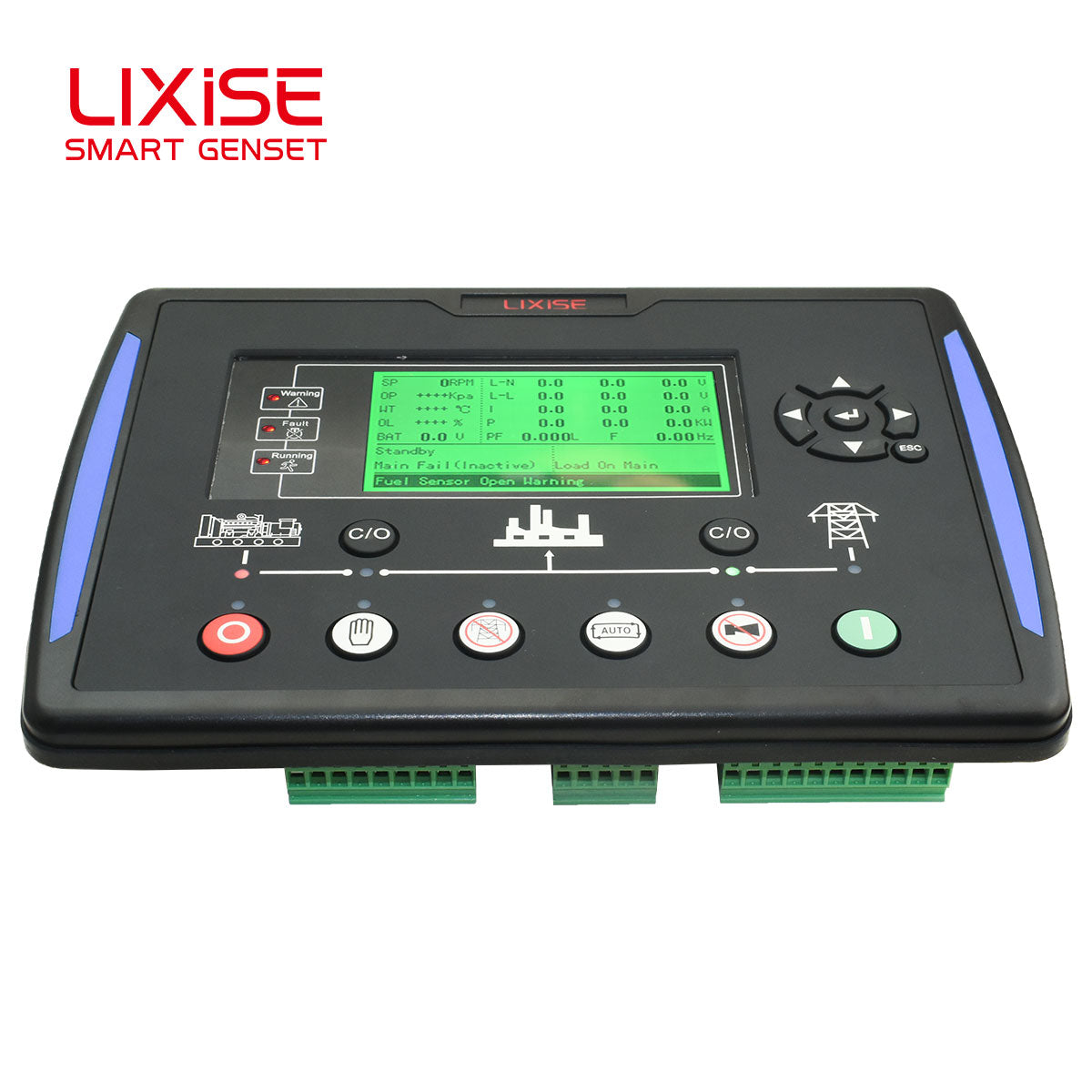

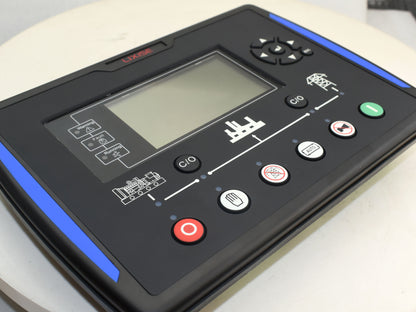

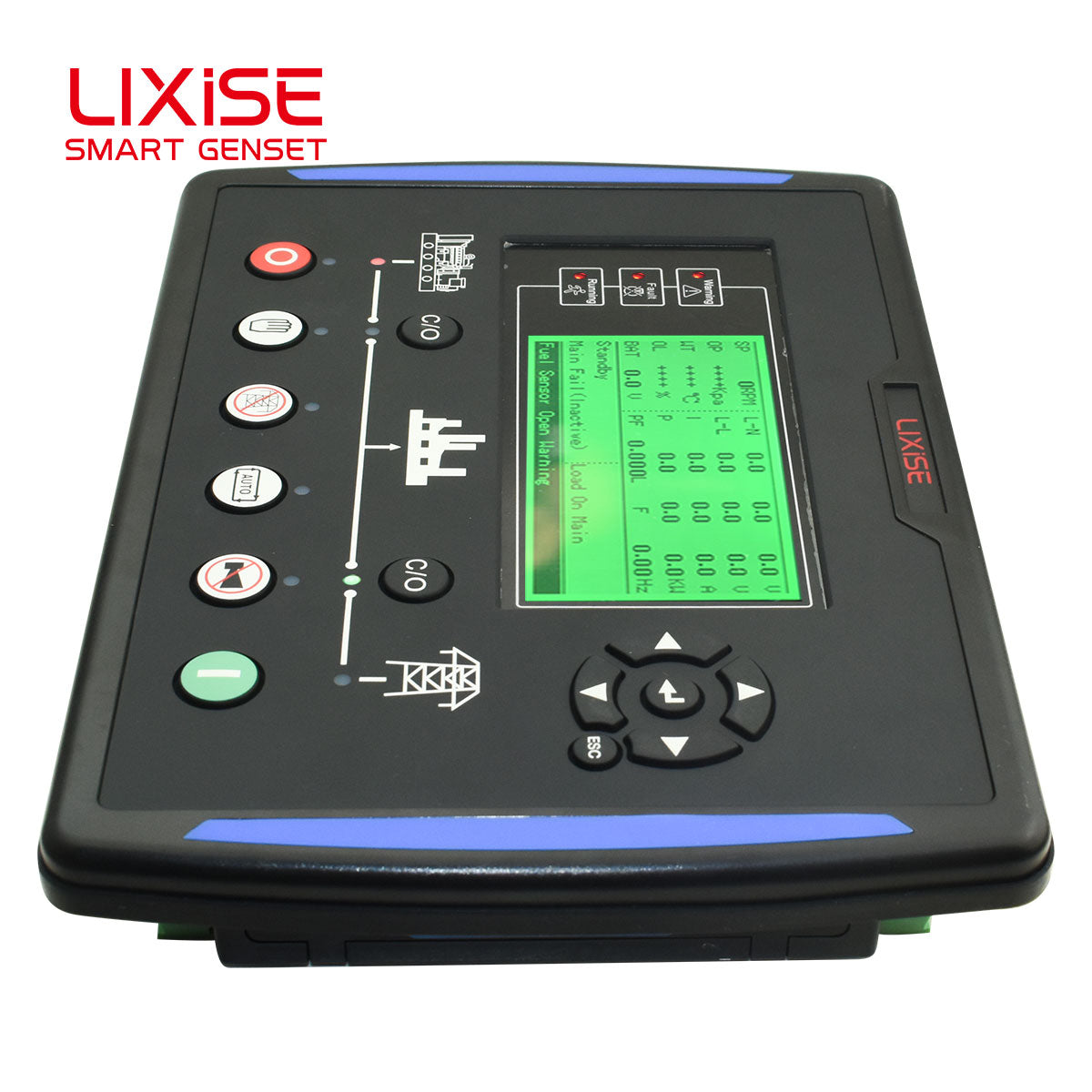

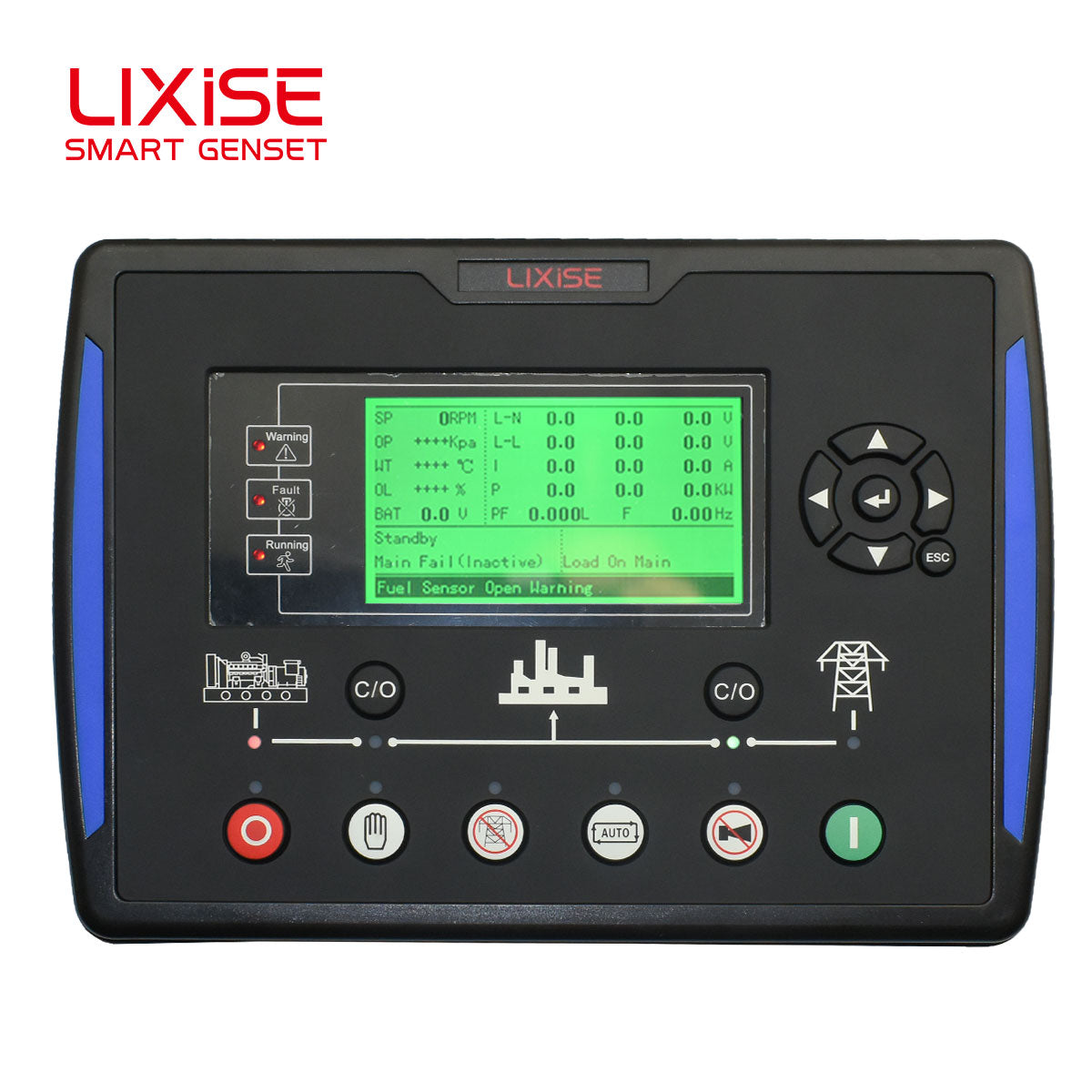

240×128 Large Backlit LCD Screen

Displays most operational data on one single page to eliminate frequent page switching for easy viewing. The screen cover adopts wear-resistant acrylic hard panel with anti-scratch performance. The silicone panel & buttons withstand wide temperature fluctuations and deliver excellent waterproof performance.
Multi-Language Support

Built-in Chinese, English, Russian and Spanish operation interfaces for global deployment.
Plug-and-Play USB Port

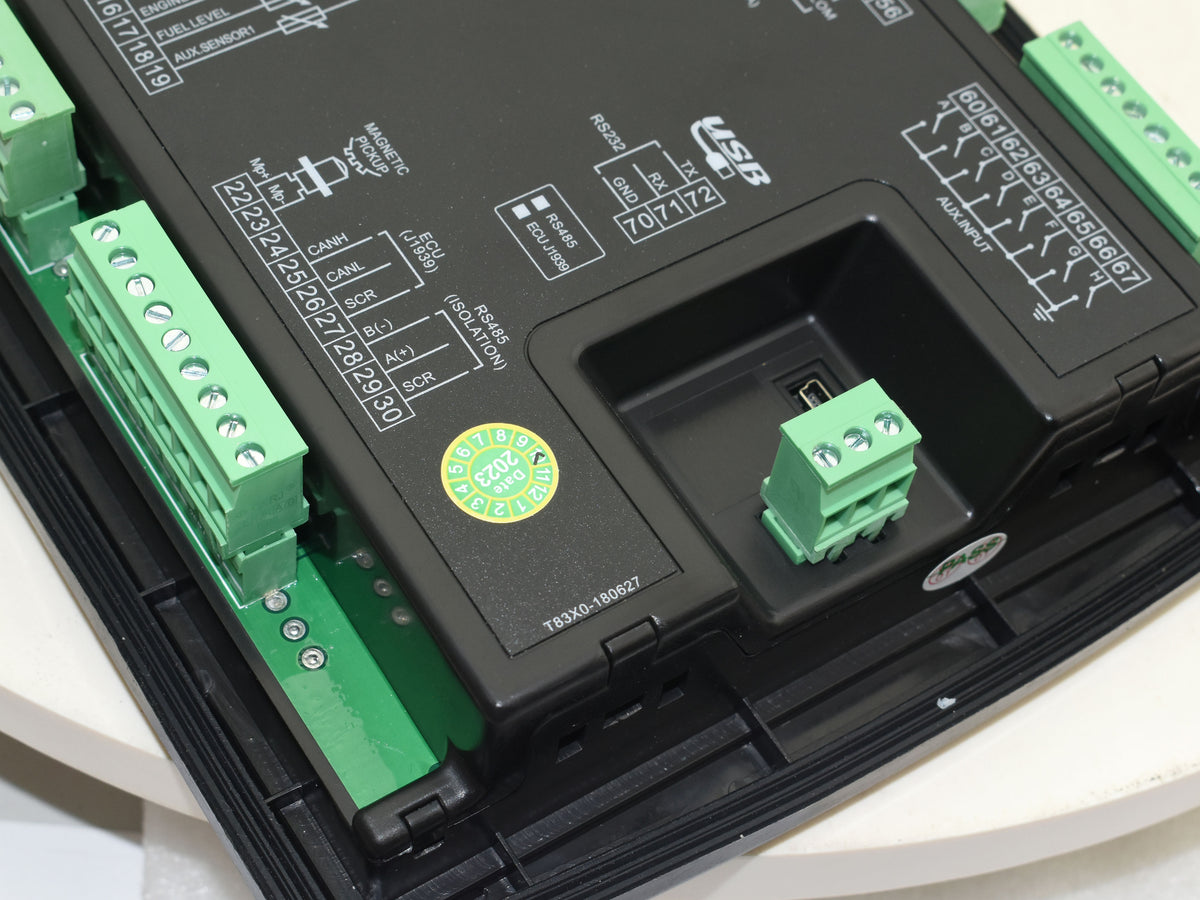

Facilitates on-site debugging, parameter configuration and program upgrade. Standard interfaces: USB & RS232; optional RS485 communication port.
200 Historical Fault Records (Black Box Function)

Stores up to 200 fault logs, capturing 25 groups of detailed real-time parameters at the moment of alarms or failures (oil pressure, water temperature, voltage, current, power, etc.) for efficient fault diagnosis and maintenance.
Real-Time Clock & Scheduled Exercise Run

Built-in RTC clock; programmable 2 groups of automatic scheduled test running cycles.
Comprehensive Mains & Generator Power Detection & Protection

Mains monitoring & alarm: overvoltage, undervoltage, overfrequency, underfrequency, phase loss, reverse phase sequence
Generator monitoring & protection: overvoltage, undervoltage, overfrequency, underfrequency, overcurrent, phase loss, reverse phase sequence, with automatic shutdown protection triggered by abnormal conditions. Multiple alarms circulate on the warning bar for clear troubleshooting.

Two-Tier Password Authority Management

Dual-level user access permissions to avoid unauthorized parameter modification.
High-Integration 32-bit ARM MCU Hardware

Highly integrated hardware architecture greatly improves operational stability and reliability.
Dual Parameter Configuration Methods & Non-Volatile Storage

99% of parameters are adjustable directly on the front panel for field commissioning. All settings can also be modified by PC via USB, RS232 or RS485 interfaces. Parameters are stored in onboard FLASH/EEPROM memory without data loss after power failure.
Universal Power Grid Compatibility

Compatible with 3-phase 4-wire, 3-phase 3-wire, single-phase 2-wire and 2-phase 3-wire (120/240V) power systems supporting 50/60Hz frequency.
Full-Parameter Data Acquisition

Collects and displays mains/generator three-phase voltage, three-phase current, phase sequence, frequency, active power, reactive power, power factor, electric energy, plus all engine sensor readings.
Flexible Analog Sensor Configuration

3 fixed analog input channels for temperature, oil pressure and liquid level sensors. Multiple standard sensor curves are preloaded, and fully customizable sensor curves are supported.
Full Control & ATS Switching Logic

Realizes automatic start/stop of diesel & natural gas gensets, automatic closing/opening of ATS transfer switches, plus complete fault display and protective interlock logic.
Wide DC Power Supply Range

Operates on 8~35VDC power supply, compatible with all standard starter battery voltages. Maintains stable operation for 3 seconds under instantaneous ultra-low voltage during cranking.
Dual Application Modes

Suitable for generator sets and fire water pump units; can also work as a standalone indicator meter (only display & alarm output, no relay actuation).
IP55 Waterproof Enclosure Design

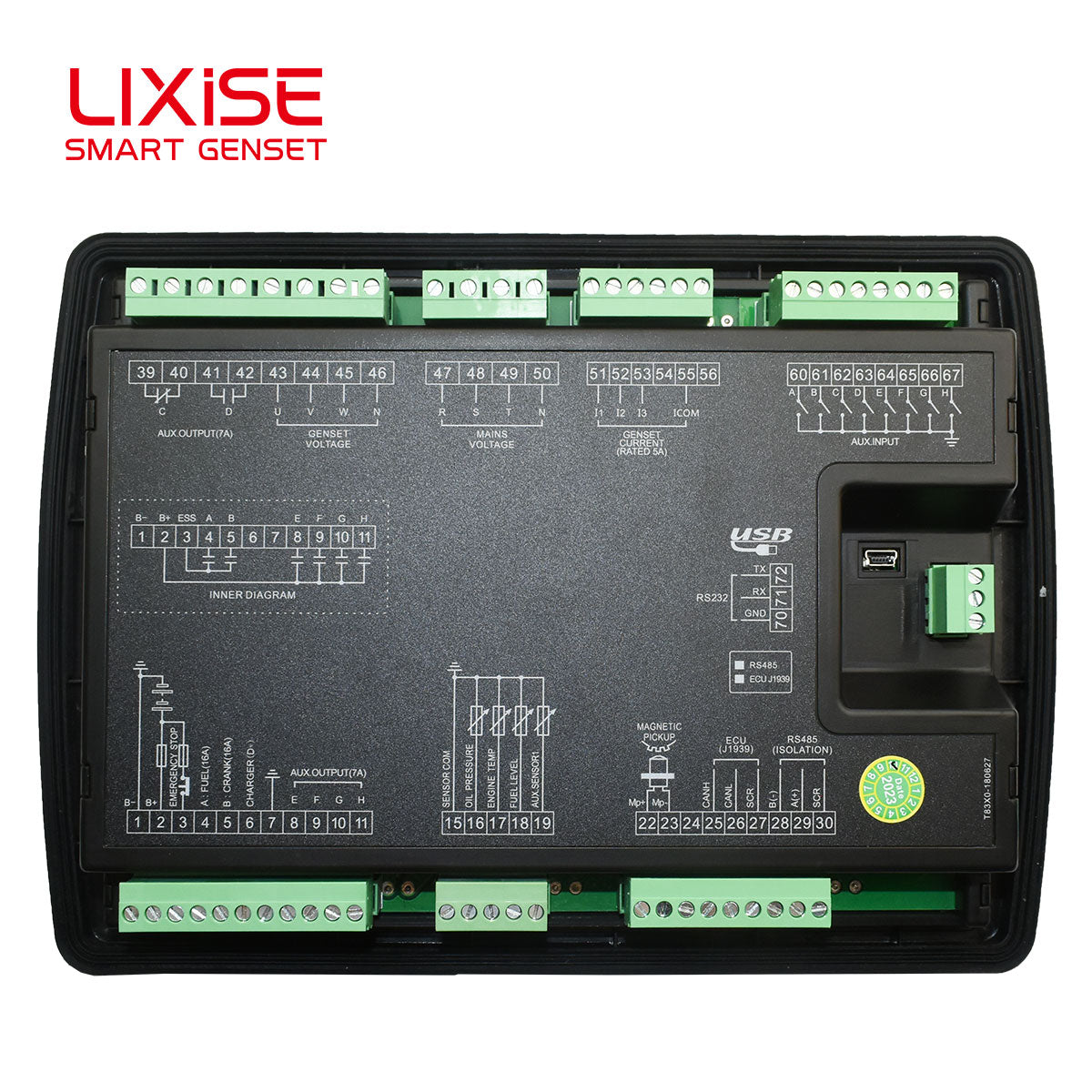

Rubber sealing ring between the housing and control panel delivers IP55 ingress protection rating. Adopts modular structure, flame-retardant ABS casing and detachable pluggable terminal blocks for embedded panel mounting, featuring compact size and easy installation & wiring.
Standard Modbus Communication Protocol

Implements three-remote monitoring & control functions via Modbus RTU over RS232/USB/RS485 ports for centralized remote monitoring system integration.
