LIXISE LXC8320 Full Automatic AMF Generator Controller ATS Genset Control Panel

Product Overview

Core Advantages

1. Full AMF Automatic Transfer Function


   Real-time continuously monitor city mains voltage, phase sequence and frequency. When mains power fails or exceeds threshold, the controller auto starts the genset; once mains recovers stably, it executes cooling shutdown and switches ATS back to grid power, realizing zero-manual power switching for uninterrupted power supply.

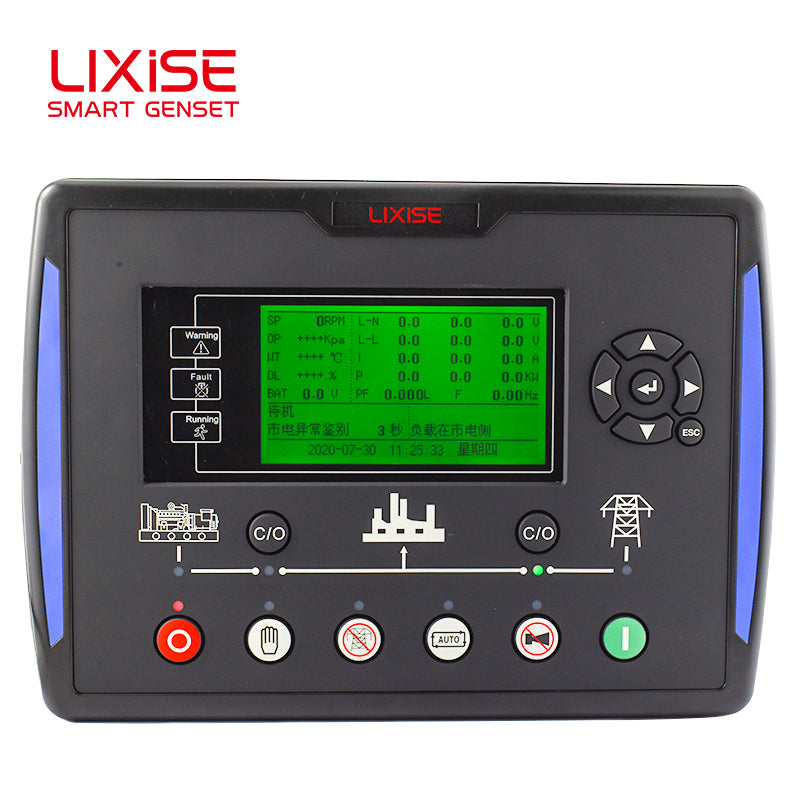

2. Large Screen Adaptive LCD Display


   240*128 high-definition single-page full data display without page flipping; built-in temperature automatic contrast adjustment technology, normal clear display under -32℃ ~ +65℃ harsh environment. Supports 4 switchable languages: Chinese, English, Spanish, Russian, meeting global market demands.
3. Industry-leading Black Box Fault Recording


   Original black box storage function, stores up to 200 fault records with 25 groups of real-time running parameters at failure moment. Technicians can quickly locate root causes via PC debugging, greatly reducing after-sales maintenance time and genset downtime.

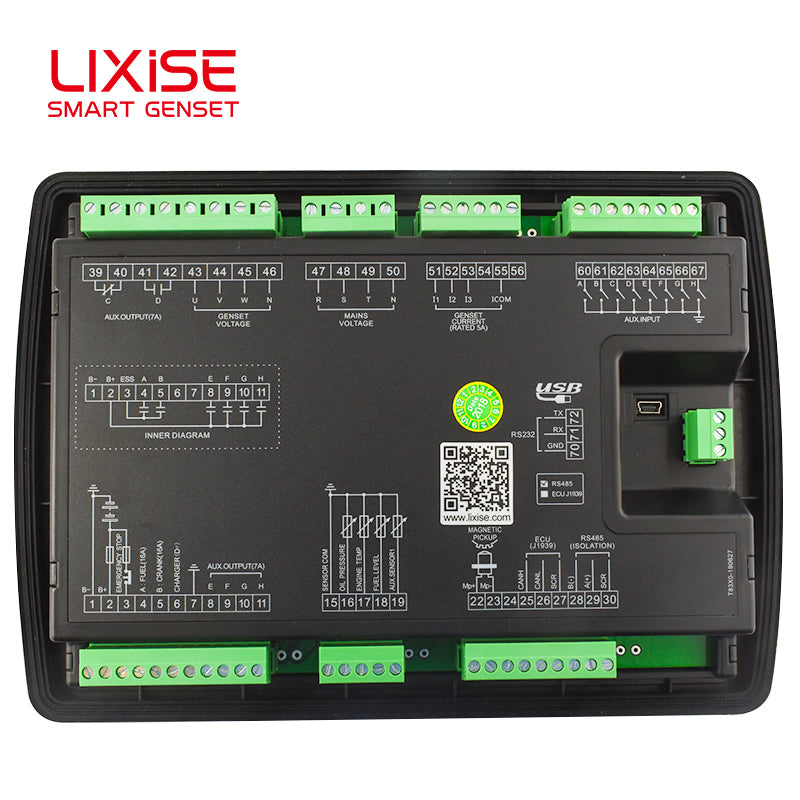

4. Dual Communication Interfaces for Easy Debugging


   Equipped with USB + RS232 dual communication ports. Directly connect PC via USB cable for offline parameter modification, calibration and fault data export without extra adapters. RS485 expansion is available for remote cloud monitoring and Modbus communication access.
5. Complete Multi-layer Safety Protection


   Comprehensive alarm and shutdown protection covering low oil pressure, high water temperature, overspeed, underspeed, mains over/under voltage, phase loss, speed signal loss and emergency stop. Two-level password authority management prevents misoperation of parameter settings.
6. Universal Wide Voltage & Industrial Durability


   DC 8–35V wide universal operating voltage, compatible with all 12V/24V genset battery systems. Flame-retardant ABS front panel with IP55 waterproof rubber ring, dustproof, anti-vibration design, stable operation in farm, mine, construction site and outdoor harsh working conditions.
7. Programmable Timing Maintenance & Exercise Function


   Built-in real-time clock, support 2 groups of programmable regular exercise cycle to extend engine service life; customizable maintenance reminder timing to avoid equipment damage caused by overdue maintenance.
