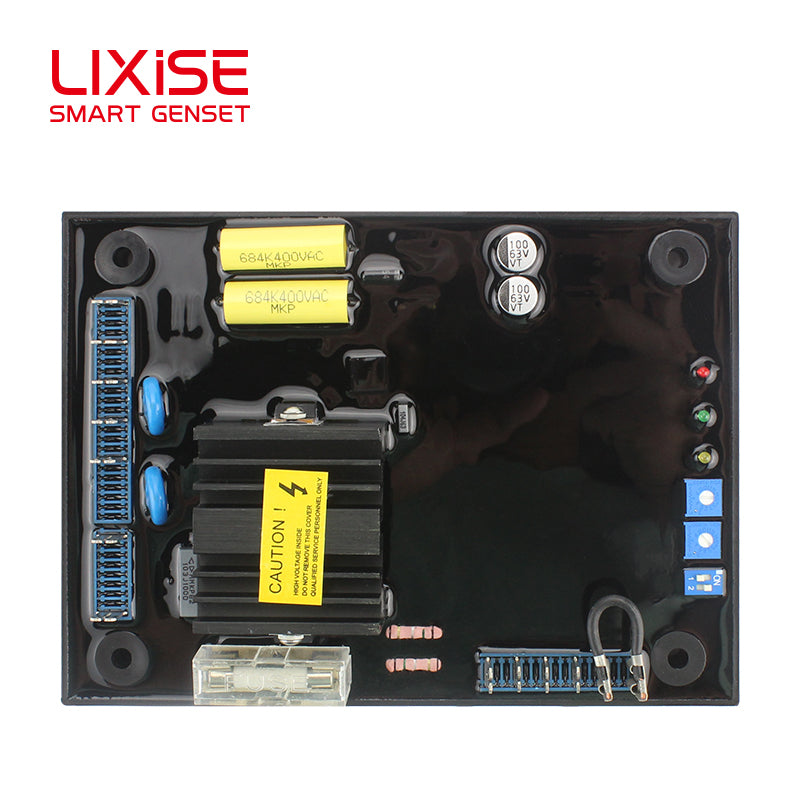

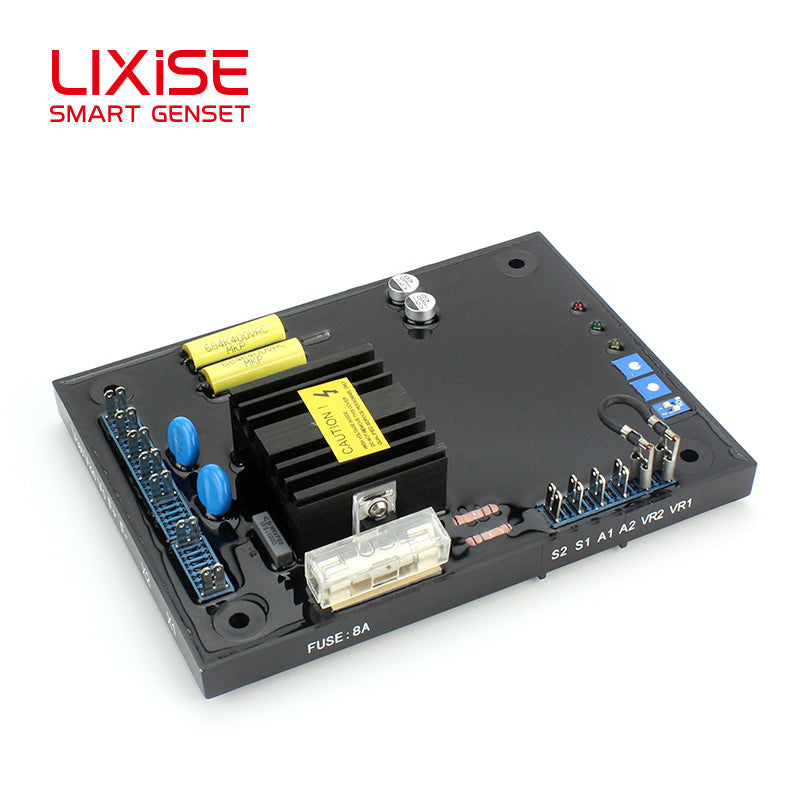

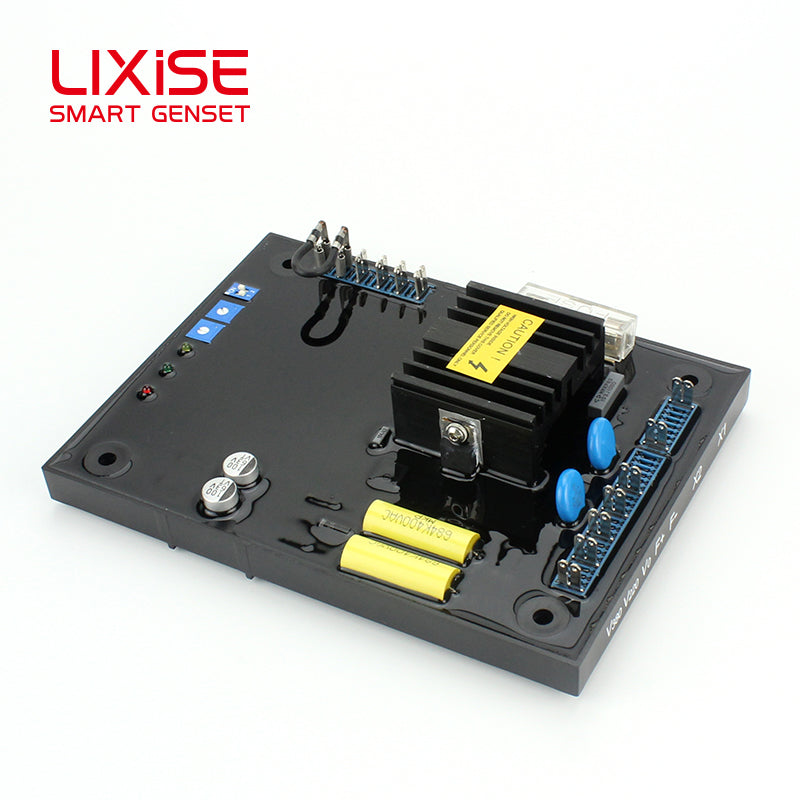

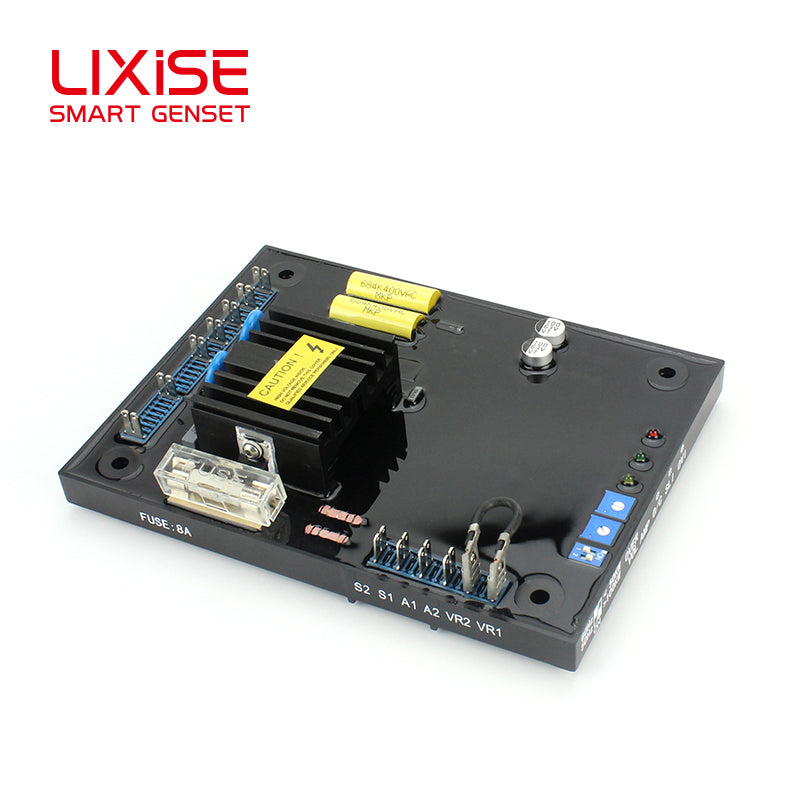

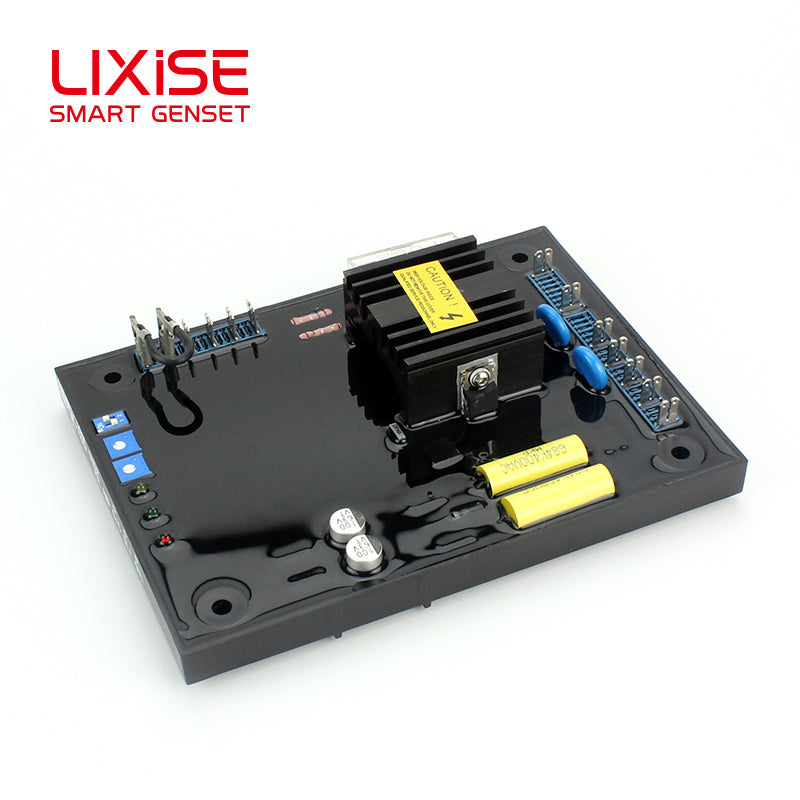

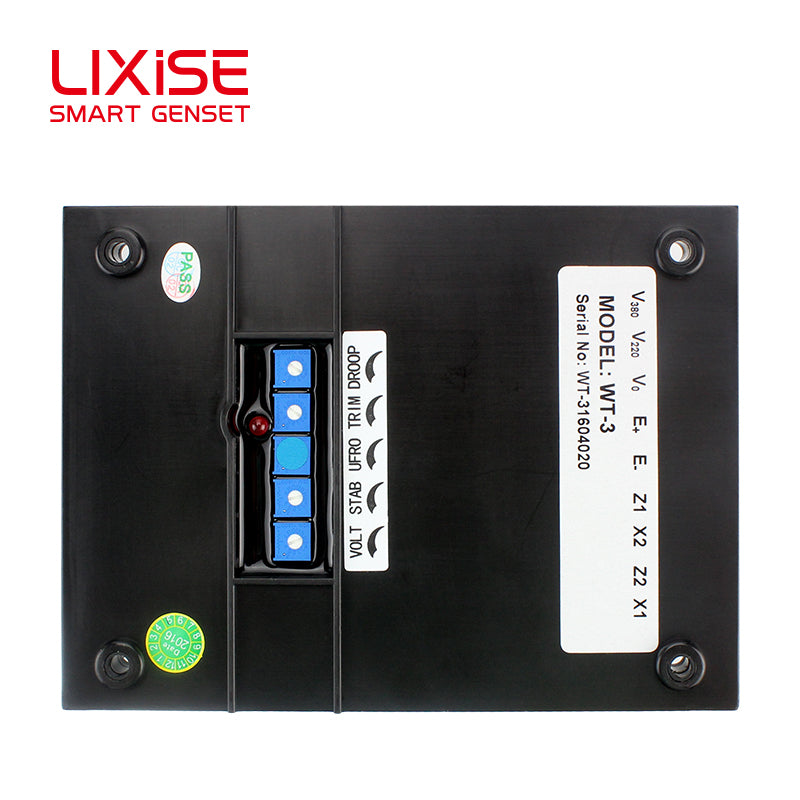

LIXiSE WT-3 Generator Stabilizer | ±1% Precision Voltage Regulation With Under-Speed Protection | Manufacturer

Complete Technical Parameters

Input Parameters

1. AC Power Input: 180~250Vac, 50/60Hz, Max power capacity 1000VA at 240Vac
2. Sensing Voltage (Single Phase, 50/60Hz)
   • 220V system: 180~250Vac
   • 400V system: 350~480Vac
3. Power Consumption: 5VA sensing power, max 40W total power consumption

DC Excitation Output

1. Continuous DC Output: 8A, 90Vdc @ 220Vac power input
2. Intermittent Peak DC Output: 10A, sustainable for maximum 10 seconds
3. Minimum matching excitation winding resistance: 8Ω

Voltage Regulation Performance

1. Adjustable voltage range: 180~300Vac / 350~480Vac
2. Regulation precision: ±1%
3. Voltage temperature drift: ＜0.05% /℃
4. Dynamic response time: 1.5 seconds
5. Auto voltage build-up: Activates with residual magnetism over 5Vac @25Hz

Parallel Operation Function

Environmental & Mechanical Specifications

1. Operating temperature range: -30℃ ~ +80℃
2. Vibration resistance
   • 12Gs, 5~26Hz
   • Amplitude 0.036 inch, 27~52Hz
   • 5.0Gs, 53~1000Hz
3. Shock resistance: 20Gs on three orthogonal planes
4. Net weight: 0.62kg

Core Product Advantages

1. Thyristor half-wave phase control circuit, stable and mature excitation control solution for brushless generators
2. Dual safety protection: under-speed protection + sensing loss protection to avoid generator damage under abnormal working conditions
3. Ultra-low temperature drift, stable voltage output under wide temperature difference environment
4. Excellent parallel performance with 0~6% adjustable droop, perfectly matched for multiple gensets grid connection
5. Strong environmental adaptability, outstanding vibration and shock resistance, applicable to mobile, marine and construction equipment
6. Automatic residual voltage build-up, no manual excitation required for generator startup
7. Compact lightweight design, easy installation and replacement for all matched brushless alternators
