Product Overview

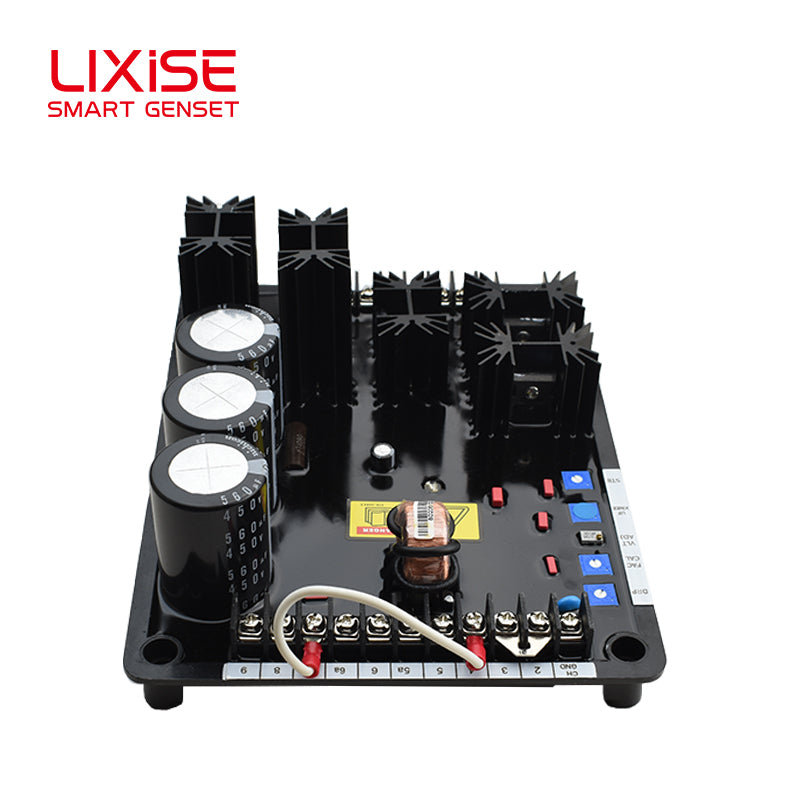

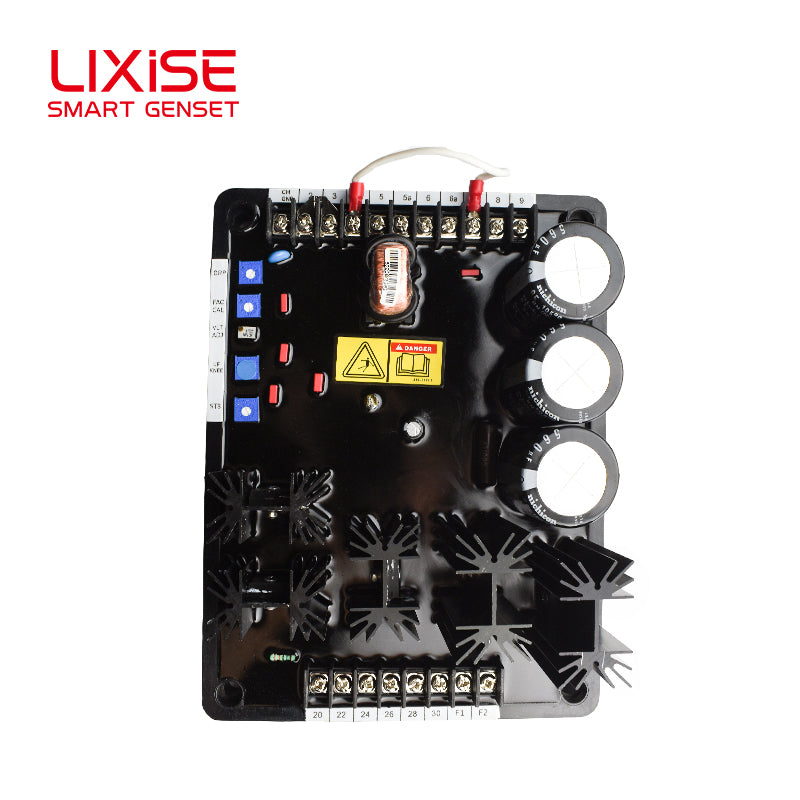

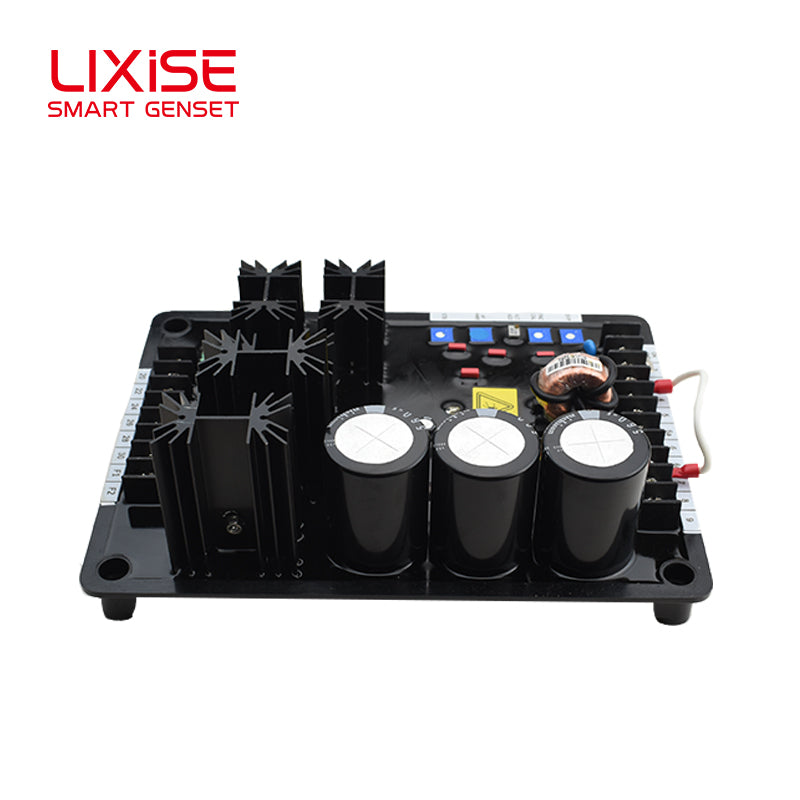

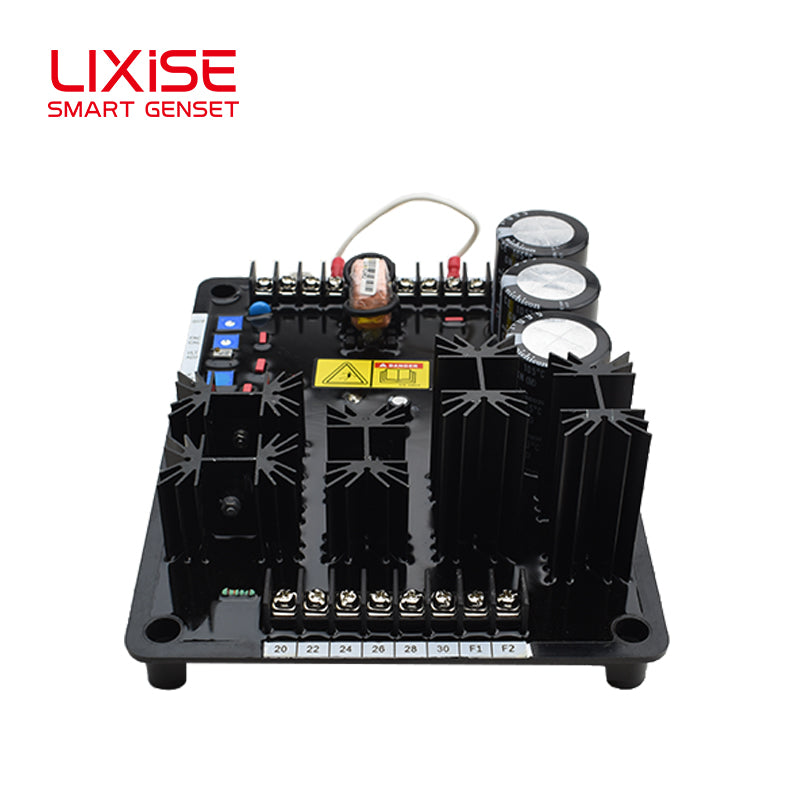

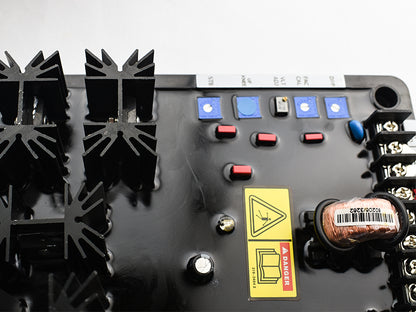

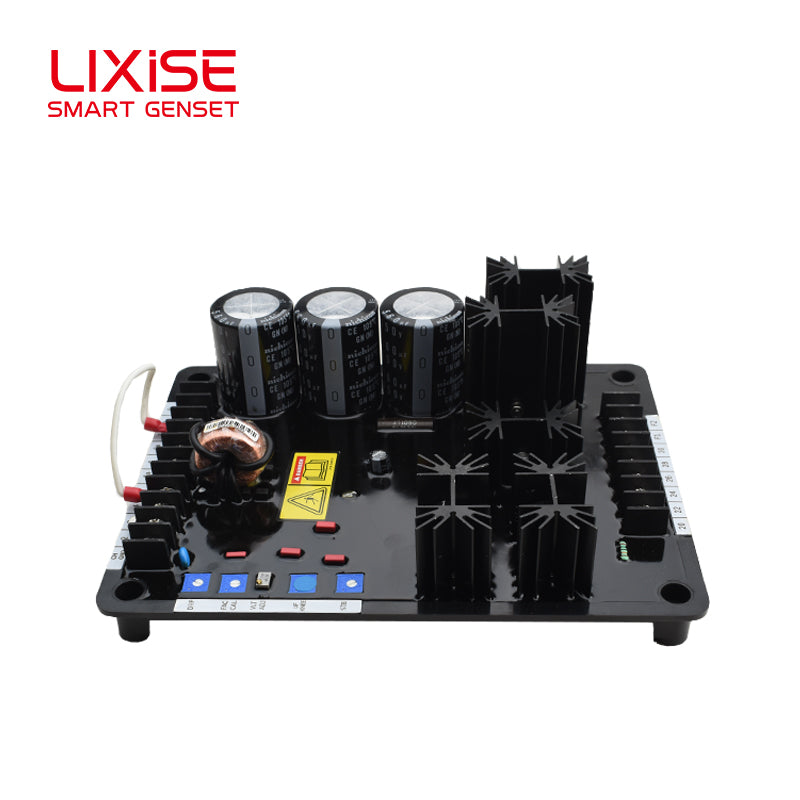

LIXiSE VR6-K65-12B AVR is encapsulated in a sealed plastic housing, specially customized for Caterpillar 50/60Hz traditional brushless generators. It precisely controls DC excitation power of alternators. The regulation principle is to detect generator output voltage, convert AC voltage into DC signal and compare it with internal reference voltage. The generated error signal adjusts DC excitation output to maintain stable constant generator terminal voltage.
Rich Built-in Functions
- Frequency compensation with adjustable slope
- Inverse time over-excitation shutdown protection
- Integrated solid-state voltage build-up circuit
- Flexible voltage sensing: single-phase or three-phase input
- Multiple power supply options: single/three-phase shunt power or permanent magnet power input
- Parallel droop compensation function for multi-generator parallel operation
- Independent accessory input port, compatible with reactive power and power factor controllers
Core Product Advantages
- Custom-designed replacement AVR exclusively for Caterpillar generator units
- Excellent thermal stability: voltage drift less than 0.5% with 40℃ temperature fluctuation
- Multiple protection and adjustable functions to adapt complex working conditions
- Universal single/three-phase sensing & multi power supply mode, wide compatibility
- Built-in parallel droop compensation, meets power station grid connection requirements
Electrical Specifications
- Single-phase: 100~280VAC, 50~400Hz
- Three-phase: 63~105VAC, 50~400Hz
- Max continuous AC load: 1092VA
- AC Sensing Voltage: 90~140VAC, 50/60Hz, single-phase or three-phase
- Thermal Stability: Voltage variation ＜0.5% per 40℃ temperature change
Application
Special spare parts for Caterpillar series brushless generator sets, widely used in industrial standby power, construction equipment, marine power and multi-generator parallel power stations.
