Product Overview

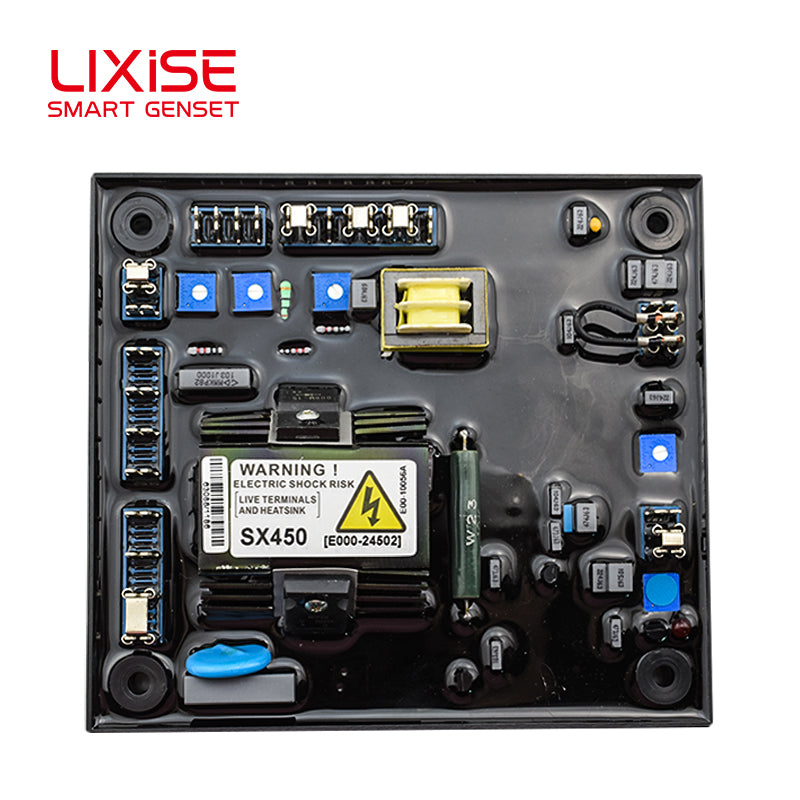

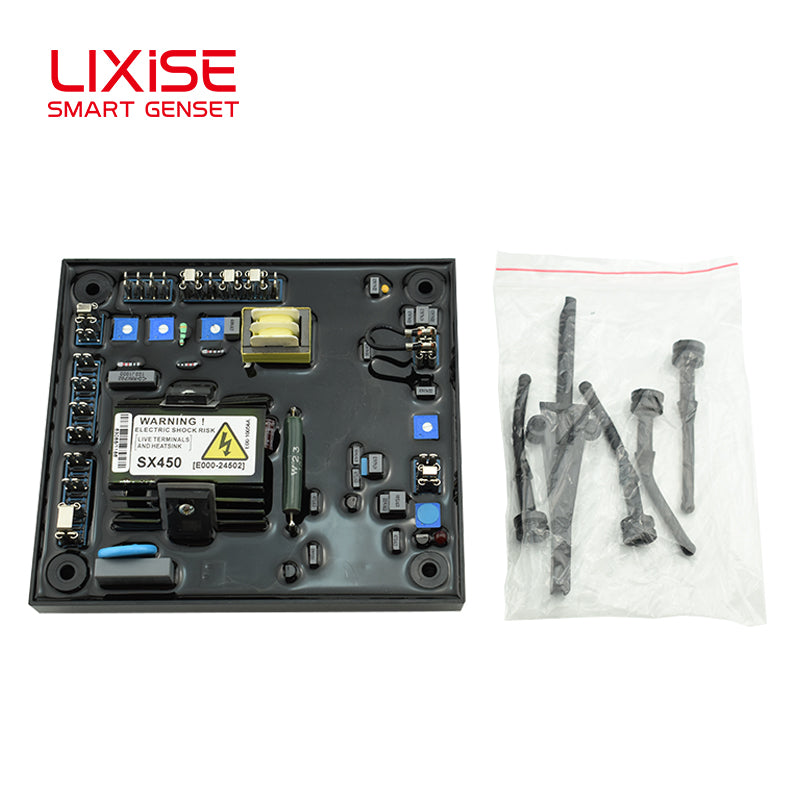

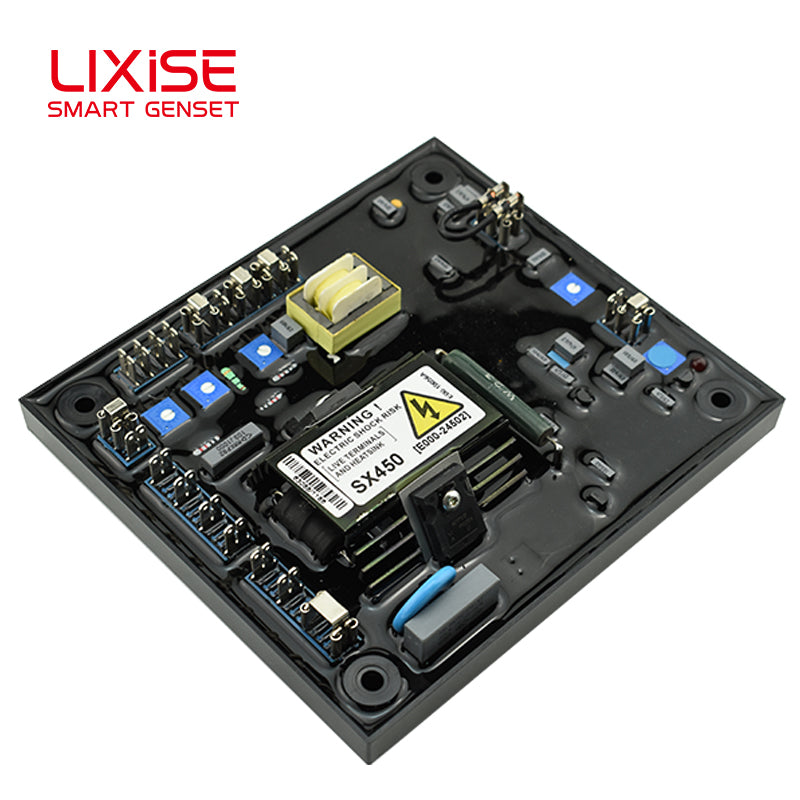

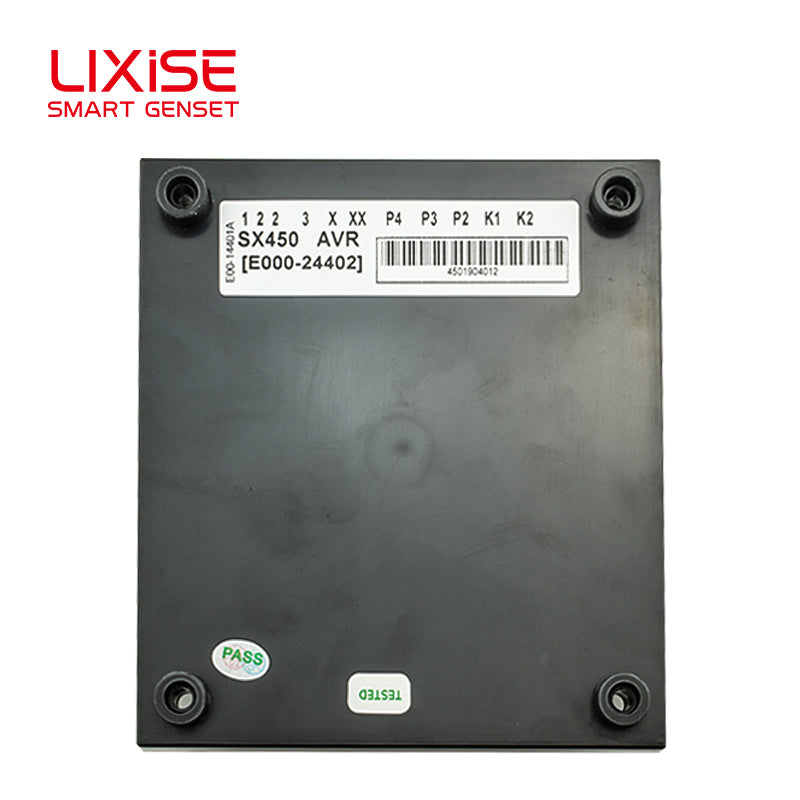

LIXiSE SX450 is a half-wave phase-controlled thyristor automatic voltage regulator, a key part of brushless generator excitation system.
Apart from generator voltage regulation, the AVR circuit is equipped with under-speed and sensing loss protection to guarantee safe and reliable genset operation. High-performance semiconductors are adopted in power circuit to realize stable voltage build-up from residual magnetism. Connected with main stator winding and exciter field winding, it forms closed-loop output voltage control with ±1.5% load regulation and runs smoothly under high temperature.
Superior Temperature Performance
Its temperature drift is controlled within 1.5% at 85℃, while most competitors’ products reach 3%-5% drift under the same temperature. It is highly reliable and suitable for equipment requiring strict voltage stability and continuous high-temperature operation.
Excellent Dynamic Response
- Voltage build-up time: 1.8s
- Residual build-up voltage: 4.2VAC phase voltage
- Full 100% load recovery time: ≤2s
- Voltage change per Celsius degree: ≤0.015%
- AVR response time: 20ms
- Response rate: 2~8V/ms
Strict Quality Control
- 24-hour full rated current online aging test to guarantee long-term stability
- Over 20 professional simulation testing procedures on production lines, 100% qualified delivery
High-Grade Imported Raw Materials
- UK WELLWIN glass glaze resistors, capable of stable operation above 200℃
- US BOURNS potentiometers, smooth adjustment and long service life
- Imported waterproof & moisture-proof AB glue for comprehensive protection
Wide Application
Universal electronic regulating spare parts compatible with most generator units. Widely used in mobile communication base stations, communication equipment, transport vehicles, ships and industrial instruments.
