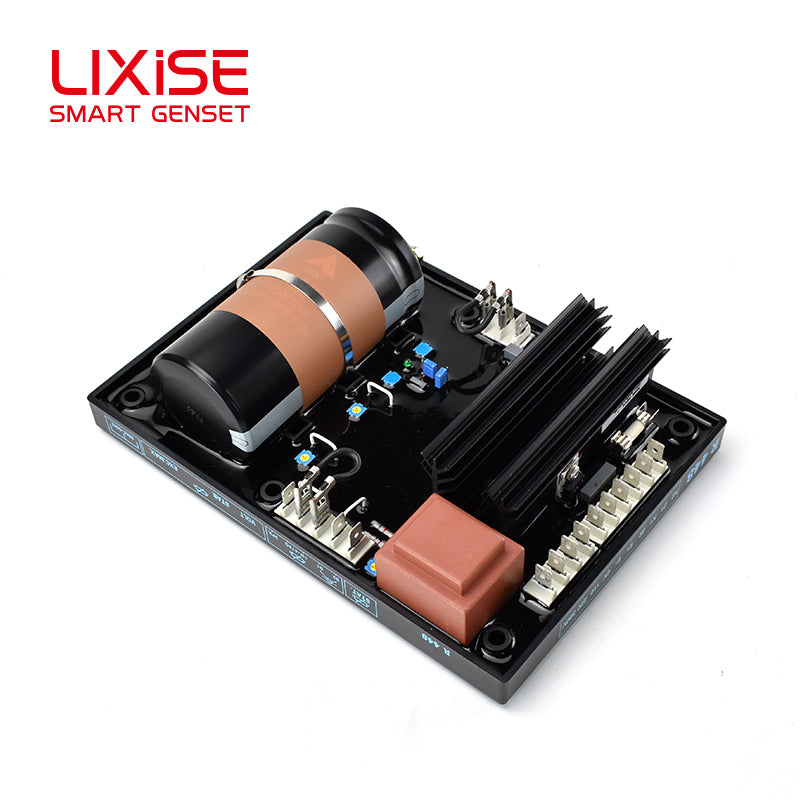

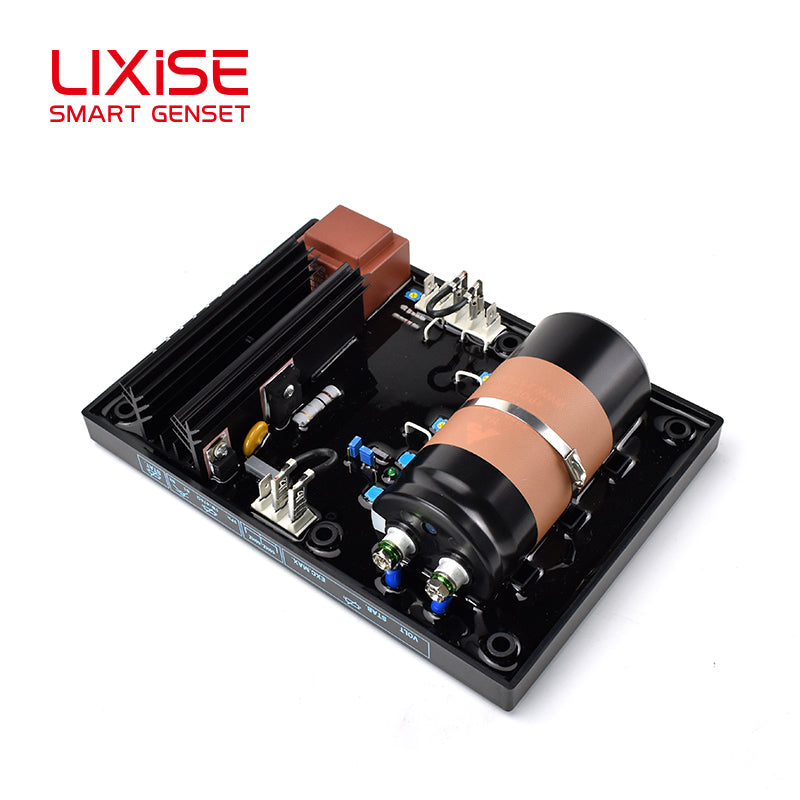

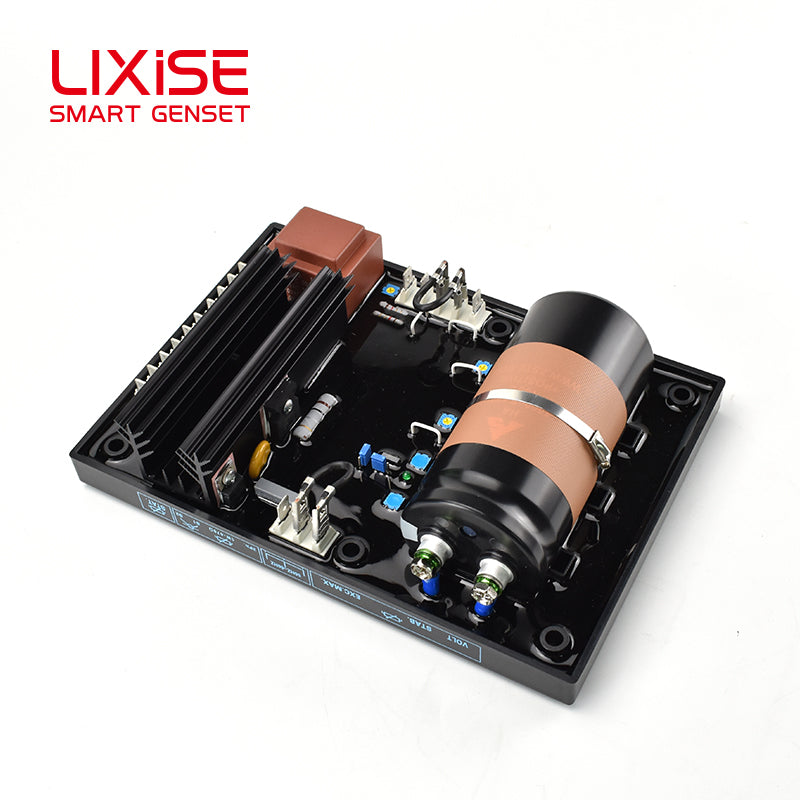

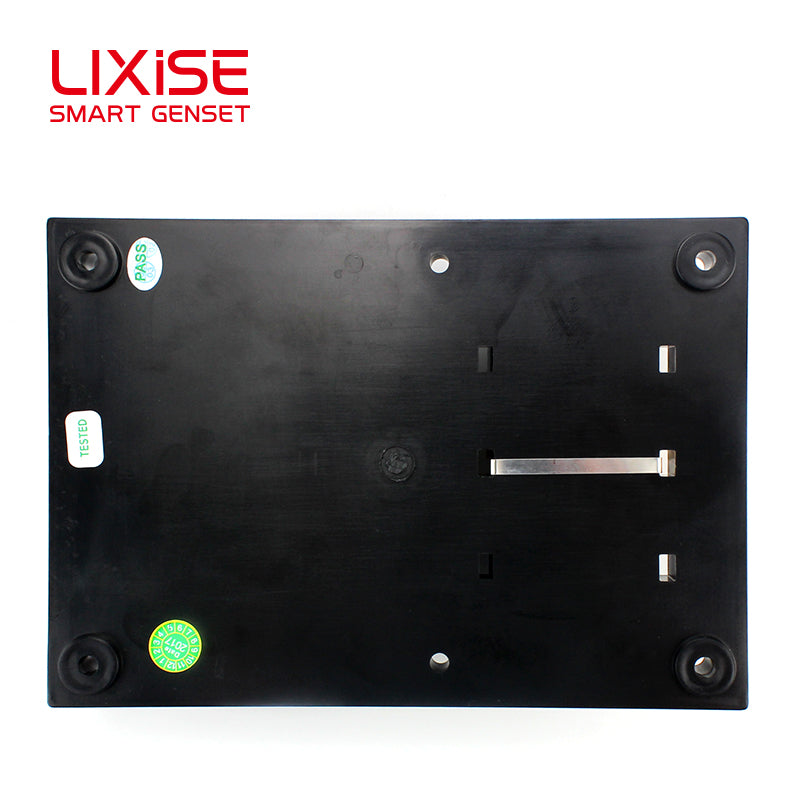

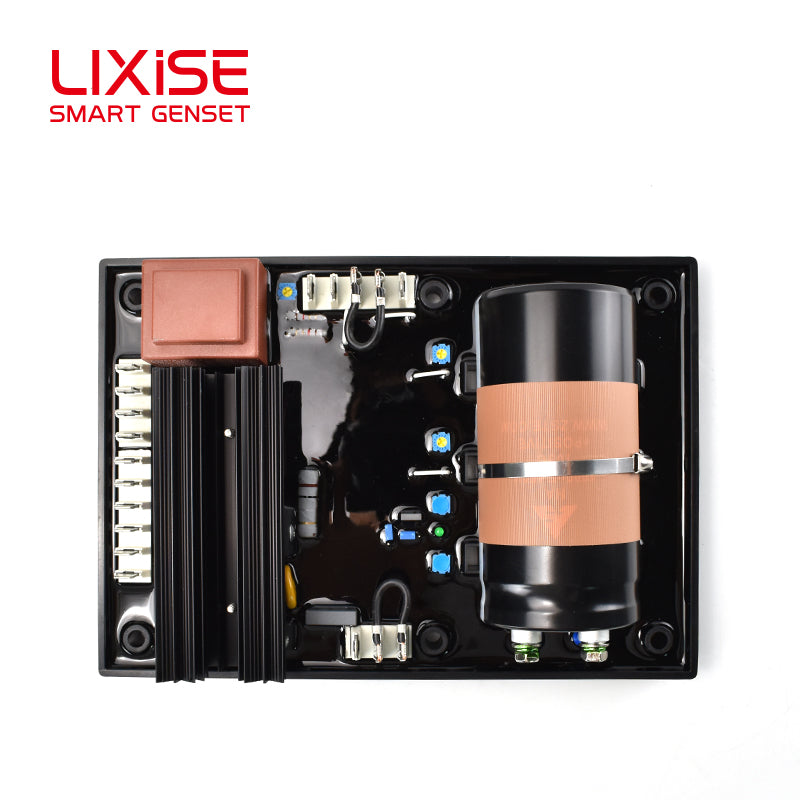

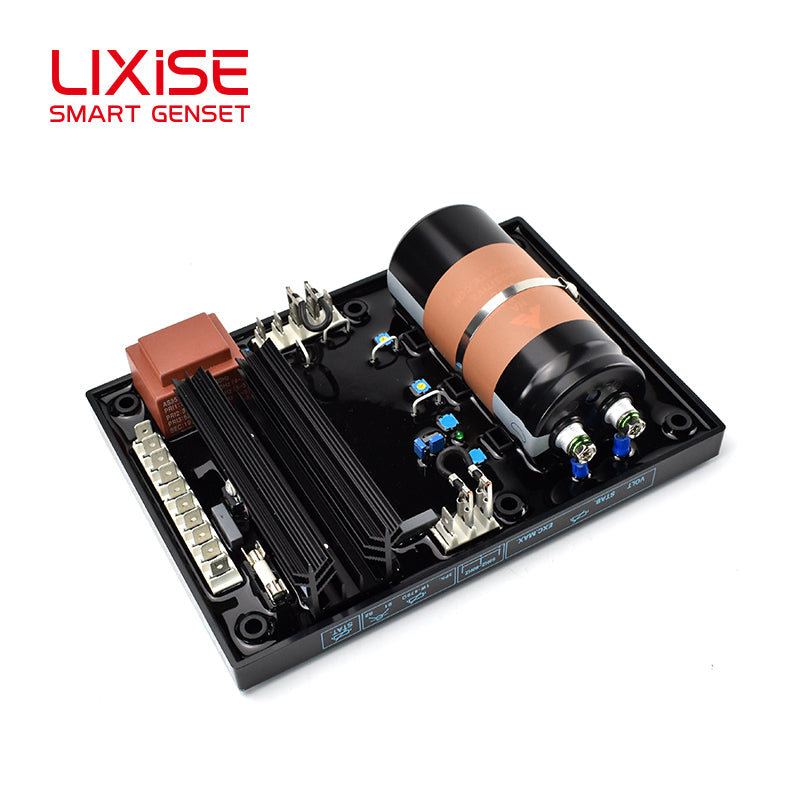

LIXiSE R448 Automatic Voltage Regulator

1. Product Introduction

R448 is a compact, high-performance fully encapsulated AVR designed for single-phase and three-phase brushless AC generators. Built with advanced circuit design and high-efficiency semiconductor chips, it realizes miniaturized layout without sacrificing operational stability, delivering excellent long-term reliability for industrial generator sets.
This regulator realizes stable voltage output via closed-loop control by connecting the generator’s main stator winding and field winding. It supports automatic voltage build-up using the generator’s residual magnetism, thanks to premium semiconductor components equipped in the power circuit. Standard load regulation reaches ±1.5%, while steady-state constant-speed voltage precision is upgraded to ±0.5% for ultra-smooth power supply.

Built-in under-speed protection and sensing loss protection prevent generator runaway and low-frequency damage, ensuring fully secure unattended operation.

2. Epoxy Resin Encapsulated Anti-Harsh Design

The entire circuit core is fully sealed with epoxy resin. This integrated packaging structure brings outstanding resistance against strong mechanical vibration, dust, moisture, temperature fluctuation and minor chemical corrosion. It performs steadily in construction sites, marine vessels, mining equipment and other severe working environments, greatly lowering failure rates and extending service life.

3. Expandable Modular Function for Multiple Working Demands

All R-series AVR models excluding R230 support optional auxiliary modules to expand functional capacity, satisfying advanced genset application requirements:
  • Add CT current transformer module for multi-generator parallel operation
  • Install power factor adjustment module for reactive power control
  • Match R726 voltage matching module for voltage synchronization
  • Equip R731 module to achieve full three-phase voltage detection

4. Wide Excitation System Compatibility

R448 perfectly matches AREP and PMG excitation systems widely used on industrial brushless generators. Its internal high-precision circuit dynamically adjusts excitation current in real time to maintain consistent generator output voltage under fluctuating load conditions.

5. Complete Electrical Performance Parameters

  1. Voltage Regulation Accuracy

    Steady-state precision: ±0.5% | Load regulation: ±1.5%
  2. Short-circuit Withstand Capability

    3 times rated excitation current, sustainable for 10 seconds (AREP & PMG excitation systems)
  3. Multi-range Voltage Sensing Input (Universal for 50Hz / 60Hz)

    95 ~ 140 VAC / 170 ~ 260 VAC / 340 ~ 520 VAC
  4. Ultra-Fast Dynamic Response

    Standard mode: 1s recovery for ±20% voltage deviation

    Fast response mode: Only 0.5s recovery for ±20% voltage deviation
  5. Remote Voltage Adjustment

    External potentiometer support, adjustable range ±5% rated voltage

6. Built-in Standard Safety Protection

  1. Under-speed Protection: Triggers voltage suppression when generator speed drops below preset threshold to avoid low-frequency power output
  2. Sensing Loss Protection: Safeguards generator from abnormal overvoltage when voltage sampling wire falls off or breaks

7. Application Scenarios

Industrial standby generators, marine generator sets, vehicle-mounted power units, mining equipment power supply, multi-unit parallel power stations, communication backup power and all brushless generators adopting AREP or PMG excitation.

8. Factory Quality Advantage

All LIXiSE R448 AVRs undergo full aging test and multi-item electrical inspection before shipment. Strict component screening and standardized production ensure 100% qualified finished products. We support bulk wholesale, customized labeling and packaging for global generator dealers, repair shops and equipment manufacturers.
