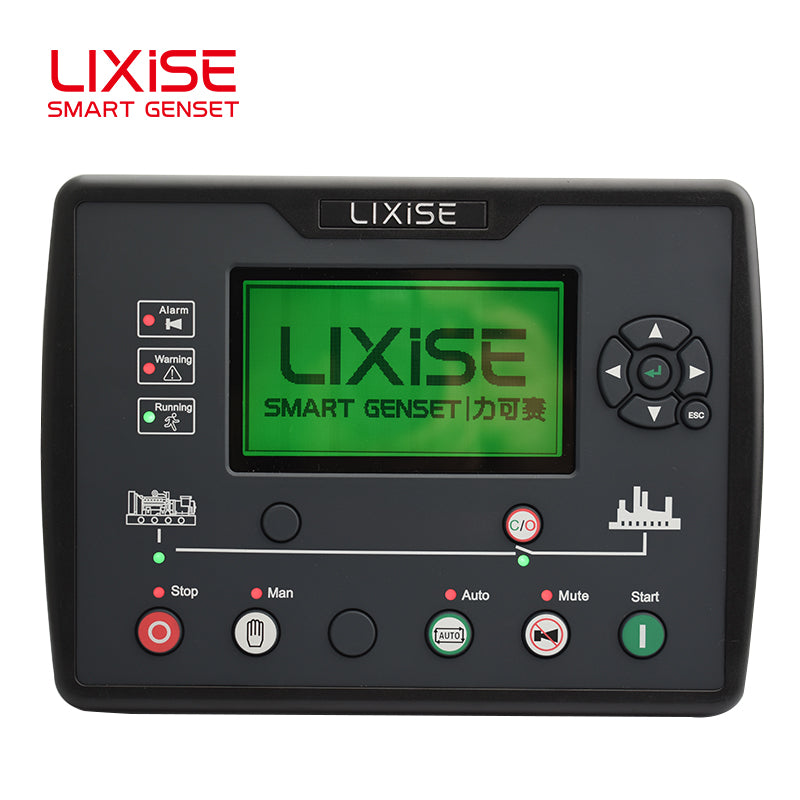

LIXiSE LXC6610NCAN intelligent genset controller is specially designed for automatic monitoring of medium and large single diesel generator sets, widely applied to generator rental fleets and telecom base station stationary power units. Built with 32-bit microprocessor and J1939 CAN bus interface, it supports automatic genset start/stop, full parameter measurement, safety alarm protection and three-remote control functions. Equipped with built-in hidden 4G antenna, it realizes all-in-one wireless remote management without extra external modules.
Core Feature Highlights
Built-in Hidden 4G Communication
Integrated 4G module with concealed antenna allows users to remotely operate gensets via mobile phones. Centralized management of multiple units is available through cloud platform for real-time data view and fault alerts anytime anywhere.

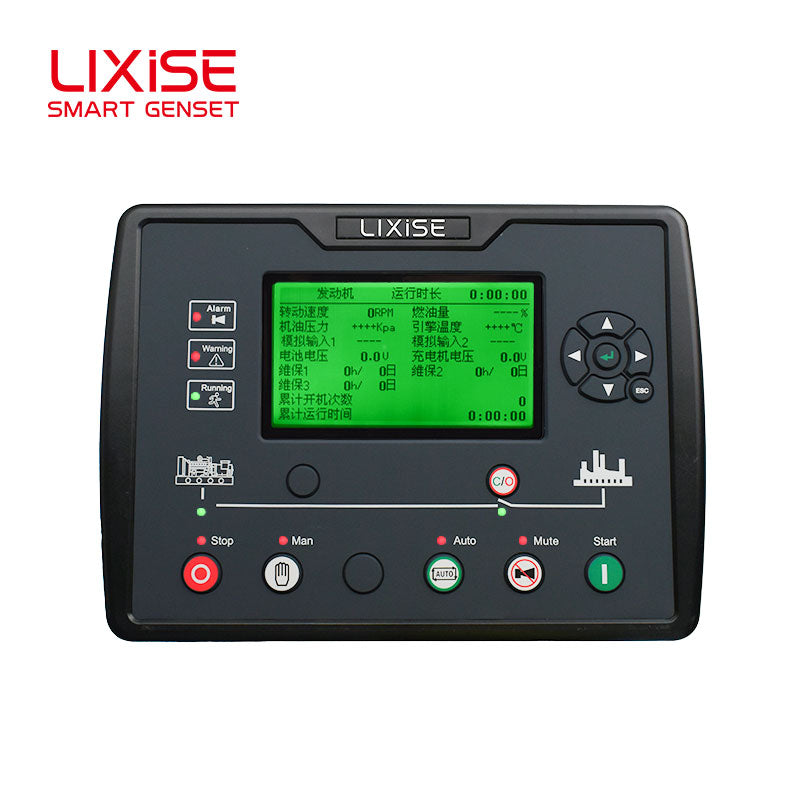

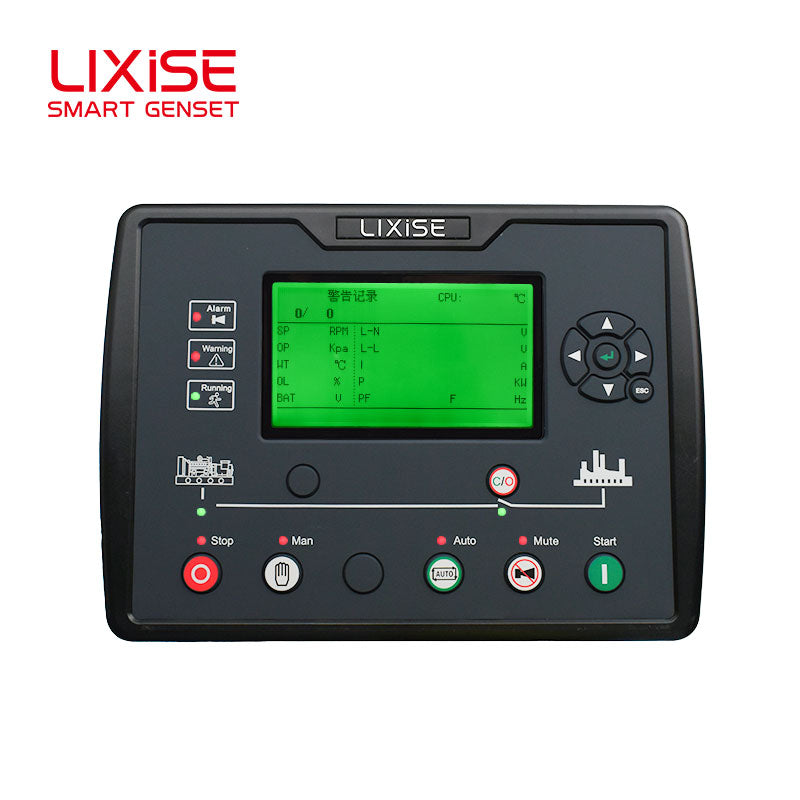

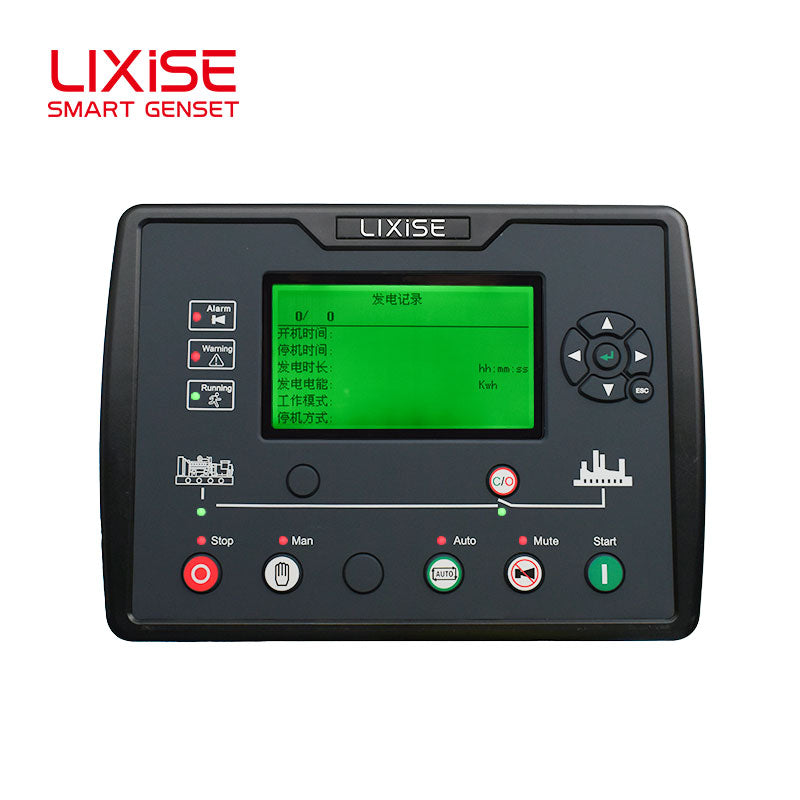

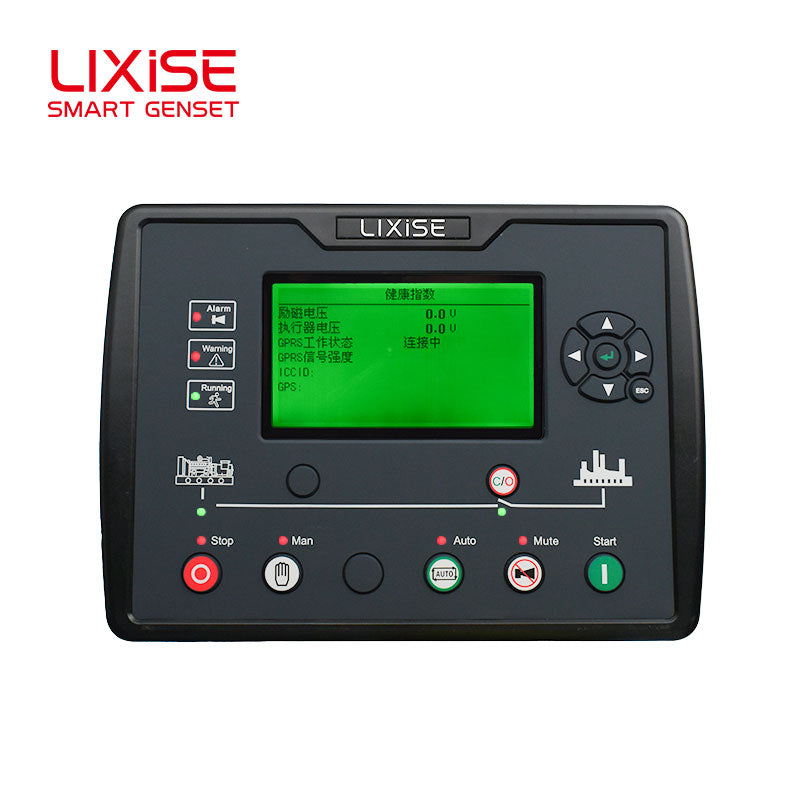

4.3-inch Multi-language LCD Screen
Large LCD display supports Chinese, English, Russian and Spanish. All critical operating data can be displayed on a single page without frequent page switching, with silicone waterproof keypad and scratch-resistant acrylic screen cover reaching IP55 waterproof grade.
Patented Black Box Fault Recording
Captures 18 seconds of full operating data right before faults occur, enabling technicians to replay operation data and quickly locate failure causes for efficient troubleshooting.
Complete Data Logging & Load Protection
Stores up to 200 accurate start-stop records with timestamps. Real-time average load rate calculation monitors unit operating load continuously to effectively prevent generator overload damage.
Intelligent Maintenance Reminder
Built-in real-time clock supports 3 groups of customizable maintenance cycles. The controller will send timely maintenance alerts once the running time reaches the preset threshold.
J1939 CAN Bus Interface
CAN communication port can directly connect to ECU of electronic injection engines to read engine original data, perfect for modern diesel and gas gensets.
Single-unit Automatic Control
Based on LXC6610 platform, it realizes fully automatic single genset operation and supports remote signal triggered auto start & auto stop for unattended power supply systems.
Additional Performance Advantages

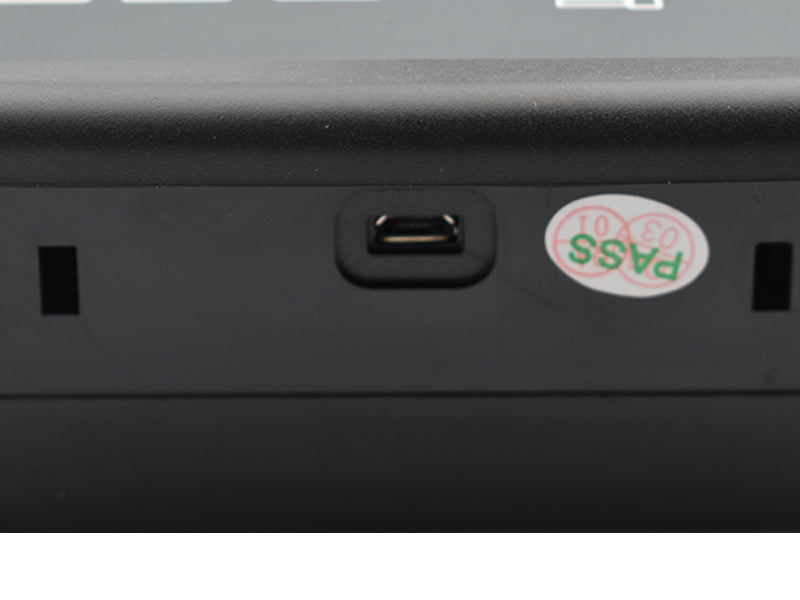

All parameters can be adjusted directly on the panel or remotely via USB, RS485 and 4G cloud. Data will be permanently stored in internal flash memory without loss after power failure. It provides comprehensive mains & generator voltage/frequency/phase sequence protection, 16A high-power relay outputs, wide 8~35VDC working voltage and modular flame-retardant ABS housing for easy embedded installation.
Application Scenarios
Generator rental fleets, telecom base station backup oil generators, highway service stations, real estate standby power, oilfield and port centralized genset monitoring projects.
