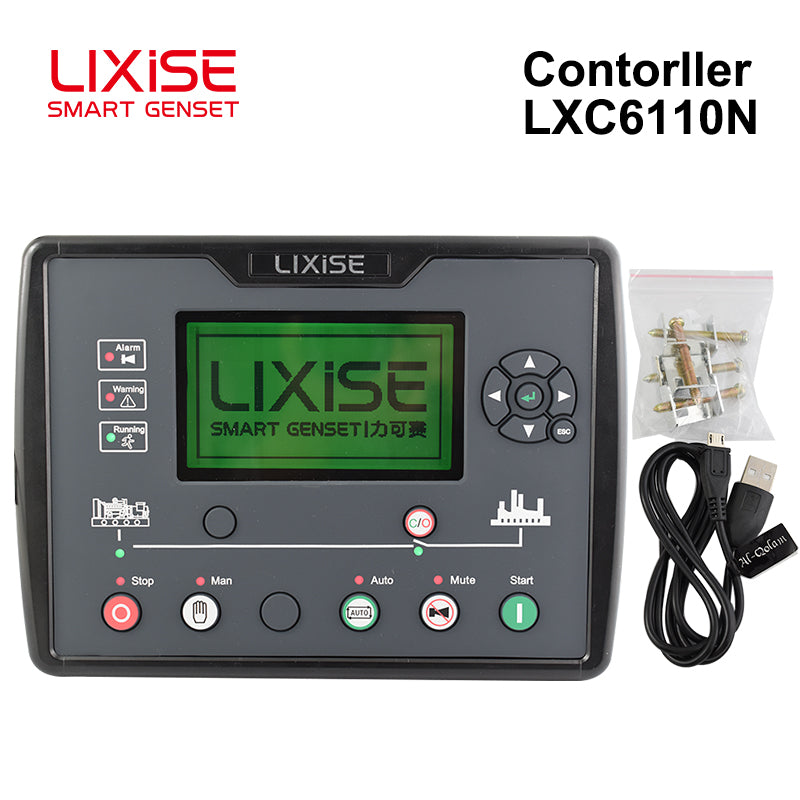

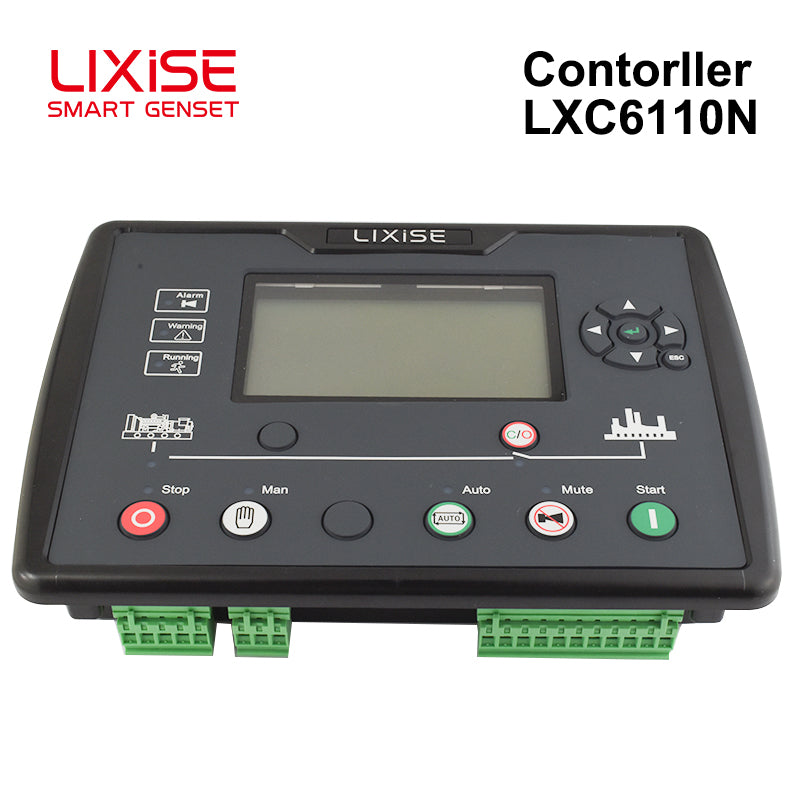

LIXiSE LXC6110N Intelligent Single Genset Controller Without CAN Bus, Auto Start Stop Generator Control Panel

Core Functions

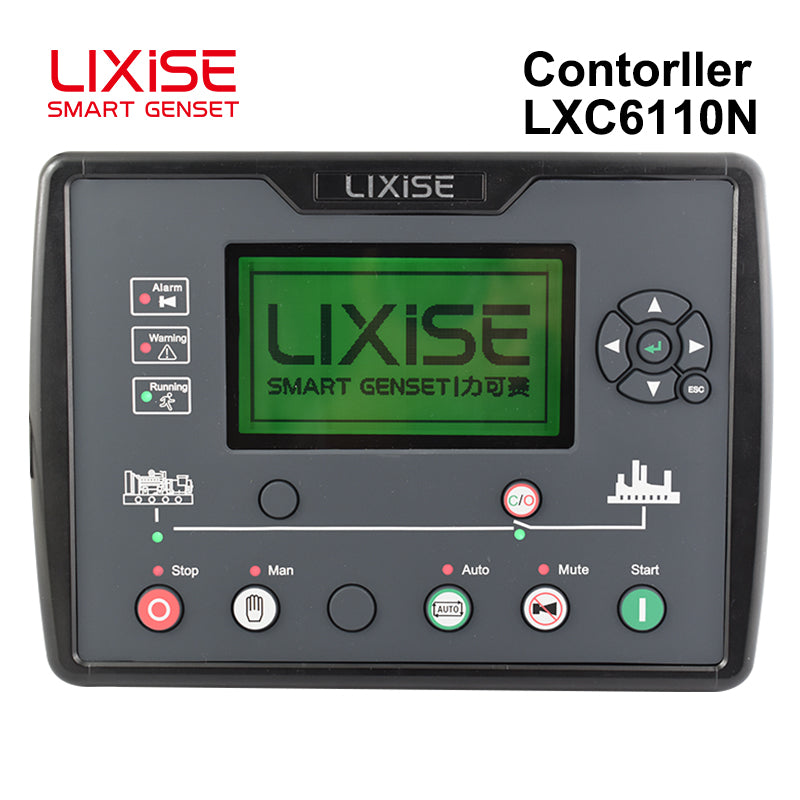

1. Large 240*128 LCD display, all key operational data shown on one page; supports Chinese, English, Russian and Spanish multi-language switching.
2. Real-time monitoring of mains & generator 3-phase voltage, current, frequency, power, engine oil pressure, coolant temperature and fuel level, with alarms for overvoltage, undervoltage, phase loss and reverse phase sequence.
3. Auto start/stop control for gensets, programmable real-time clock to set 2 groups of regular test run cycles for standby units.
4. Automatic running hour accumulation & 3 sets of maintenance reminder functions, trigger warning or shutdown when maintenance cycle expires.
5. Stores up to 200 historical fault records, capturing 25 real-time parameters at the moment of failure for quick troubleshooting.
6. Built-in installment password lock function, convenient for generator rental industry payment management; customizable startup screen with company logo, contact info and slogan.

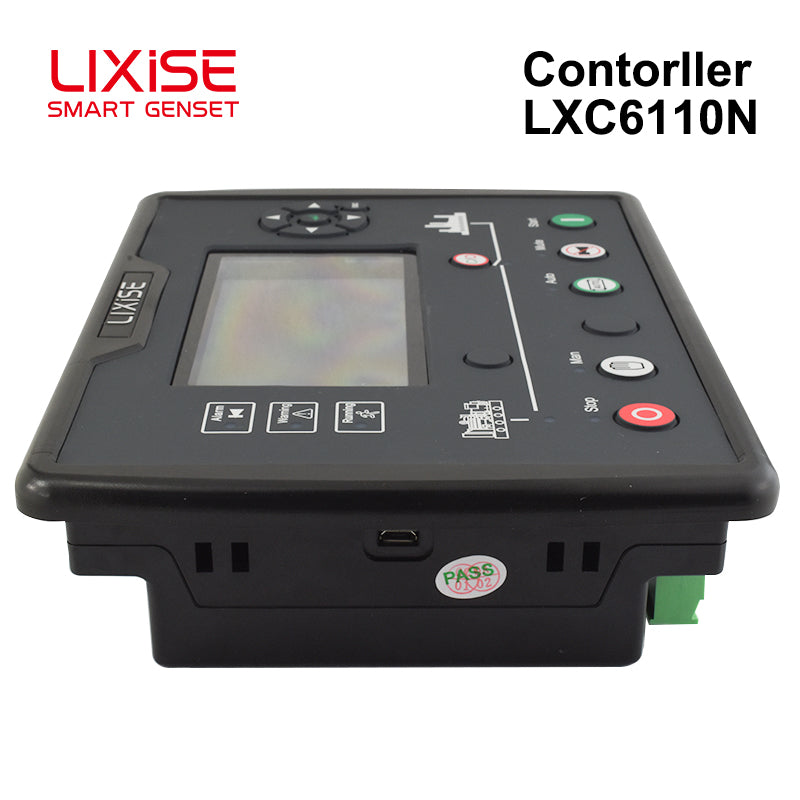

7. Standard USB & RS232 ports, optional RS485 Modbus communication to realize remote telemetry, telecontrol and fault data upload. SMS alarm function is available with matched LXI680 GPRS module for remote cloud monitoring.
8. 99% of parameters can be set directly via front panel buttons; all configurations are saved in internal EEPROM, no data loss after power failure.

Product Hardware Advantages

• Adopts industrial 32-bit ARM microcontroller, high hardware integration for stable long-term operation; ultra-wide DC 8~35V power supply, keeps working 3 seconds under instantaneous low voltage during cranking.
• IP55 waterproof front panel with rubber sealing gasket, scratch-resistant acrylic screen and high & low temperature resistant silicone keypad.

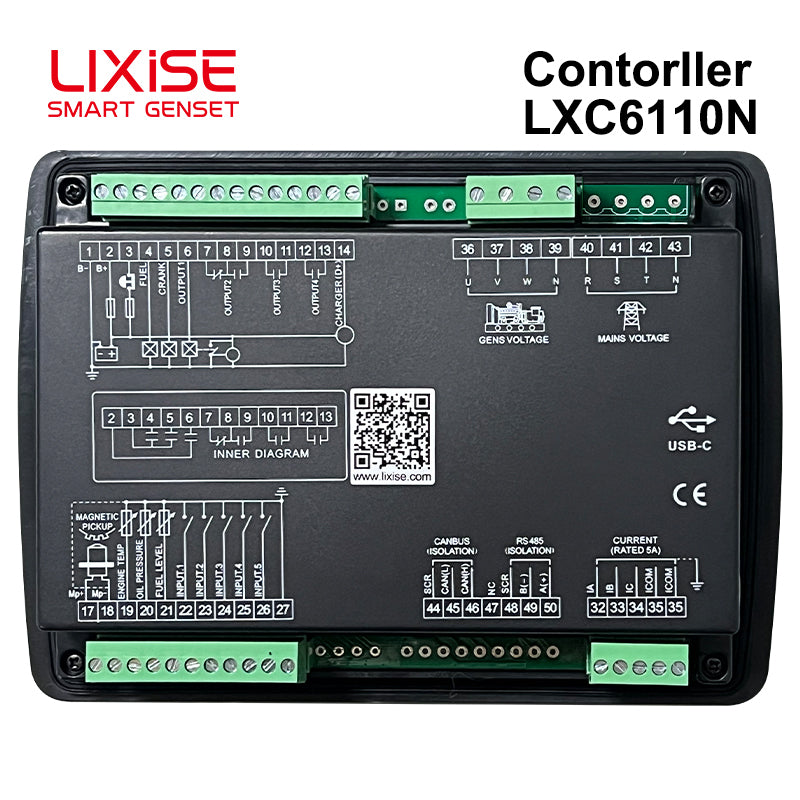

• Main control outputs adopt heavy-duty 16A relays plus 3 passive relay expansion ports, meeting complex customized control demands.

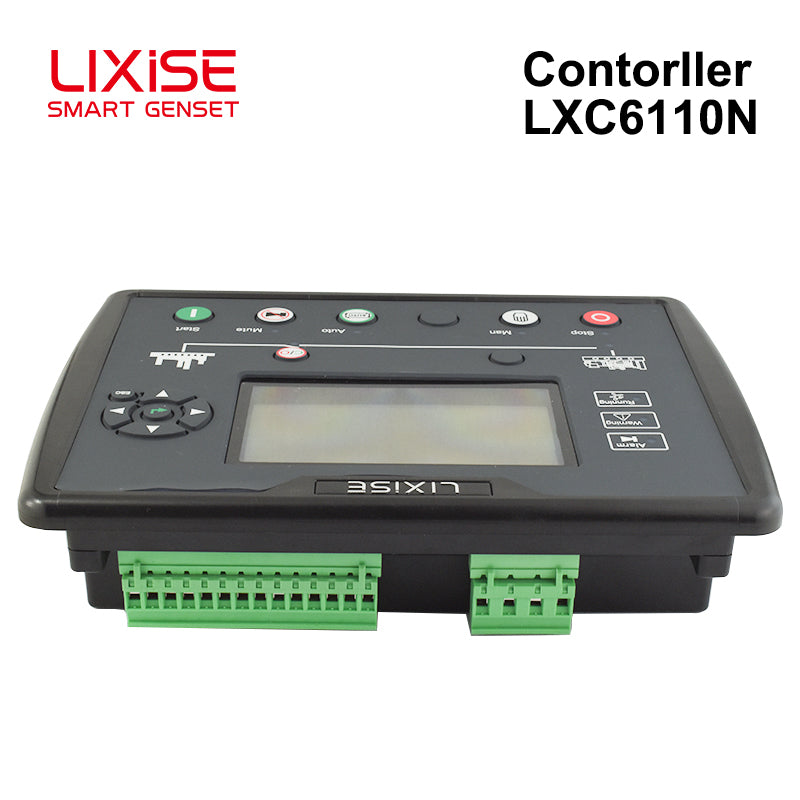

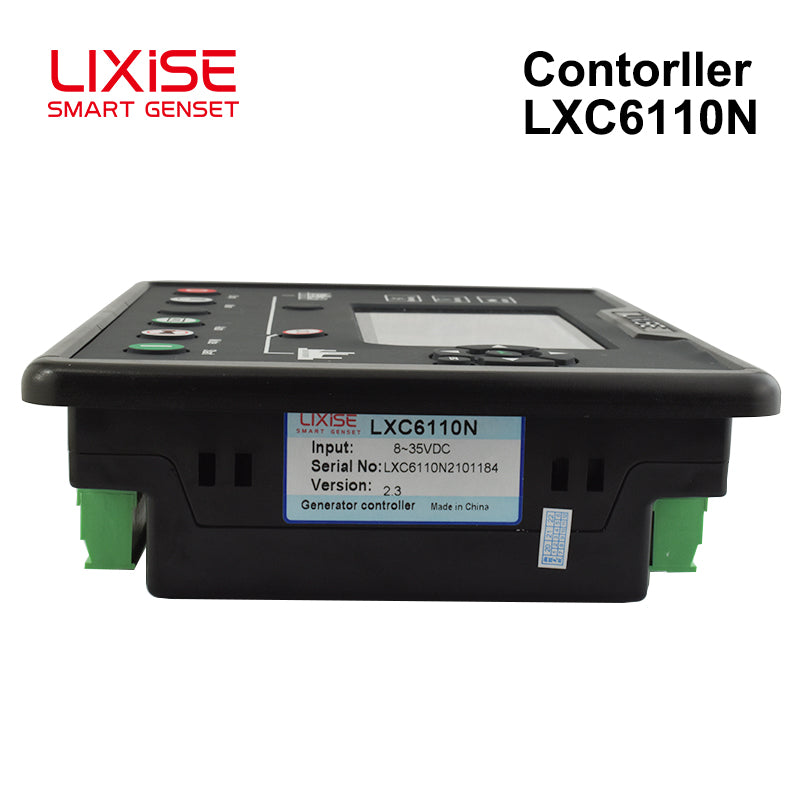

• Modular flame-retardant ABS housing with pluggable terminals, embedded mounting design for easy installation in generator control cabinets.

Important Disclosure

This model LXC6110N does NOT support CAN J1939 ECU communication, only compatible with mechanical pump engines. If you need CAN bus for electronically controlled diesel engines, please select LXC6110NC model. HS Code: 8537109090, 12-month factory hardware warranty provided.
