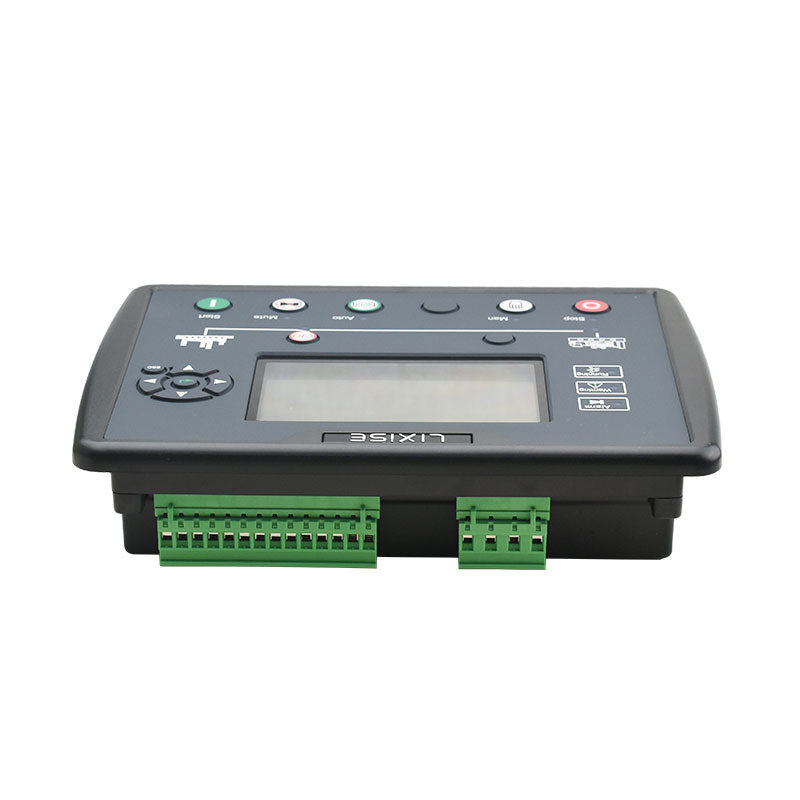

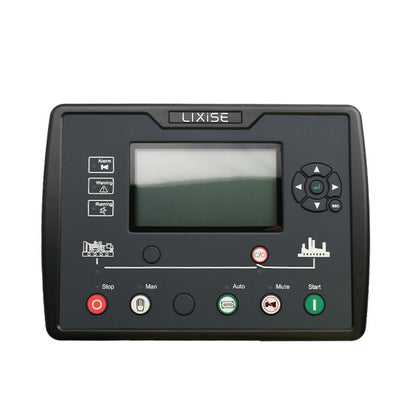

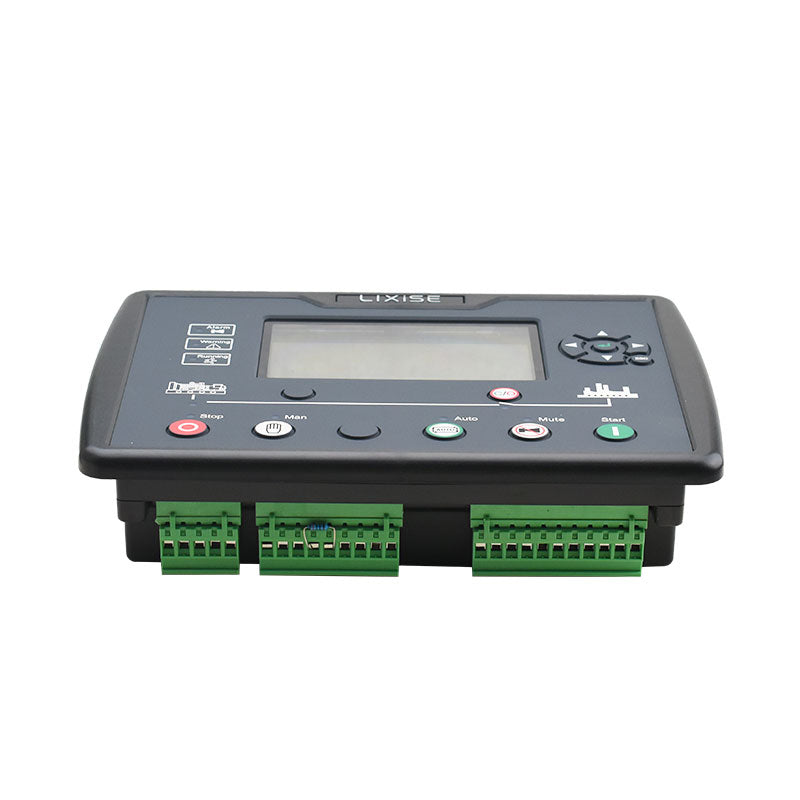

LIXiSE LXC6110CAN LCD Genset Controller | CAN Bus, IoT Remote Monitor, Installment Lock, IP55 Waterproof

Product Introduction

Core Functions

1. Average Load Factor Detection


   Calculate real-time average load rate to continuously monitor genset operating load and effectively prevent overload damage.

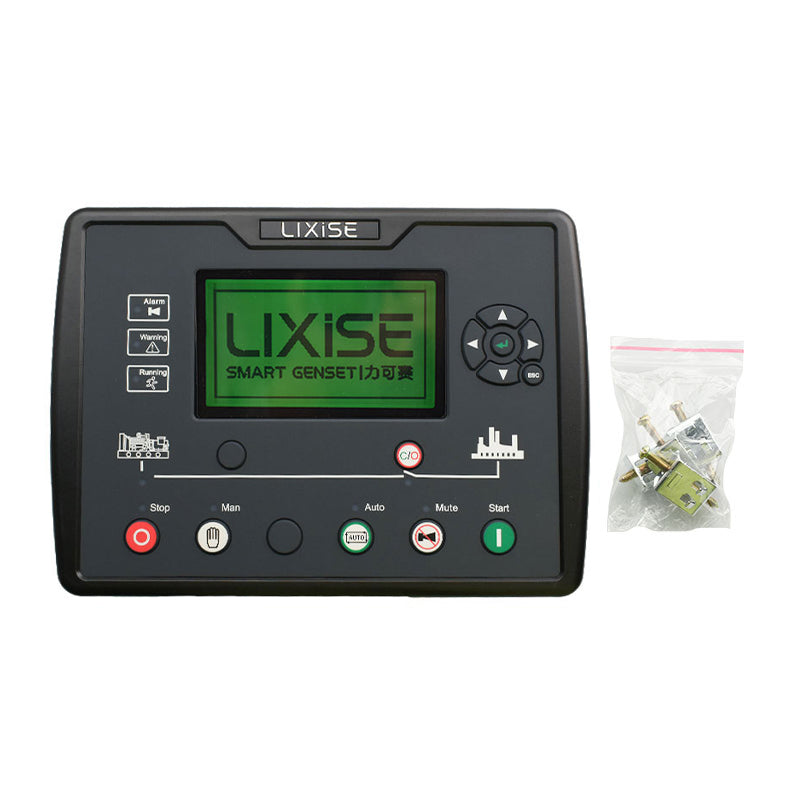

2. Customizable Startup Screen


   OEM custom boot page supports uploading company logo, enterprise name, contact info and brand slogans.
3. Installment Password Lock Management


   Password-based equipment lock system for genset rental anti-arrears control, remote lock/unlock available.
4. Auto Maintenance Reminder


   Automatically accumulate total running hours and trigger pop-up alerts when scheduled maintenance is due.
5. 240*128 Large LCD Display


   Most operational data displayed on a single screen to eliminate frequent page switching.
6. Multi-Language Support


   4 built-in switchable languages: Chinese, English, Russian, Spanish; custom language packs available.

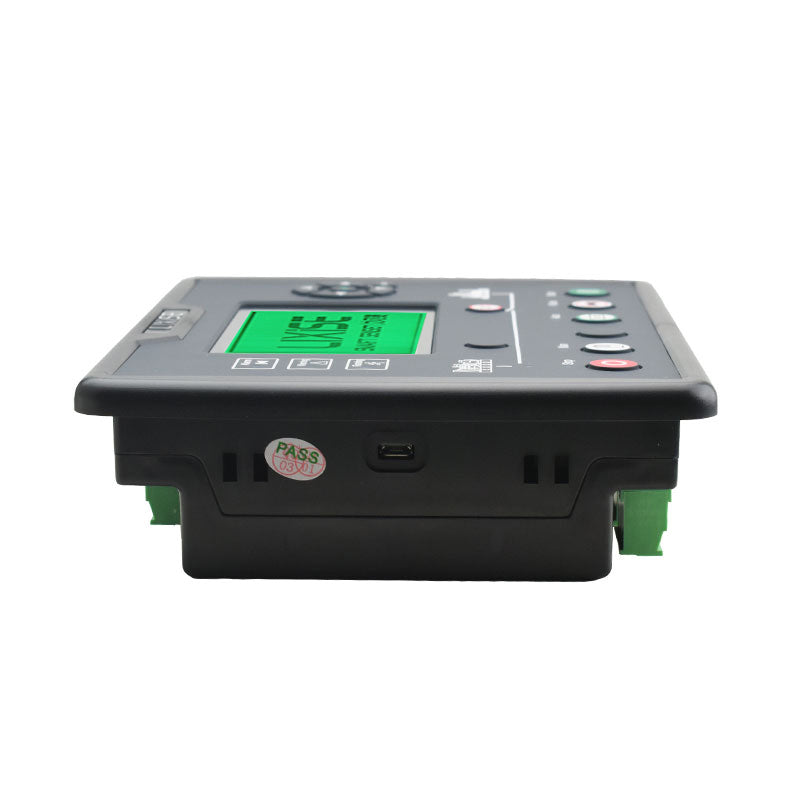

7. Plug-and-Play USB Interface


   Direct USB connection without extra adapters for fast parameter debugging.
8. 200 Sets of Fault Snapshot Records


   Capture 25 key operational parameters at the exact moment of fault occurrence to accelerate failure analysis and maintenance.
9. Programmable Timed Exercise Cycle via RTC


   Built-in real-time clock supports 2 independent auto weekly exercise schedules for idle unit regular testing.
10. Comprehensive Mains Fault Alarms


    Detect and alert mains overvoltage, undervoltage, overfrequency, underfrequency, phase loss and phase reversal.
11. Two-Tier Authority Password System


    Dual-level user permission separation for operator and administrator parameter modification access control.

Hardware & Performance Advantages

1. 32-bit ARM Microcontroller Core


   Highly integrated hardware architecture greatly improves overall operational stability and reliability.

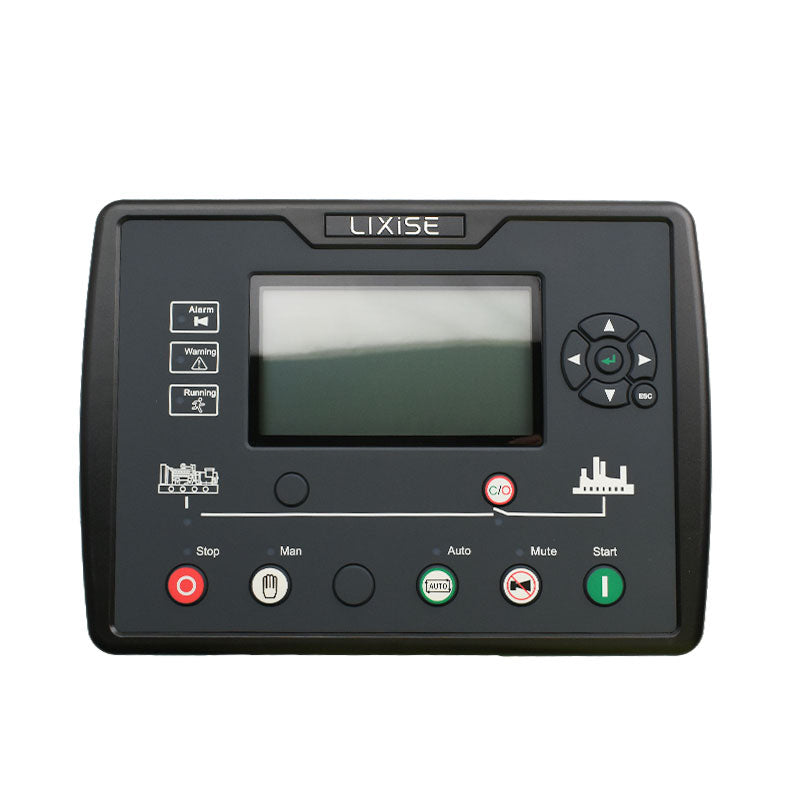

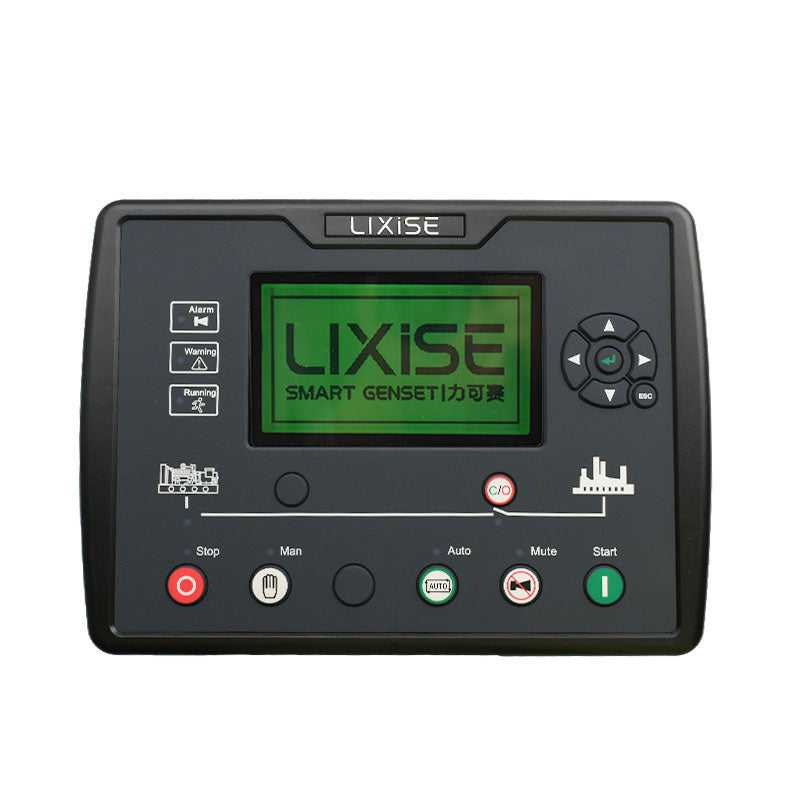

2. 240×128 Backlit LCD Screen


   Displays most parameters on one single page to avoid repeated page toggling for efficient inspection.
3. Multi-Channel Communication Interfaces


   Standard USB & RS232, optional RS485, plus CAN bus interface; all parameters adjustable via PC through any port. All settings saved in internal FLASH/EEPROM with zero data loss after power cut.
4. On-Site Quick Commissioning


   99% of adjustable parameters configurable directly on front panel without PC connection.
5. MODBUS Protocol & Three-Remote Control


   Supports MODBUS communication to realize remote measuring, remote signaling and remote control (Three-Remote functions).
6. SMS Alarm & IoT Remote Monitoring

• Automatic SMS alerts sent to up to 5 preset mobile numbers once alarms trigger; support SMS remote unit control and status inquiry.
• Advanced IoT remote monitoring via GPRS cellular network (requires optional LXI680 GPRS module), accessible anywhere with internet coverage.

7. Wide Compatibility Power Grid


   Compatible with 50/60Hz power systems: 3-phase 4-wire, 3-phase 3-wire, single-phase 2-wire, split-phase 3-wire (120/240V).
8. Full Electrical Data Collection & Protection


   Collect and display mains/generator 3-phase voltage, current, phase sequence, frequency, active/reactive power, power factor, energy and all engine sensor data.
   • Mains: Alarms for over/under voltage, over/under frequency, phase loss & reverse phase.
   • Generator: Full protection with alarm & shutdown for over/under voltage, over/under frequency, overcurrent, phase loss & reverse phase.
9. Multi-Type Sensor Compatibility


   3 fixed analog input channels for temperature, oil pressure and liquid level; multiple pre-set sensor curves + fully customizable sensor curves supported.
10. Complete Auto Control & ATS Function


    Automatic start/stop for diesel & gas gensets, automatic mains-generator ATS switchover, multi-fault sequential display for simultaneous warnings.
11. High-Capacity Relay Outputs


    Main outputs adopt 16A power relays; extra 3 passive relay outputs for complex system expansion.
12. Multi-Cycle Maintenance Schedule


    3 independent maintenance cycles configurable; support reminder warning or forced shutdown when service expires.

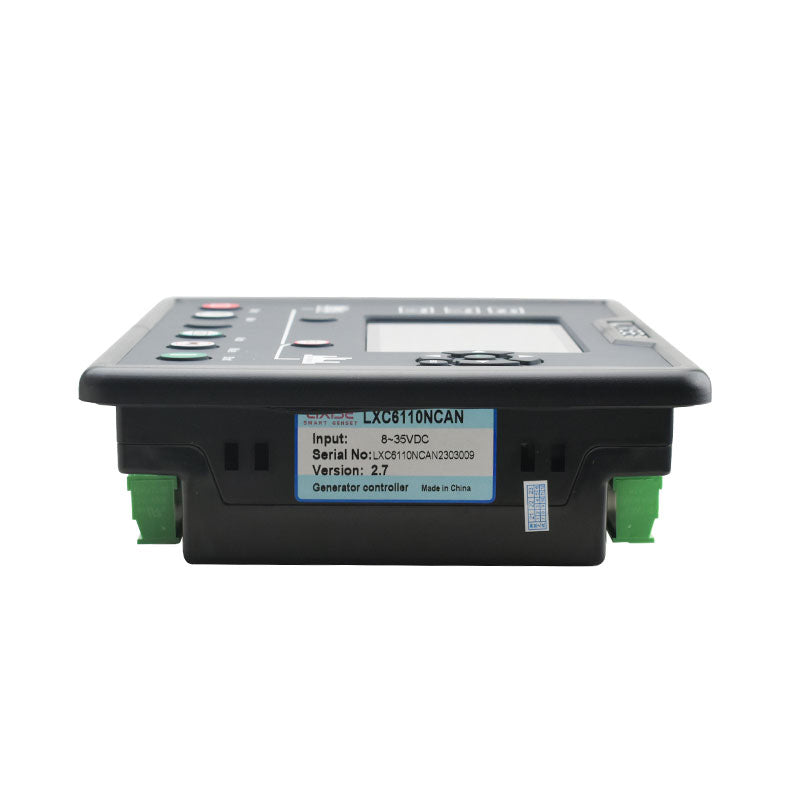

13. Ultra-Wide DC Operating Voltage (8~35VDC)


    Stable continuous operation for 3 seconds under instantaneous ultra-low cranking voltage during engine startup.
14. Dual Application Scenarios


    Works for generator/water pump sets, or standalone indicator meter mode (alarm & display only, no relay actuation).

Structural & Environmental Design

1. IP55 Waterproof Rating


   Rubber sealing between shell and control panel prevents water intrusion, reaching IP55 protection grade.
2. Scratch-Resistant Acrylic Screen Cover


   Hard acrylic protective layer with superior wear and anti-scratch performance.
3. Silicone Buttons & Panel


   Wide temperature adaptability and enhanced water resistance for harsh working environments.
4. Modular Flame-Retardant ABS Housing

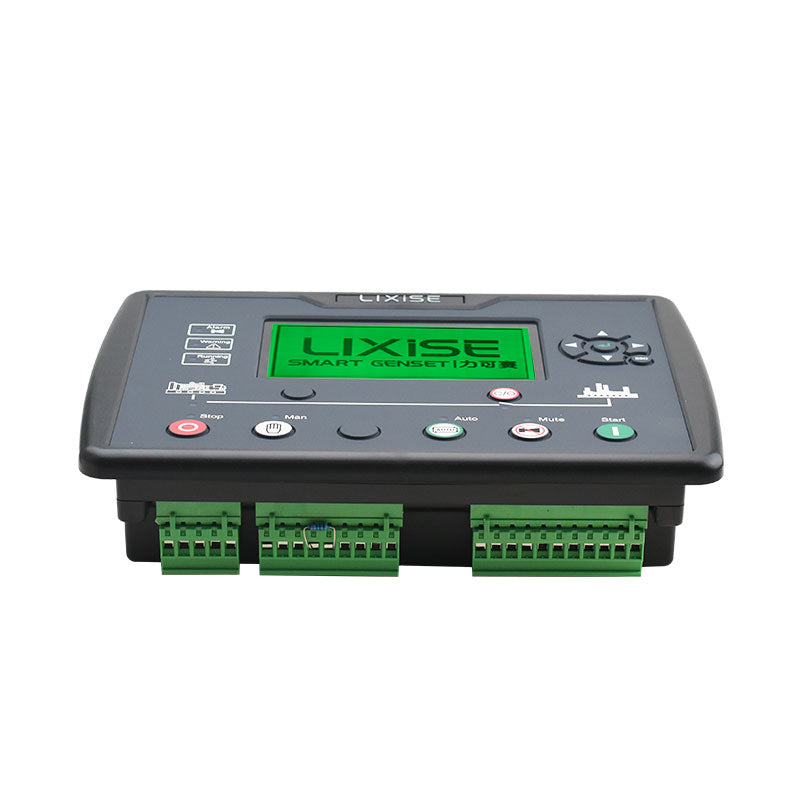

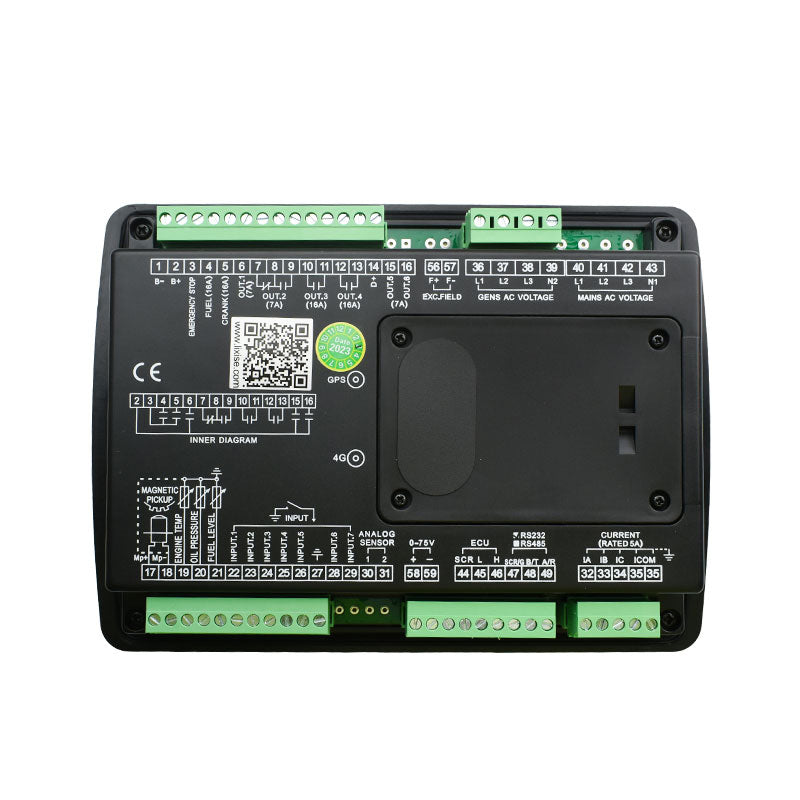

   Pluggable terminal blocks, embedded mounting design, compact structure for easy installation.
